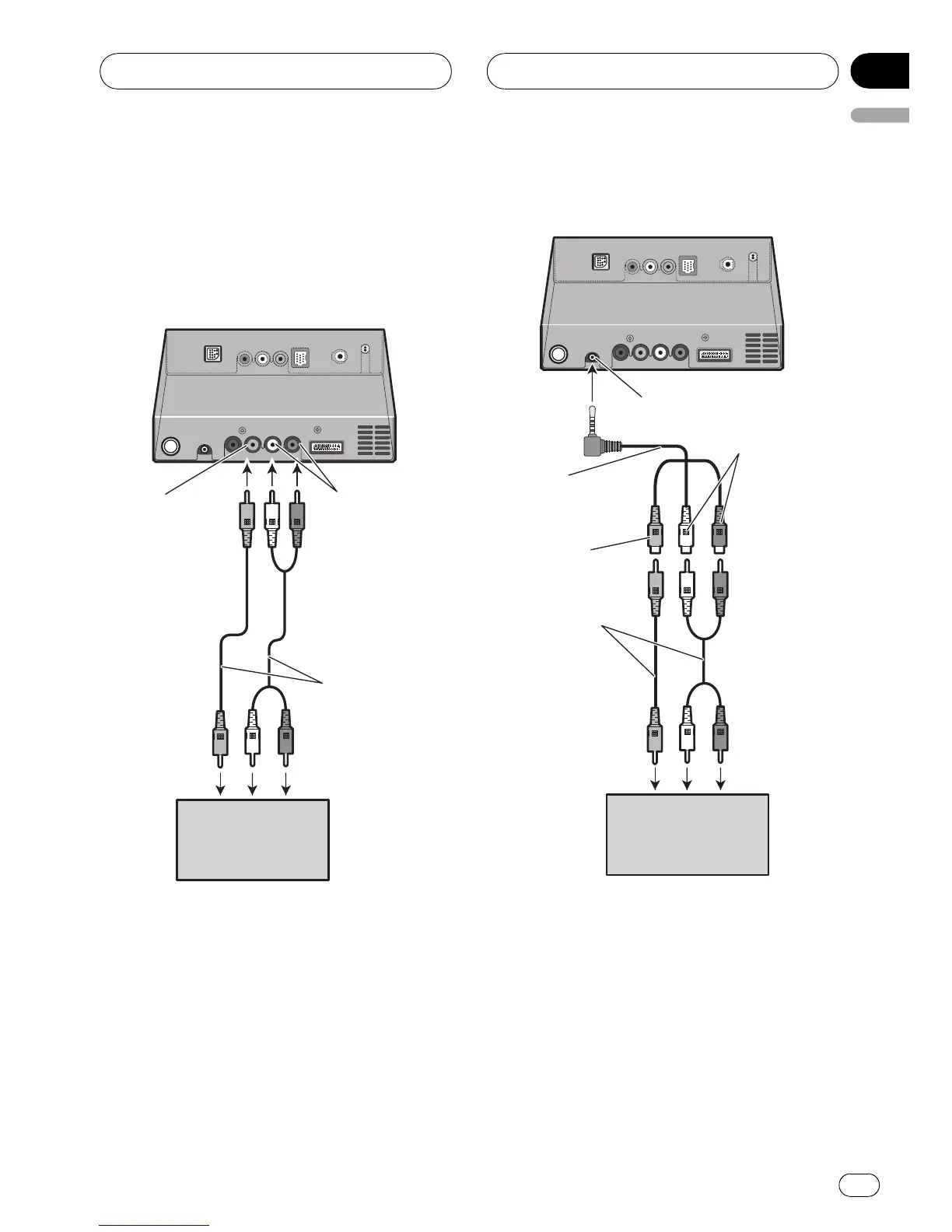

When connecting the
external video component
When using the AV-1 Input
To audio outputs
RCA cables
(sold separately)
To video output
White, Red
(AUDIO IN)
Yellow
(VIDEO IN)
The hide-away unit
External
component
(sold separately)
video
! It is necessary to set “AV1 Input” in
“System” to “Video” when connecting the
external video component. (For details,
refer to the Operation Manual.)
When using the AV-2 Input
CD-RM10
(sold separately)
The hide-away unit
RCA cables
(sold separately)
Yellow
White, Red
External
component
(sold separately)
video
To video output
To audio outputs
Mini jack (AV 2)
! It is necessary to set “AV2 Input” in
“System” to “Video” when connecting the
external video component. (For details,
refer to the Operation Manual.)
