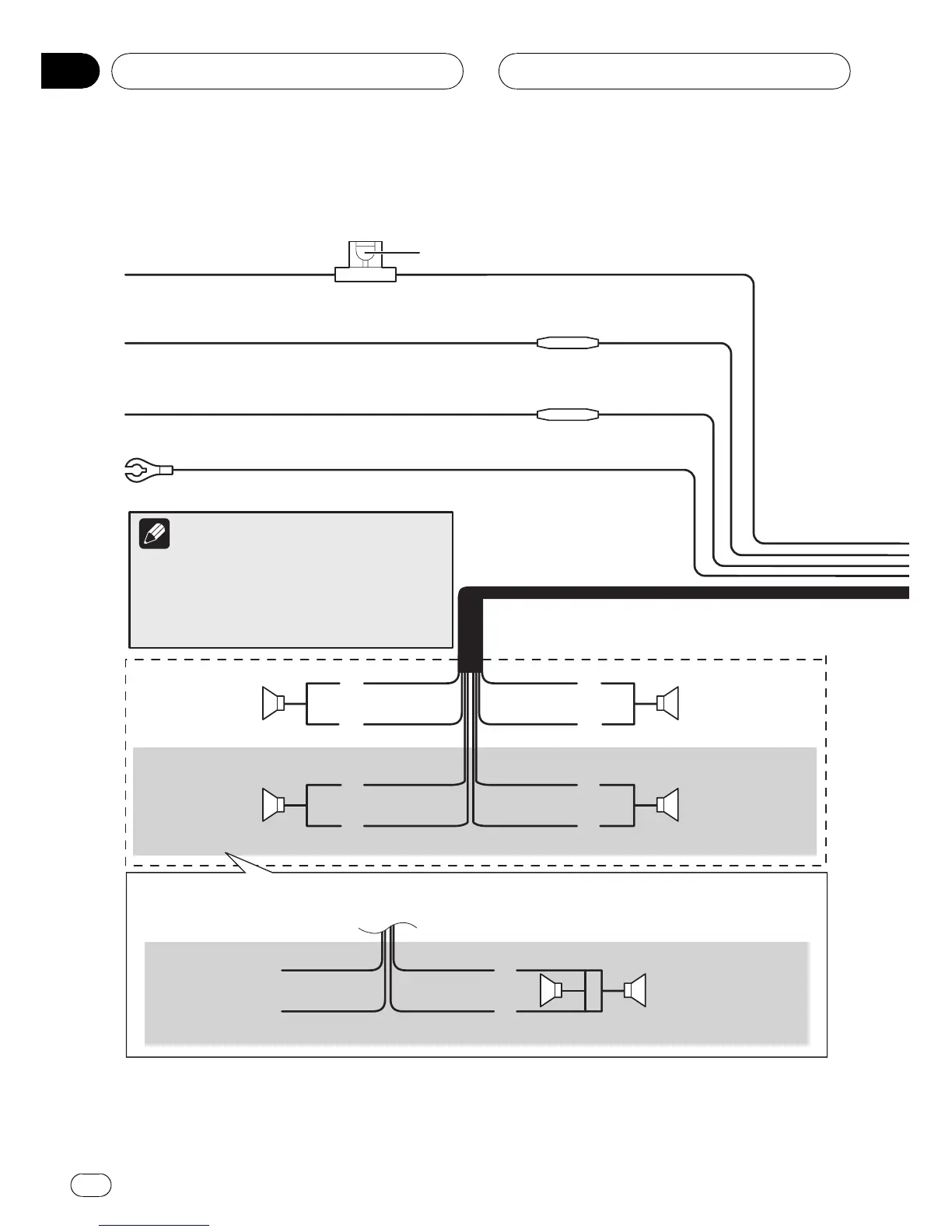

Connecting the power cord (1)
White
White/Black
Gray
Gray/Black
Green
Green/Black
Violet
Violet/Black
Front speakerFront speaker
Left Right
Rear speaker or
Subwoofer (4
Ω
)
Rear speaker or
Subwoofer (4
Ω
)
Violet
Violet/Black
Green
Green/Black
Not used.
Subwoofer (4
Ω
)
2
When using a subwoofer of 70 W (2
Ω
), be sure to connect with violet and violet/black leads of this
navigation system. Do not connect anything with green and green/black leads.
Yellow
To terminal always supplied with power
regardless of ignition switch position.
Red
To electric terminal controlled by ignition
switch (12VDC) ON/OFF.
Orange/White
To lighting switch terminal.
Black (ground)
To vehicle (metal) body.
With a 2 speaker system, do not connect anything to
the speaker leads that are not connected to speakers.
When a subwoofer is connected to this navigation
system instead of a rear speaker, change the rear
output setting in the Initial Setting. (Refer to the
Operation Manual.) The subwoofer output of this
navigation system is monaural.
Note
Fuse resistor
Fuse resistor
Fuse holder
Fuse (10 A)
Connecting the System
En
12
Section
03
To Next Page
