Pioneer AVIC-N4 - Connecting the Multi-Channel Processor

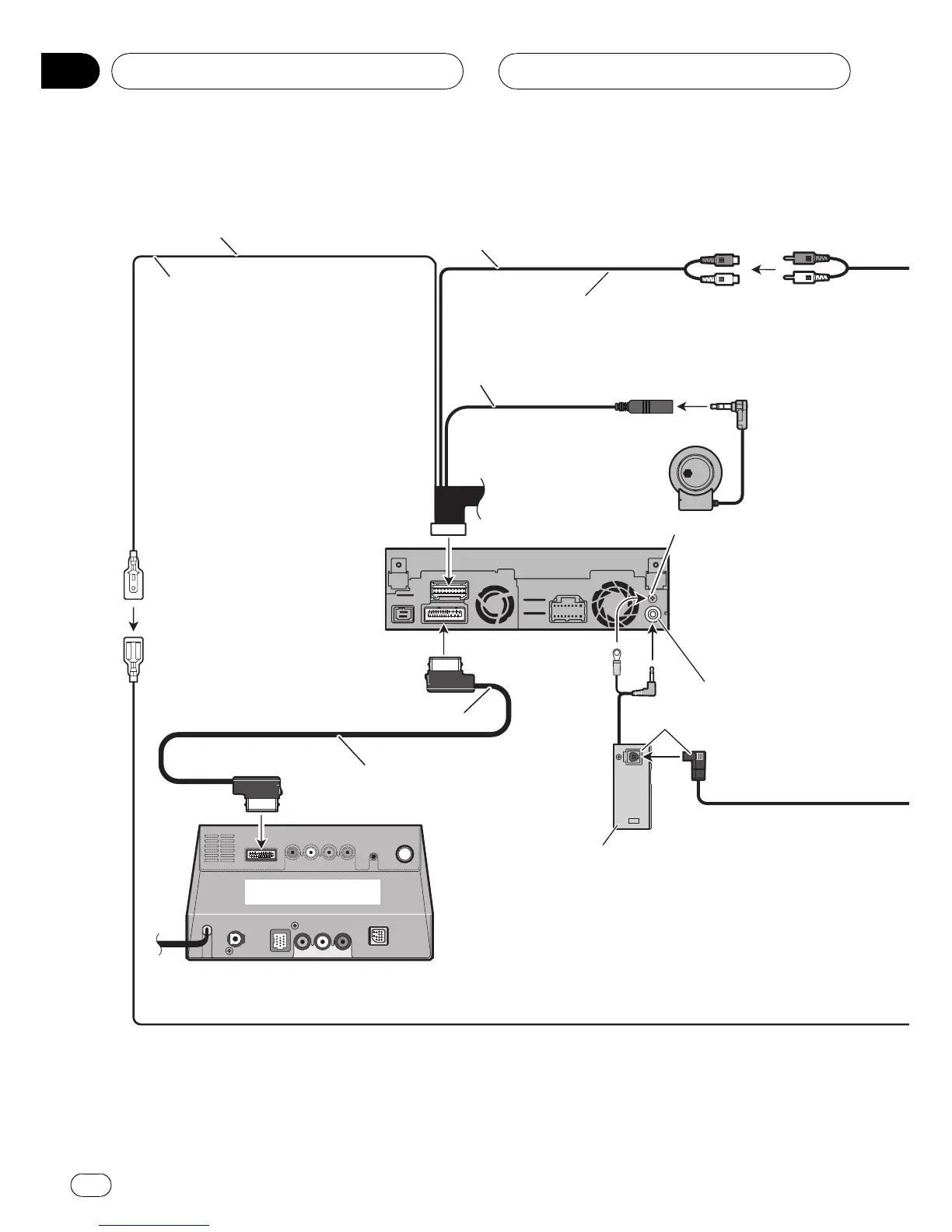

Connecting the multi-channel processor
The hide-away unit
GUIDE SP OUTPUT
The display unit
20 cm (7-7/8 in.)
30-pin cable (supplied)
Light gray
(Digital output)
Black
20 cm (7-7/8 in.)
23 cm (9 in.)
Secure the connector
using the screw
supplied with multi-
channel processor.
Subwoofer output or non-fading output
(SUBWOOFER OUTPUT or
NON-FADING OUTPUT)
Yellow/Black (GUIDE ON)
When combining this navigation system
with the multi-channel processor system,
connect this lead to yellow/black lead on
the multi-channel processor controller
unit. In this way, when the mute signal is
output from this navigation system, the
audio volume is automatically muted or
attenuated.
Yellow/Black
3 m (9 ft. 10 in.)
Guide speaker
(e.g.CD-TS37GP)
(sold separately)
Optical cable connection box
(supplied with multi-channel
processor)
Connecting the System
En
10
