! When the ignition switch is turned on (ACC
ON), a control signal is output through the
blue/white lead. Connect to an external
power amp’s system remote control term-
inal (max. 300 mA 12 V DC). The control sig-
nal is output through the blue/white lead,
even if the audio source is switched off.
! When an external power amp is being used
with this system, be sure not to connect
the blue/white lead to the amp ’s power
terminal. Likewise, do not connect the blue
lead to the power terminal of the auto an-
tenna. Such connection could cause exces-
sive current drain and malfunction as well
as damage to the auto antenna of the
vehicle.

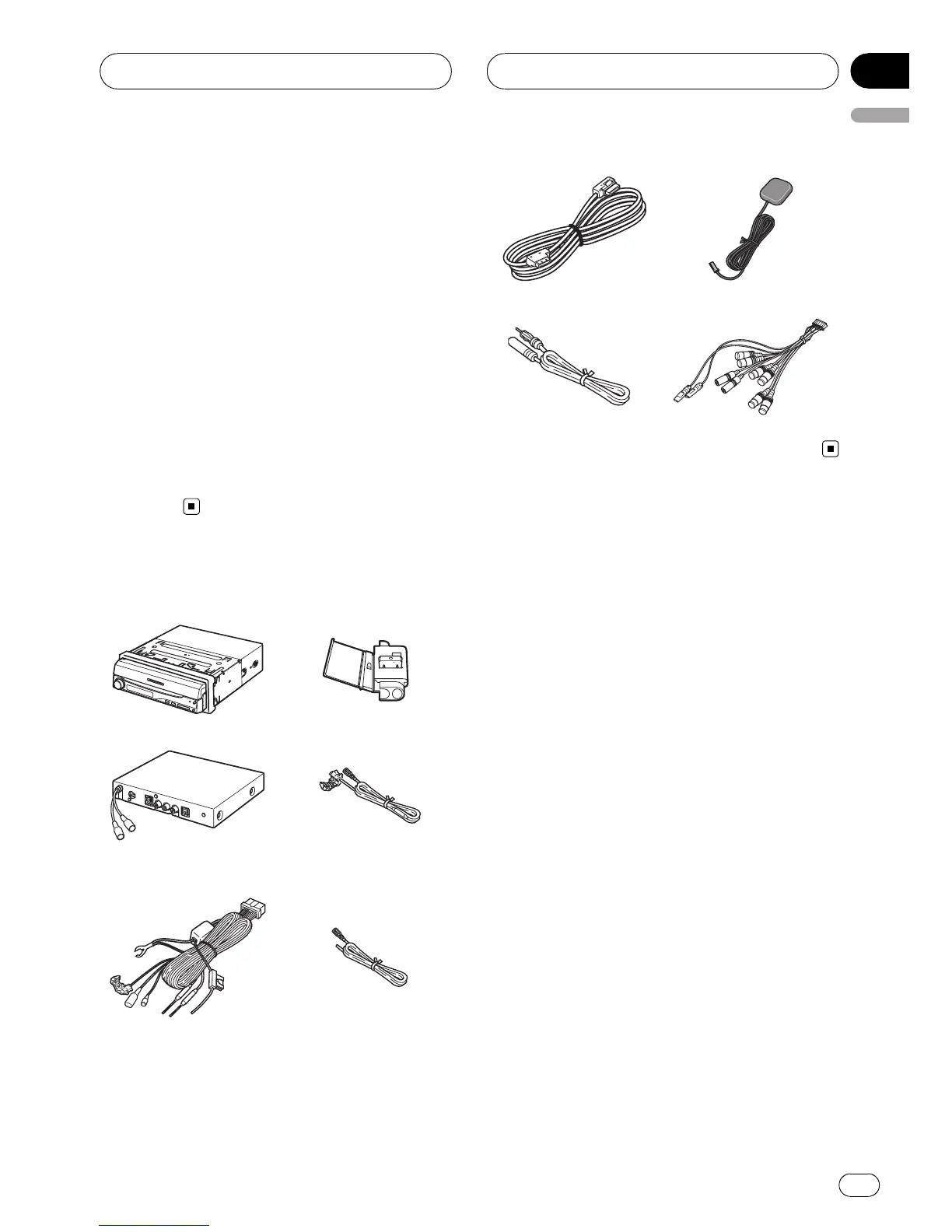

Parts supplied
The display unit Connector
The hide-away unit Extension lead
(for reverse signal)
Power cord Extension lead
(for speed signal)
30-pin cable GPS antenna
Extension antenna
cable
RCA connector
