Before installing this
product
! This product is for vehicles with a 12-volt
battery and negative grounding. Check the
battery voltage of your vehicle before instal-
lation.

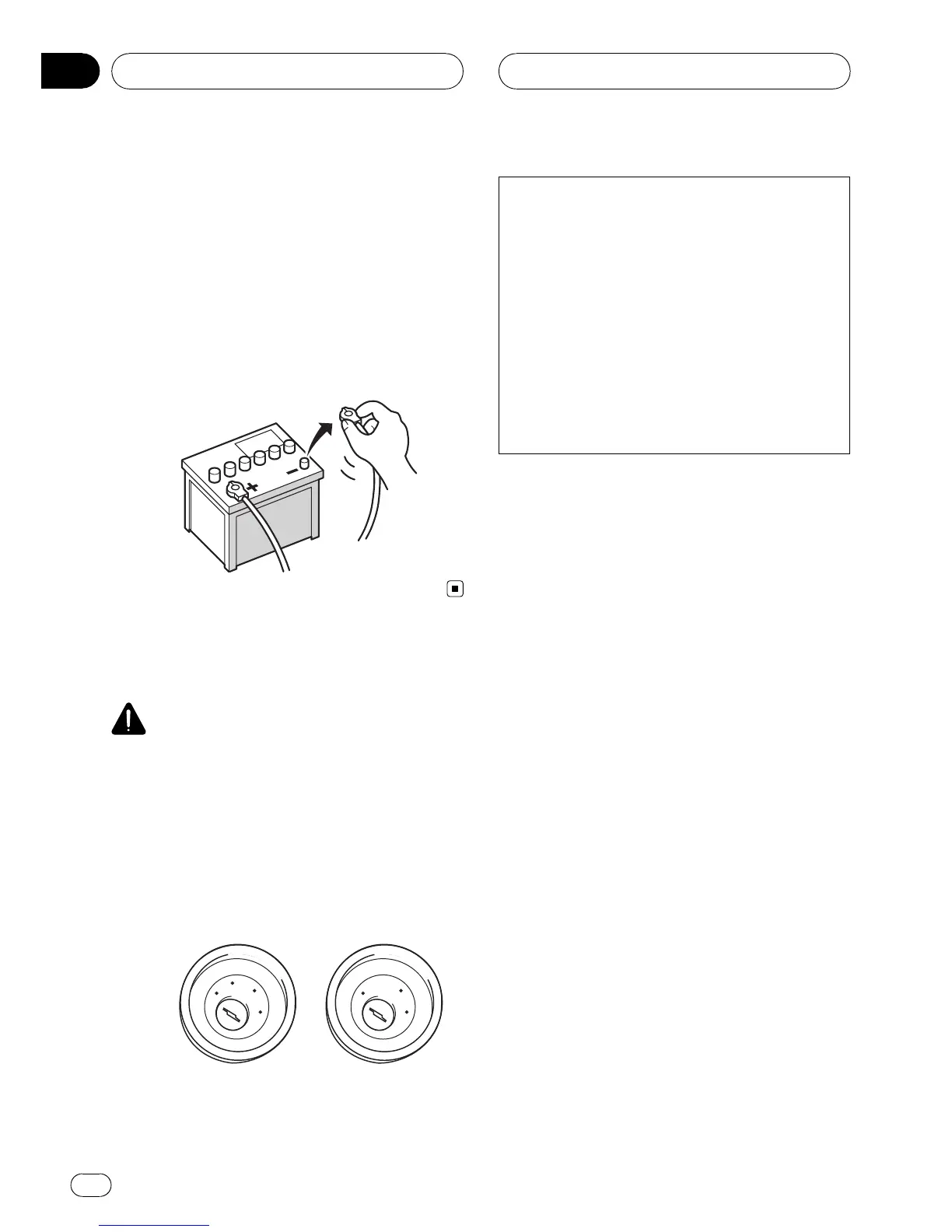

! To avoid shorts in the electrical system, be
sure to disconnect the (–) battery cable be-
fore beginning installation.
To prevent damage
WARNING
! When replacing the fuse, be sure to only
use a fuse of the rating prescribed on the
fuse holder.
— When disconnecting a connector, pull the
connector itself. Do not pull the lead, as
you may pull it out of the connector.
— This product cannot be installed in a vehi-
cle that does not have an ACC (accessory)
position on the ignition switch.
A
C
C
O
N
S
T
A
R
T
O
F
F
O
N
S
T
A
R
T
O
F
F
ACC position No ACC position
! When the “Antenna Control” mode is set
to “Radio”, the vehicle’s antenna can be
stowed or turned off by following the in-
structions below.
— Change the source from radio (AM or
FM) to another source
— Turn the source off
— Turn off the ignition switch (ACC OFF)
! If the “Antenna Control” mode is set to
“Power”, the vehicle’s antenna can be
stowed or turned off only when the ignition
switch is turned off (ACC OFF).
! To avoid short-circuiting, cover the discon-
nected lead with insulating tape. It is espe-
cially important to insulate all unused
speaker leads, which if left uncovered may
cause a short circuit.
! Attach the connectors of the same color to
the corresponding colored port, i.e., blue
connector to the blue port, black to black,
etc.
! Refer to the owner’s manual for details on
connecting the power amp and other units,
then make connections accordingly.
! Since a unique BPTL circuit is employed,
do not directly ground the * side of the
speaker lead or connect the * sides of the
speaker leads together. Be sure to connect
the * side of the speaker lead to the *
side of the speaker lead on this navigation
system.
! If the RCA pin jack on this product will not
be used, do not remove the caps attached
to the end of the connector.
! Never connect speakers with an output rat-
ing of less than 50 W channel or impe-
dance outside of the 4 ohms to 8 ohms
specifications to your navigation system.
Connecting speakers with output and/or
impedance values other than those noted
here may result in the speakers catching
fire, emitting smoke, or becoming da-
maged.
Connecting the System
En
6
Section
03
