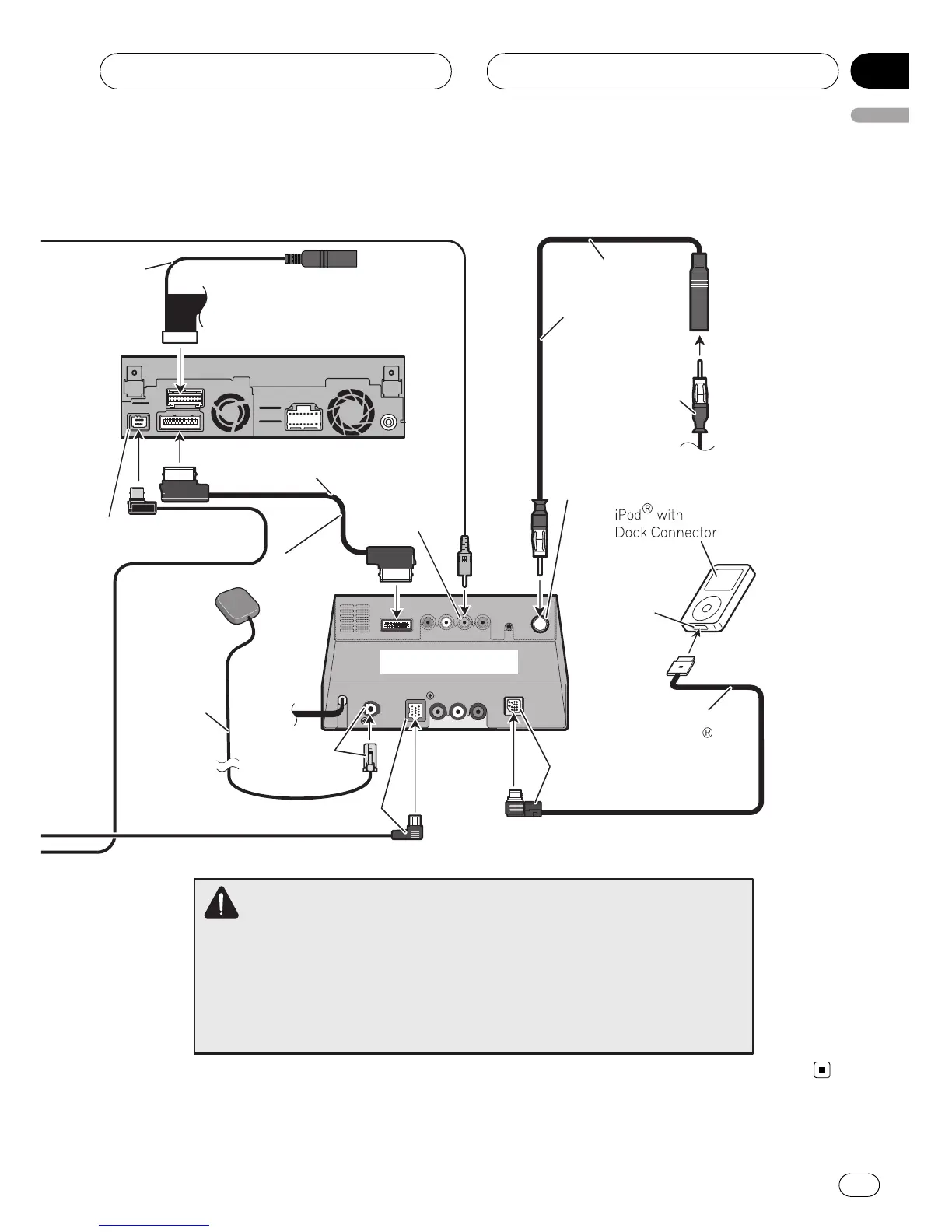

The hide-away unit
WARNING
• To avoid the risk of accident and the potential violation of applicable laws, this
product should never be used while the vehicle is being driven except for
navigation purposes. And, also Rear Displays should not be in a location where it
is a visible distraction to the driver.
• In some countries or states, the viewing of images on a display inside a vehicle
even by persons other than the driver may be illegal. Where such regulations
apply they must be obeyed and this product´s video source should not be used.
Antenna
jack
Vehicle
antenna
Light gray
Light gray
5 m
(16 ft. 5 in.)
GPS antenna
WIRED REMOTE INPUT
Please see the Instruction
Manual for the Wired Remote
Control Adapters (sold separately).
Black
(Extension port)
Dock
connector
port
The display unit
Yellow
(VIDEO IN)
20 cm
(7-7/8 in.)
Blue
30-pin cable
(supplied)
3 m (9 ft. 10 in.)
Extension
antenna cable
(supplied)
3 m (9 ft. 10 in.)
Interface cable
for iPod
(sold separately)
Connecting the System
