PDP-436SXE
132
1234
1234
C
D
F
A
B
E

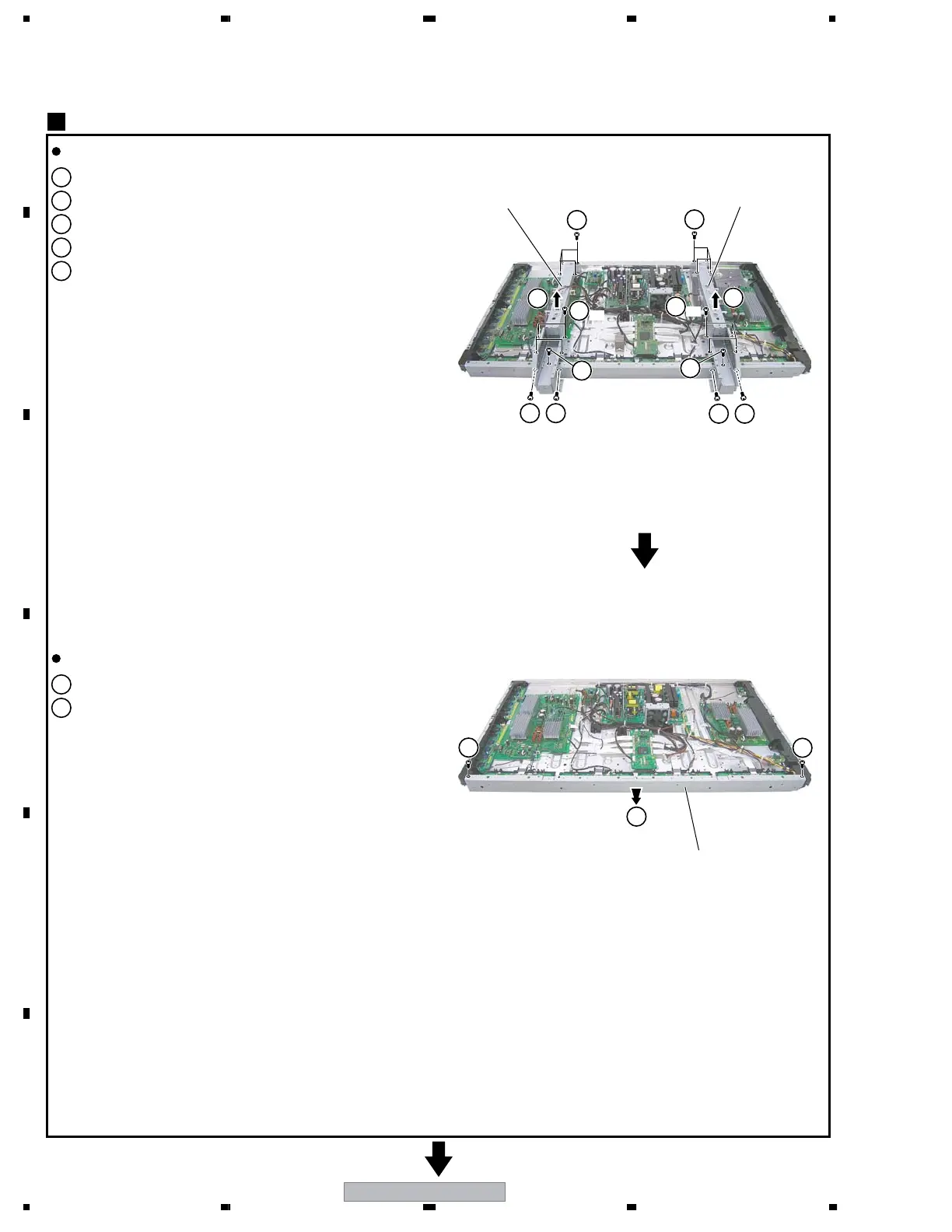

Sub Frame L and R Assy 436SX ~ Front Chassis H Assy 436SX
9
1
Remove the one screw each from the sub frame L and R Assys.
2
Remove the two screws each from the L and R Assys.
3
Remove the eight screws each from the L and R Assys.
4
Detach the cables from their cable ties, as required.
5
Remove the sub frame L and R Assys 436SX.
Sub Frame L and R Assy 436SX
1
Remove the two screws.
2
Remove the front chassis H Assy 436SX.
Front Chassis H Assy 436SX
Sub frame L Assy
436SX
5
5
1
1
1
3
2 2
2 2
1
×4
3
×4
3
×4
3
×4
2
Front chassis H Assy 436SX
Sub frame R Assy
436SX
To Next Page
