Pioneer PDP-436SXE Service Manual

PDP-436SXE
65
5678
56
7
8
C
D
F
A
B
E

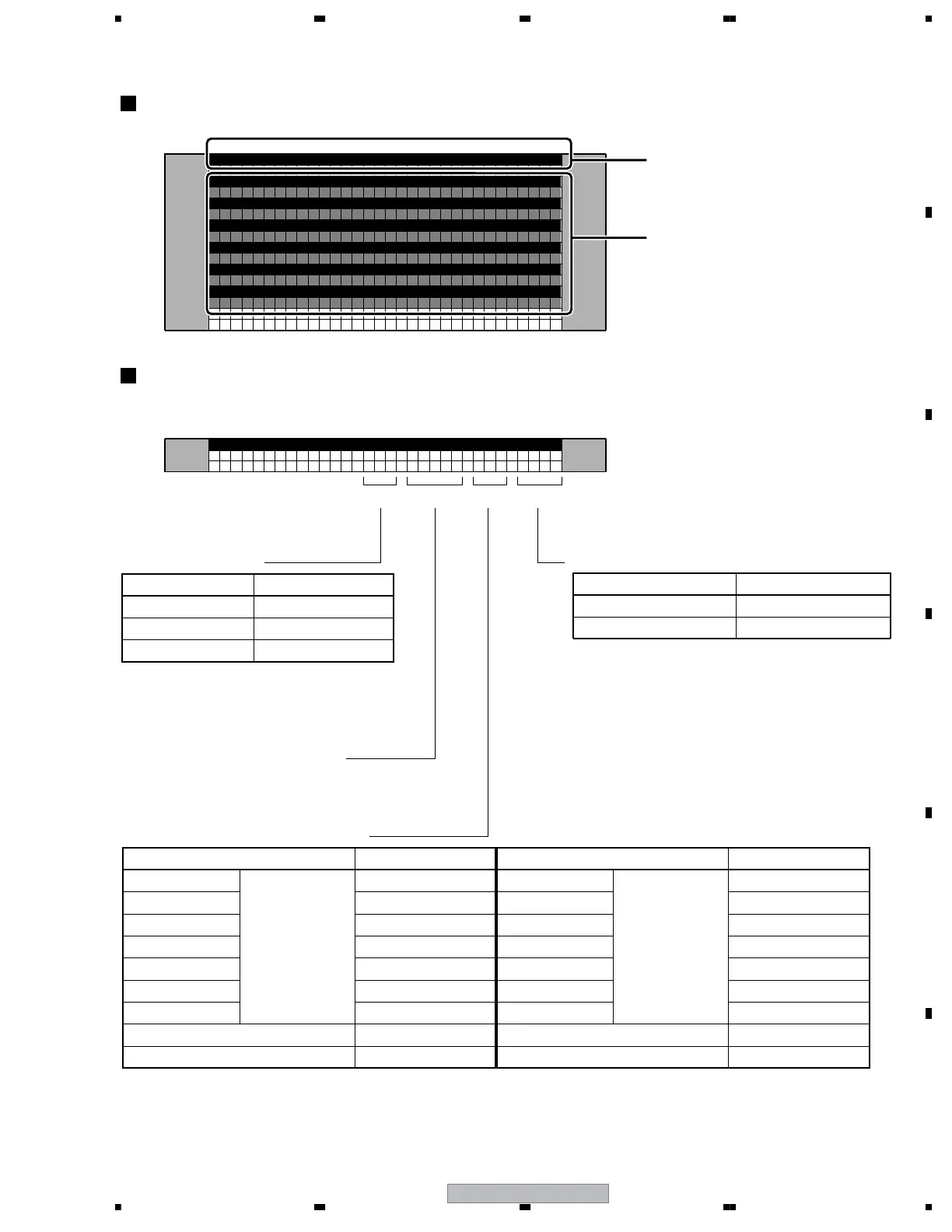

Indications in Service Factory mode
1
123456789
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
I
V ERS I ON ( 1 )
N F O R M A T I O N
MA I N 0 2M
I/F
––
–
–
–
–
07A
WID–PRG 02M
GU I – DAT 0 2M
WID–DAT 02M
PIC–DAT 02M
MODUL E 0 0 6M
SEQ–PRG 0 0 3A
01M
01A
01M
01A
SQ–DT–V 0 0 8W
SQ–DT–P 0 0 9W
– 1 1V D 1 6 0 1 – N T V – J H S 6
Main-items
Subtitled-items
Main-item indications
1
123456789 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
2
3
I N F O R M A T I O N V 1 1 6V D 1 – 0 1 – N T V – J H S 6
1234
Four parameters are displayed:
Note: See SIG-Mode Tables. (See next page.)
1 Input function
2 SIG mode and screen size
3 Color system and signal type
Input Functions On-Screen Display
INPUT 1- 4 AV 1 - 4
Analogue Tuner AIR
Digital Tuner ARD
4 Option (Destination, etc.)
Options On-Screen Display
Advanced : PDP-436SXE EHB6
Basic : PDP-436RXE EBB6
Color System and Signal Type
On-Screen Display
Color System and Signal Type
On-Screen Display
NTSC
Composite input
NTV NTSC
S-connector input
NTS
PAL PLV PAL PLS
PAL N PNV PAL N PNS
PAL M PMV PAL M PMS
SECAM SCV SECAM SCS
4.43NTSC 4NV 4.43NTSC 4NS
BLACK/WHITE BWV BLACK/WHITE BWS
Y / CB / CR CBR RGB RGB
Y / PB / PR PBR Digital video signal DIG
Note : ARD IS PDP-436SXE ONLY.
