Safety Precautions
02
English
Installation Precautions
Observe the following precautions when installing with any items such as the optional stand.
When using the optional stand, brackets, or equivalent items
Ask your dealer to perform the installation.
Be sure to use the supplied bolts.
For details, see the instruction manual that comes with the optional stand (or equivalent items).
When using other items
Consult your dealer.
The following six mounting holes can be used for the installation:
CAUTION
Be sure to use four or more mounting holes symmetrical to the vertical and horizontal median lines.
Use M8 screws, which go 12 mm to 18 mm in depth from the mounting surface of the Plasma Television. See the side view above.
Be careful not to block the ventilation opening at the rear of the Plasma Television.
Be sure to install the Plasma Television on a flat surface because it contains glass.
The screw holes other than the above are to be used only for the specified products. Never use them for mounting non-specified
products.
Do not mount or remove the Plasma Television to or from the stand, with speakers attached.
NOTE
It is strongly recommended to use the optional PIONEER mounting products.
PIONEER shall not be liable for any personal injury or product damage that results from the use of mounting items other than
the optional PIONEER products.

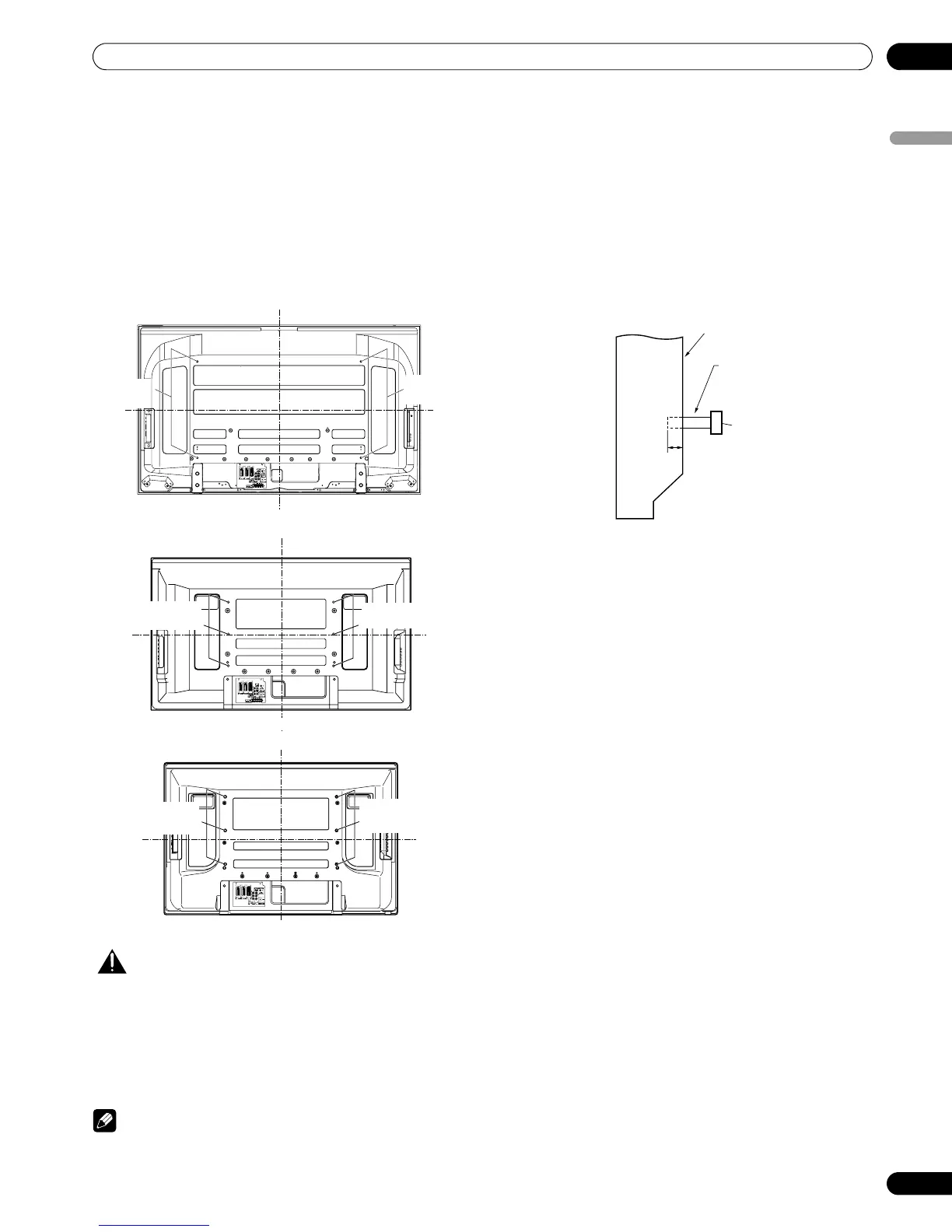

Side view
Mounting
hole
Mounting
hole
Median line
Mounting surface
Plasma
Television
Mounting
bracket (or
equivalent item)
M8 screw
12 mm to 18 mm
Median line
Rear view (PDP-427XD)
Mounting
hole
Mounting
hole
Median line
Median line
Rear view (PDP-507XD)
Mounting
hole
Mounting
hole
Median line
Median line
Rear view (PDP-607XD)
