Part Names
04
English
1
PC INPUT terminal (ANALOG RGB)
2
ANT OUT terminal (Antenna through out)
3
ANT IN terminal (Antenna in for DTV)
• Power can be supplied through this terminal
4
DIGITAL OUT terminal (OPTICAL)
5
COMMON INTERFACE slot
• For a CA Module with a smart card
6
AC IN terminal
7
INPUT 3/INPUT 4 terminals (HDMI)
8
RS-232C terminal (used for factory setup)
9
ANT (Antenna) input terminal
10
INPUT 1 terminal (SCART)
11
INPUT 2 terminal (SCART)
12
INPUT 3 terminal (SCART)
13
INPUT 2 terminals (COMPONENT VIDEO: Y, P
B
, P
R
)
14
SUB WOOFER OUTPUT terminal
15
AUDIO OUTPUT terminals
16
PC INPUT terminal (AUDIO)
17
CONTROL OUT terminal
6
8
9
7
10
12
11
13
5
1
TIMERON STANDBY
POWER
4
3
2

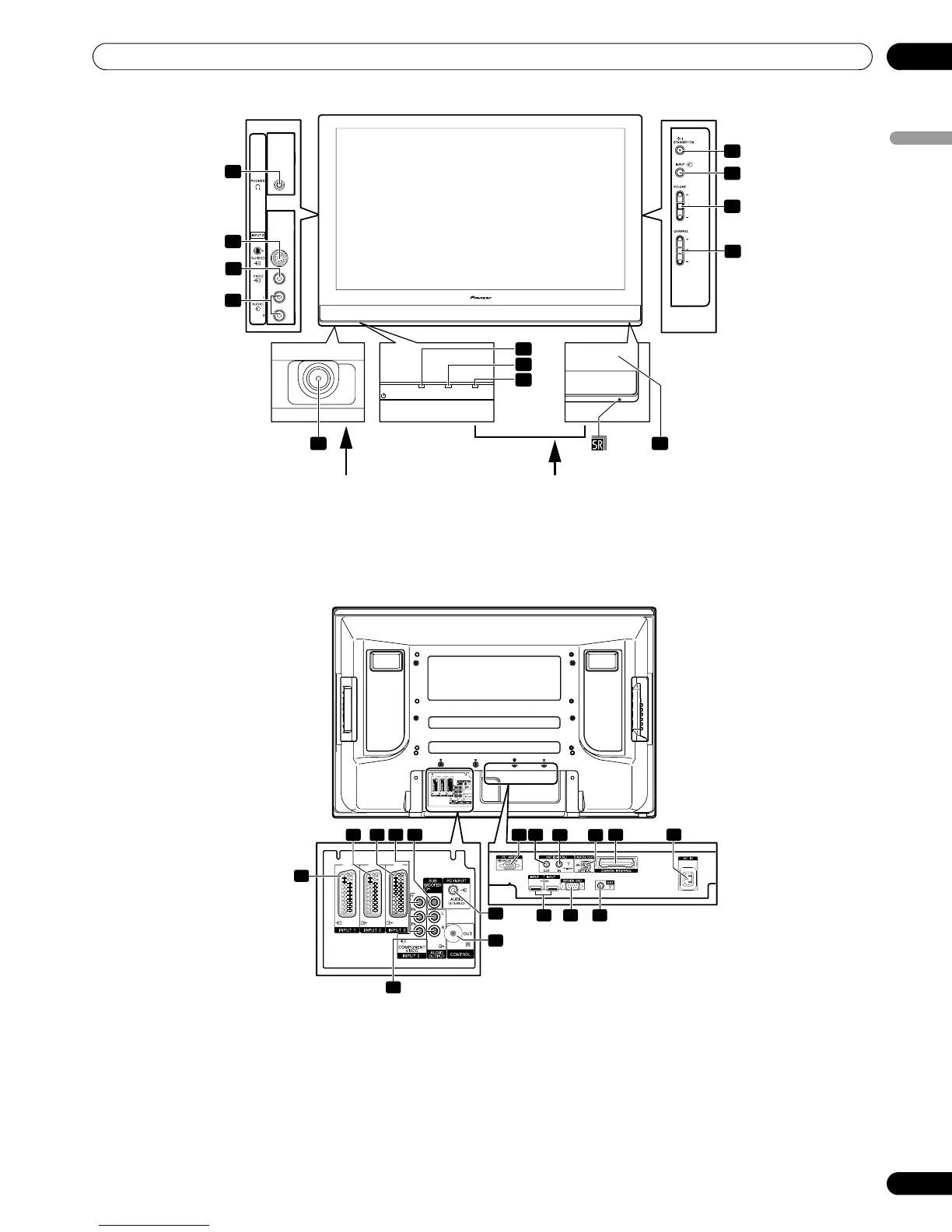

Front view
(PDP-427XD)
Viewed from below of the display
Viewed from the front side of the display
1POWER
button
2
POWER ON indicator
3
STANDBY indicator
4
TIMER indicator
5
Remote control sensor
(Side view)
6 STANDBY/ON
button
7INPUT
button
8VOLUME +/–
buttons
9 CHANNEL +/–
buttons
10
PHONES output terminal
11
INPUT 5 terminal (S-VIDEO)
12
INPUT 5 terminal (VIDEO)
13
INPUT 5 terminals (AUDIO)
3
4
1
3
87
6
9
17
16
10
14
12 13
11
15
4
5
2
Rear view
(PDP-427XD)
(Terminals located on the upper edge of the
compartment)
