Pioneer UDP-LX800 User Manual

13
En
01
Part Names and Functions

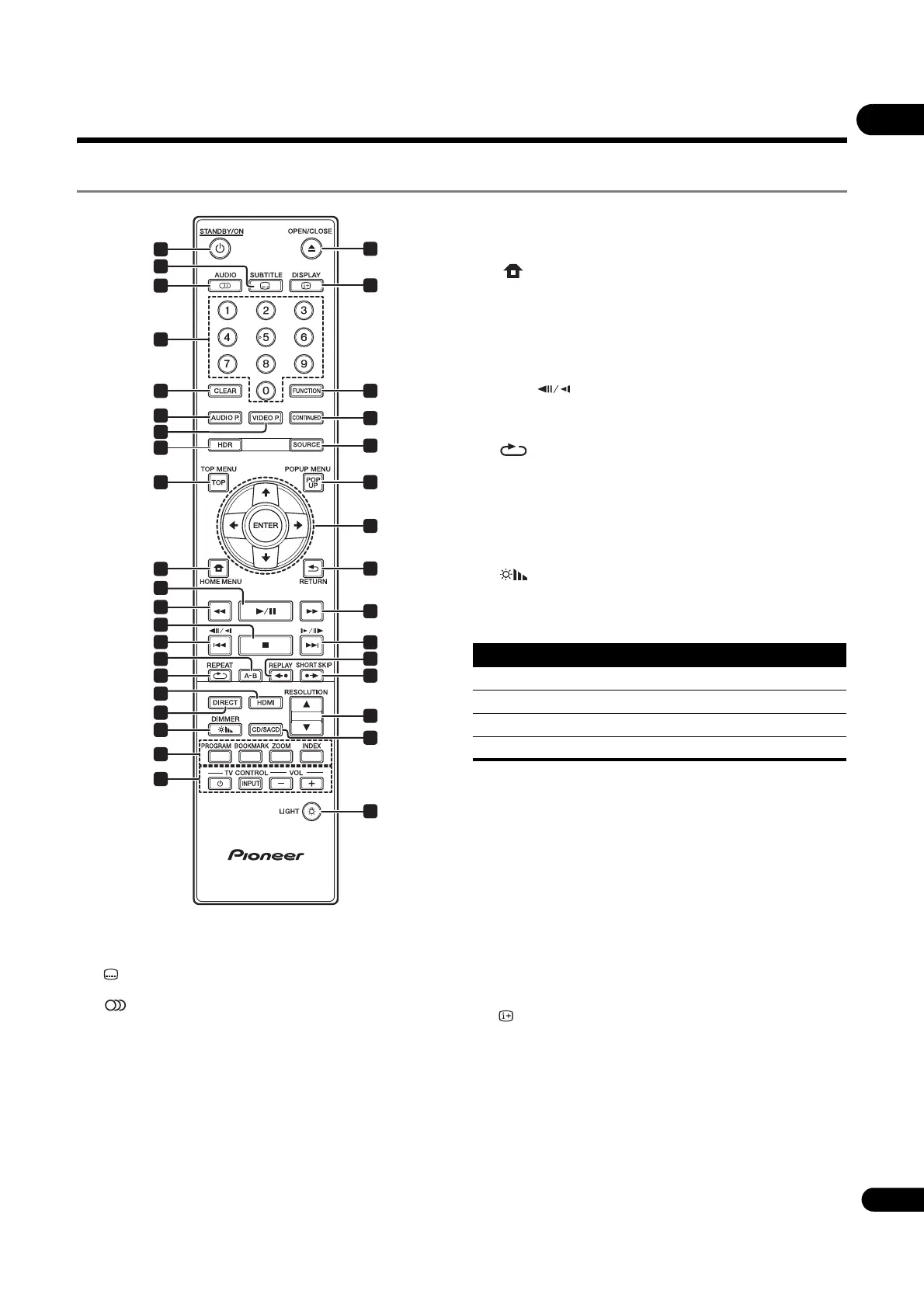

Remote Control
1 ^ STANDBY/ON – Press to turn the power on
and off.
2 SUBTITLE – (page 29)
3 AUDIO – (page 29)
4 Number buttons – Use these to select and play
the title/chapter/track you want to view or
listen to and to select items from menus.
5CLEAR – Press to clear the numeric number,
etc.
6 AUDIO P. – Use to access the audio options.
(page 37)
7VIDEO P. – Use to access the video options.
(page 38)
8 HDR – (page 39)
9TOP MENU – Press to display the top menu of
the BD-ROM or DVD-Video.
10 HOME MENU – (page 39)
11 q / h – (page 26)
12 t – (page 26)
13 g – (page 26)
14 u / – (page 27)
15 A-B – (page 27)
16 REPEAT – (page 27)
17 HDMI – Press to switch the HDMI Mode
(pages 17 and 41).
18 DIRECT – Press to switch the DIRECT function/
TRANSPORT function to on/off (page 29).
19 DIMMER – Each time this is pressed, the
brightness of the front panel display of the main
unit and the lighting status of the ^ STANDBY/ON
button of the main unit are switched.
20 Color buttons – Use these to navigate BD-ROM
menus.
PROGRAM – (page 28)
BOOK MARK – (page 28)
ZOOM – (page 28)
INDEX – (page 28)
21 TV CONTROL – (page 24)
22 ; OPEN/CLOSE – Press to open and close the
disc tray.
23 DISPLAY – (page 30)
24 FUNCTION – (page 32)
25 CONTINUED – Use to continue playback from a
specified position. (page 33)
26 SOURCE – (page 34)
27 POPUP MENU/POPUP – Press to display the
BD-ROM or DVD-Video menus.
11
13
17
1
3
4
5
6
8
9
2
10
12
14
18
15
16
19
20
21
7
36
23
24
25
26
27
28
29
30
31
34
22
33
32
35
Front panel display ^ STANDBY/ON button
Normal Lights
Slightly dimmed Lights
Dimmed Lights
Off Dimmed

Pioneer UDP-LX800 Specifications

General

Device type	HiFi CD player
Product color	Black
DVD region code	-
Number of HDMI outputs	2
Number of products included	1 pc(s)
High Dynamic Range Imaging (HDRI)	Yes
Color depth	36 bit
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.45 W
Power consumption (typical)	42 W
Cables included	AC
Playback disc types	BD-R, BD-R DL, BD-RE, BD-RE DL, BD-ROM, CD-R, CD-ROM, CD-RW, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-ROM, DVD-RW
Playback disc formats	CD audio, DVD-Video
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio coaxial out	1
TV tuner integrated	No
Video formats supported	AVCHD
Audio decoders	DTS-HD Master Audio

Weight and Dimensions

Depth	339 mm
Width	435 mm
Height	131 mm
Weight	13800 g
