Input device is
connected with the
ZERO SIGNAL
terminal.
The Zero Signal is the reference (GND) for video
and audio signals. If you connect the ZERO SIGNAL
terminal of the equipment to the audio input
terminal of another device connected to this
equipment, with a pin cord, the device becomes
compatible to the audio standard of this
equipment, and the signal integrity improves.
On the other hand, if you connect the video input
terminal of the device, it will become compatible
to the video standard of this equipment and the
signal integrity will improve.
Connecting
components to the
USB port
About USB devices
The USB devices that can be connected to the
player are as shown below.
• USB 2.0-compatible USB flash drive (capacity
of 1 GB or greater, 2 GB or greater
recommended) or HDD (capacity 2 TB or less)
• File system: FAT16 or FAT32
Note
• Devices formatted with a file system other than
the above cannot be used.
• USB devices may not be recognized if they
contain multiple partitions.
•Some USB devices may not operate with this
player.
• Operation of USB devices is not guaranteed.
Connecting the USB device
Caution
• Be sure to turn the player’s power off before
connecting or disconnecting USB devices.
• When using an external hard disk as the
external storage device, be sure to turn on the
hard disk’s power before turning on the
player’s power.
• If the USB device is write-protected, be sure to
disable the write-protection.
• When connecting the USB cable, hold onto the
plug, set the plug in the proper direction for the
port and insert it horizontally.
• Placing excessive loads on the plug may result
in poor contact, making it impossible to write
data on the USB device.
• When a USB device is connected and the
player’s power is turned on, do not unplug the
power cord.
Note
• Devices may not work if connected to the USB
port via a memory card reader or USB hub.
• Use a USB cable with a length of 2 meters or
less.

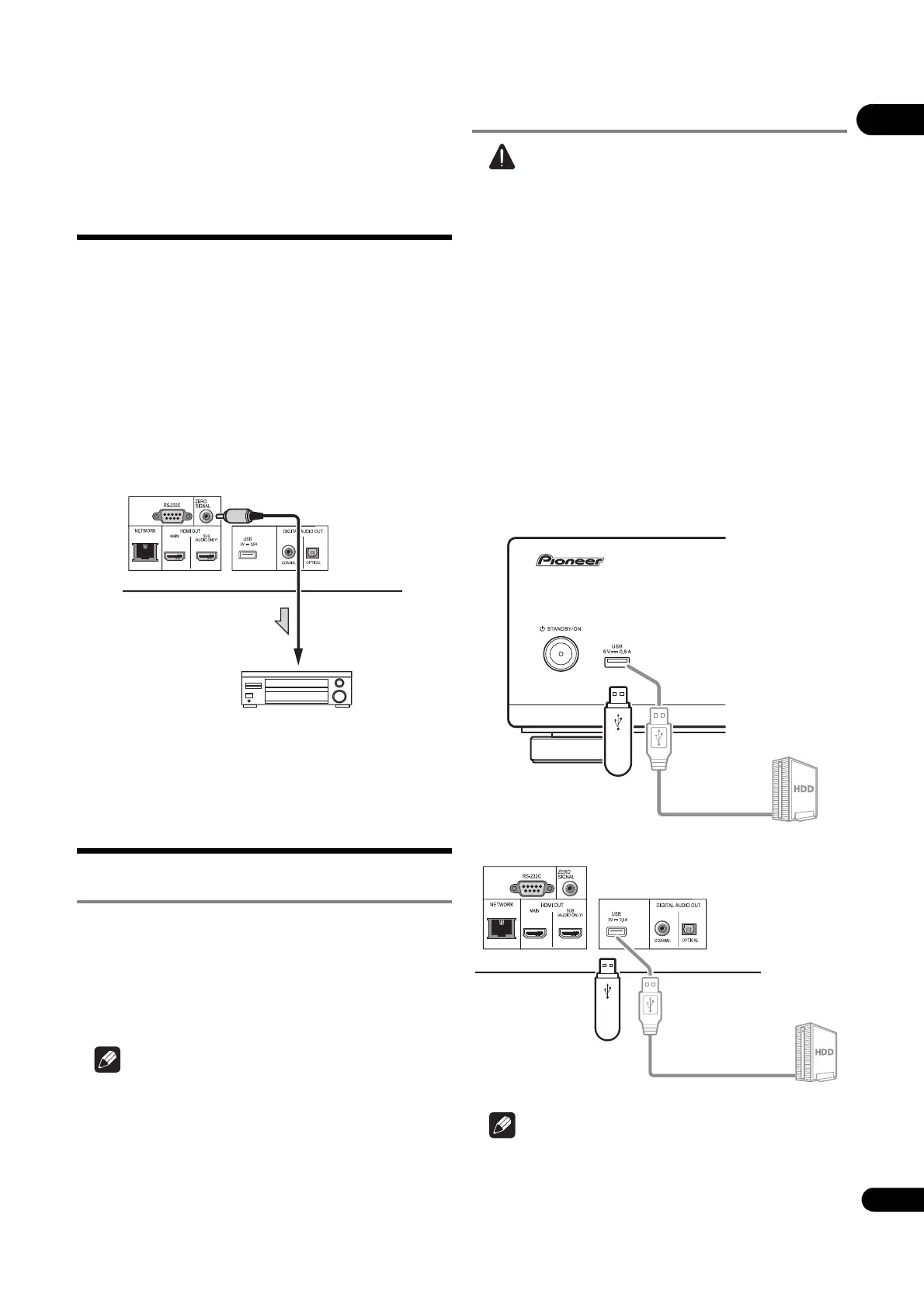

Audio or Video cable
(commercially available)
AV receiver or TV etc.
To audio or video
input terminals
USB flash drive
UDP-LX800’s front panel
Hard disk, etc.
USB cable
(commercially
available)
USB flash drive
UDP-LX800’s rear panel
Hard disk, etc.
USB cable
(commerciall
y available)

Pioneer UDP-LX800 Specifications

General

Device type	HiFi CD player
Product color	Black
DVD region code	-
Number of HDMI outputs	2
Number of products included	1 pc(s)
High Dynamic Range Imaging (HDRI)	Yes
Color depth	36 bit
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.45 W
Power consumption (typical)	42 W
Cables included	AC
Playback disc types	BD-R, BD-R DL, BD-RE, BD-RE DL, BD-ROM, CD-R, CD-ROM, CD-RW, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-ROM, DVD-RW
Playback disc formats	CD audio, DVD-Video
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio coaxial out	1
TV tuner integrated	No
Video formats supported	AVCHD
Audio decoders	DTS-HD Master Audio

Weight and Dimensions

Depth	339 mm
Width	435 mm
Height	131 mm
Weight	13800 g
