Pioneer UDP-LX800 User Manual

19
En
02

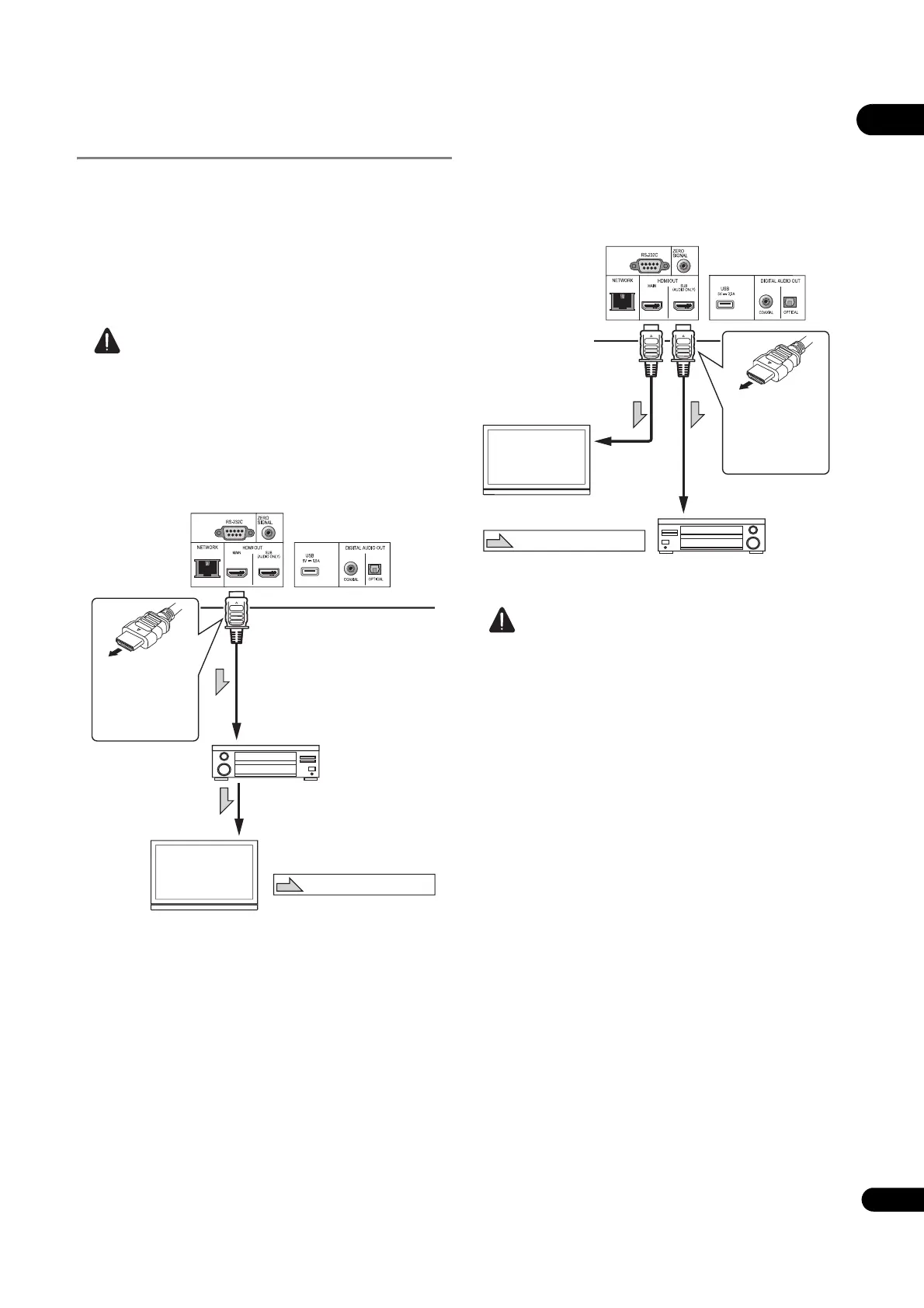

Connecting an AV receiver
or amplifier
Connect to an AV receiver or amplifier in order to
enjoy the surround sound of Dolby TrueHD, Dolby
Digital Plus, Dolby Digital, DTS-HD Master Audio,
DTS-HD High Resolution Audio, DTS Digital
Surround, LPCM, AAC or DSD. For instructions on
connecting the TV and speakers to the AV receiver
or amplifier, refer to the operating instructions for
AV receiver or amplifier.
Caution
• Hold the plug when connecting and
disconnecting the cable.
• Placing a load on the plug could result in faulty
contact and no video signals being output.
Connect a TV to the AV receiver or amplifier, not
to the HDMI OUT (SUB) terminal.
Achieving better video and sound quality
When connecting one TV (or projector) and AV
amplifier to the player, connect in such a way that
the video and audio signals are transferred
separately in order to achieve higher quality video
and sound.
Caution
• Make sure to set HDMI Mode to Separate
(page 41).
UDP-LX800’s rear panel
AV receiver
or amplifier
To HDMI input
terminal
TV
Match the
direction of the
plug to the
terminal and
insert straight.
Direction of signal flow
To HDMI input terminal
HDMI cable
(commercially
available)
AV receiver
or amplifier
TV
Match the
direction of the
plug to the
terminal and
insert straight.
Direction of signal flow
To HDMI input terminal
HDMI cable
(commercially
available)
UDP-LX800’s rear panel

Pioneer UDP-LX800 Specifications

General

Device type	HiFi CD player
Product color	Black
DVD region code	-
Number of HDMI outputs	2
Number of products included	1 pc(s)
High Dynamic Range Imaging (HDRI)	Yes
Color depth	36 bit
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.45 W
Power consumption (typical)	42 W
Cables included	AC
Playback disc types	BD-R, BD-R DL, BD-RE, BD-RE DL, BD-ROM, CD-R, CD-ROM, CD-RW, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-ROM, DVD-RW
Playback disc formats	CD audio, DVD-Video
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio coaxial out	1
TV tuner integrated	No
Video formats supported	AVCHD
Audio decoders	DTS-HD Master Audio

Weight and Dimensions

Depth	339 mm
Width	435 mm
Height	131 mm
Weight	13800 g
