THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 3
Feb 19/04
5L9
95-00-00

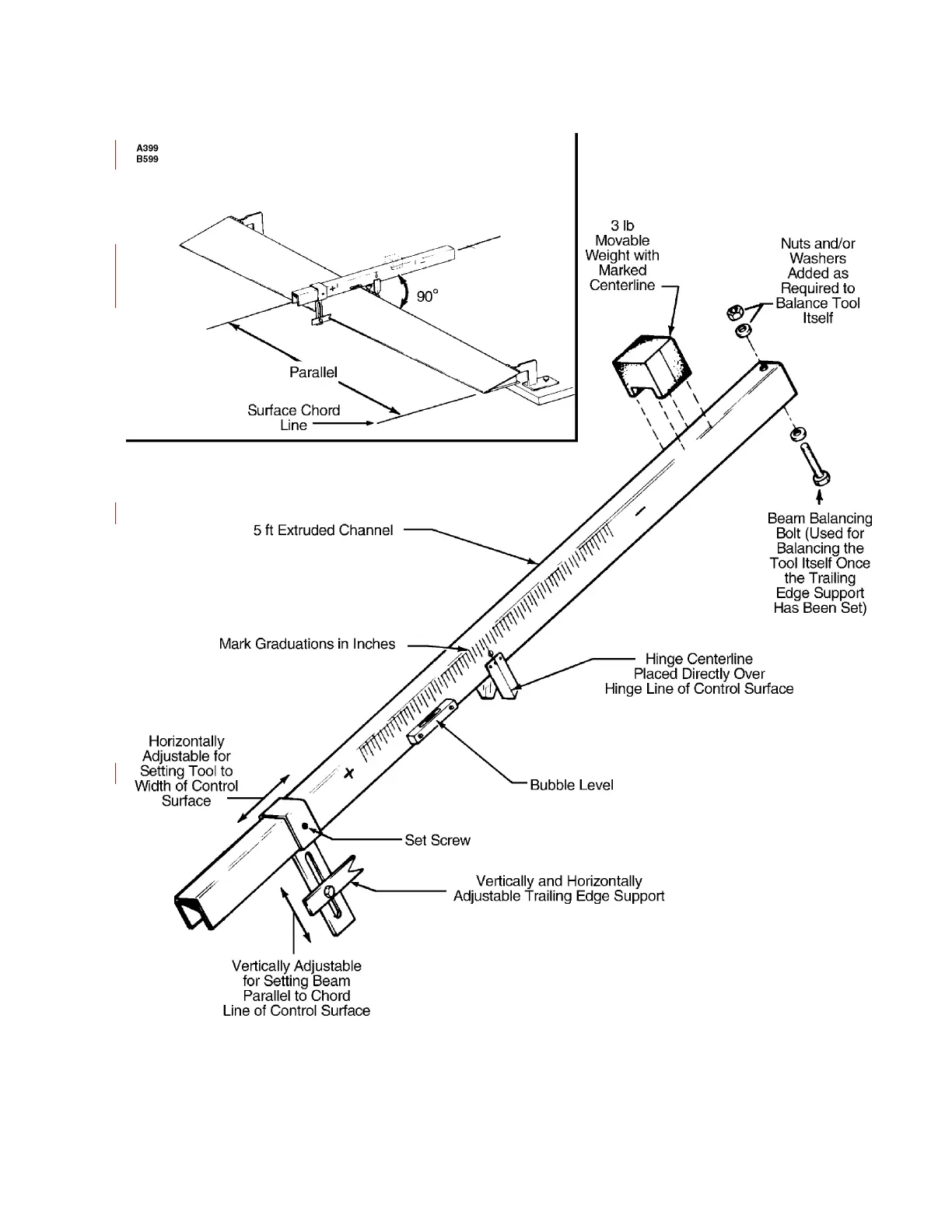

Control Surface Balancing Tool
Figure 2
