THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 4
Feb 19/04
5L10
95-00-00

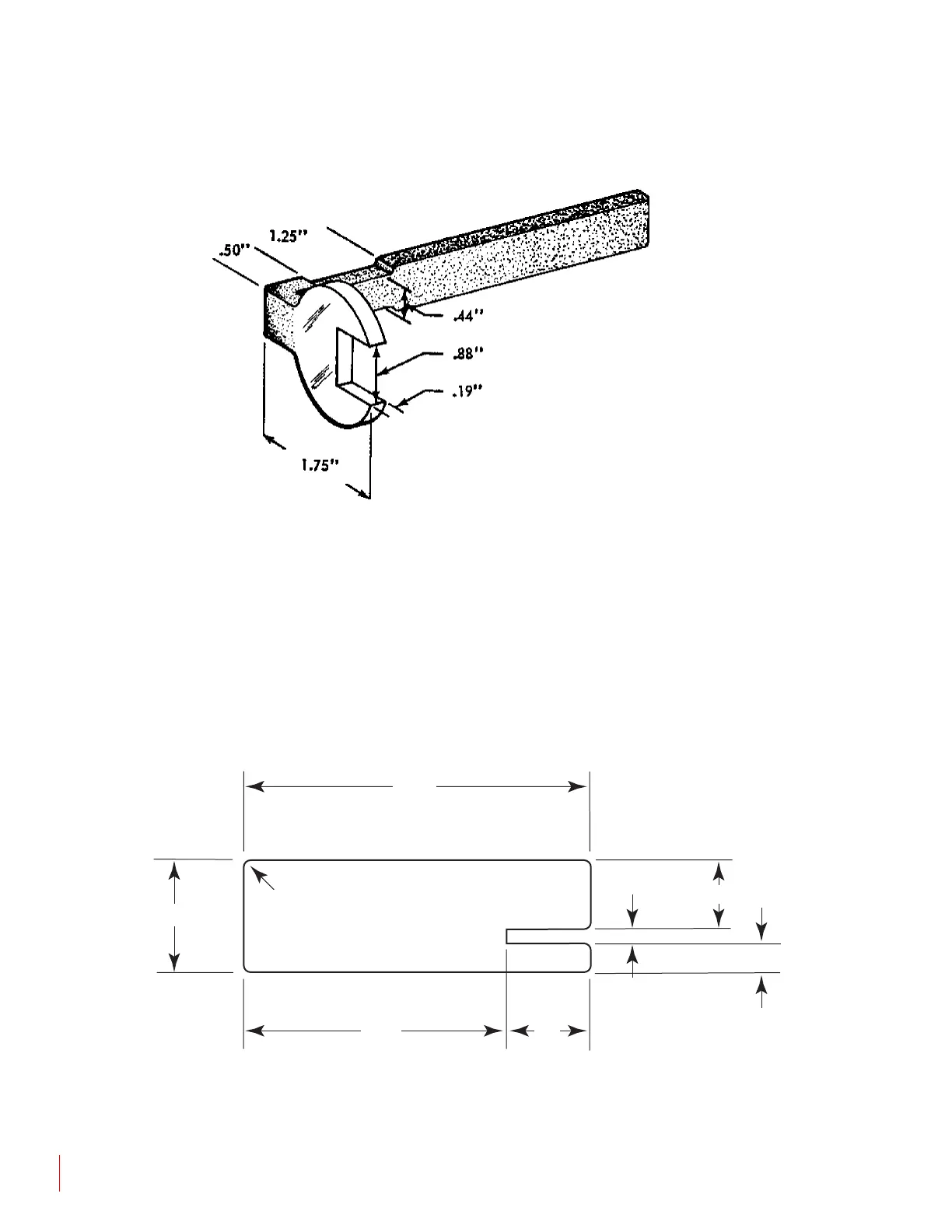

Baggage Door Lock Tool
Figure 3
Aileron Bellcrank Rigging Tool
Figure 4
MATERIAL - .125 X 1.0 ALUMINUM PLATE
.062 R (SIX PLACES)
3.10
2.35
.75
1.0
.625
.25
.125
