THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 8
Feb 19/04
1K14
APPENDIX 1
ALTITUDE SELECTOR / ALERTER
(OPTIONAL)
ANNUNCIATOR
TRIM / MASTER ANNUNCIATOR SWITCH
TURN & BANK
HSI (OPTIONAL)
FLAP COMPENSATOR
TRIM SERVO
PITCH SERVO
ROLL SERVO
PROGRAMMER / COMPUTER
HORN
TRIM
MONITOR
FWD
UP
A
LOOKING DOWN,
BELOW
CONTROL WHEEL
PITOT STATIC LINE
TRANSDUCER
INSTR PANEL (REF.)
VIEW A
LOOKING OUTBOARD

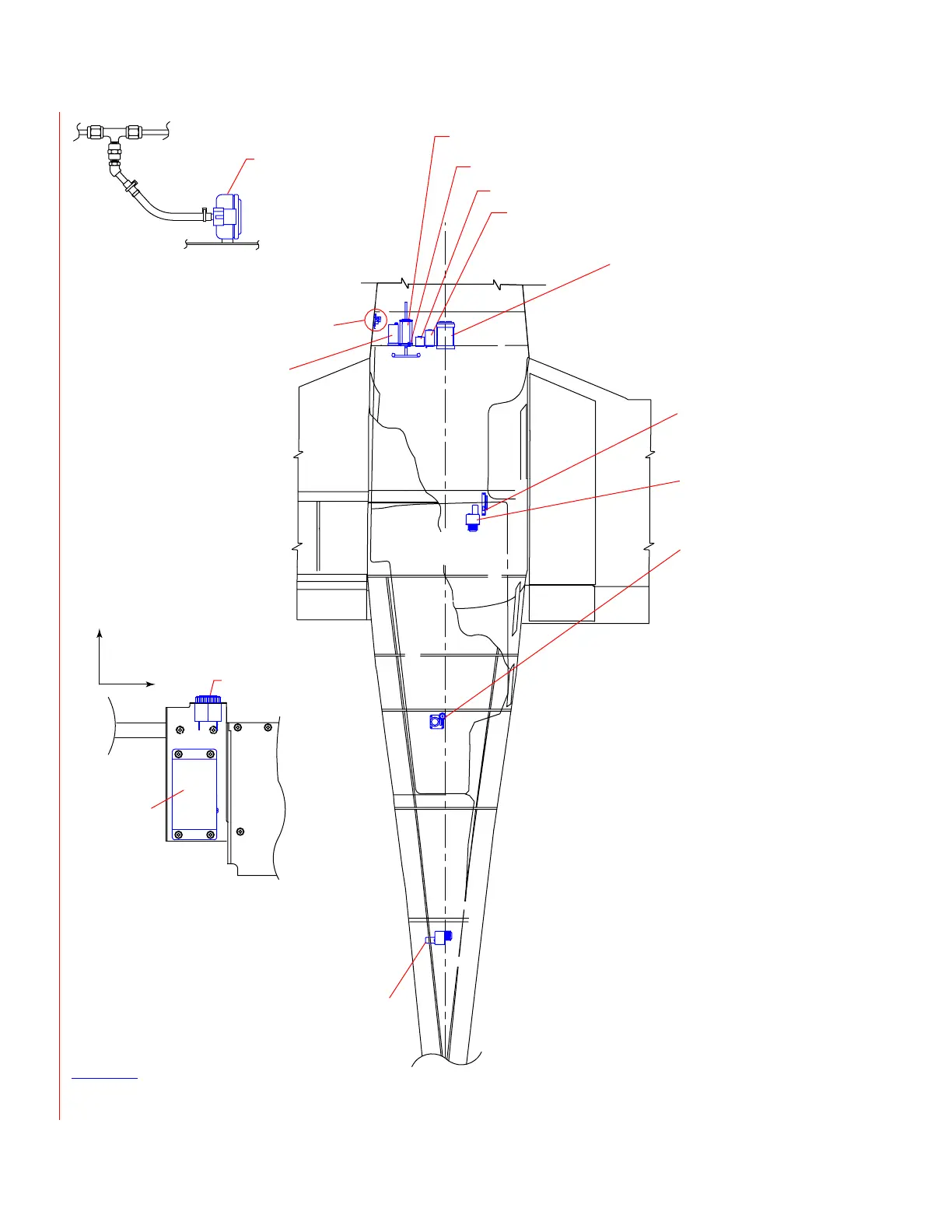

Component Locator
Figure 2
Effectivity
3232003 & up
3255001 & up
