THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 5
Jun 1/03
2I15
27-00-00
B. External Wear Patterns
Wear will normally extend along cable equal to the distance cable moves at that location. Wear may
occur on one side of the cable only or on its entire circumference. Replace flexible and non-flexible
cables when individual wires in each strand appear to blend together (outer wires worn 40-50
percent) as depicted in Figure 3.

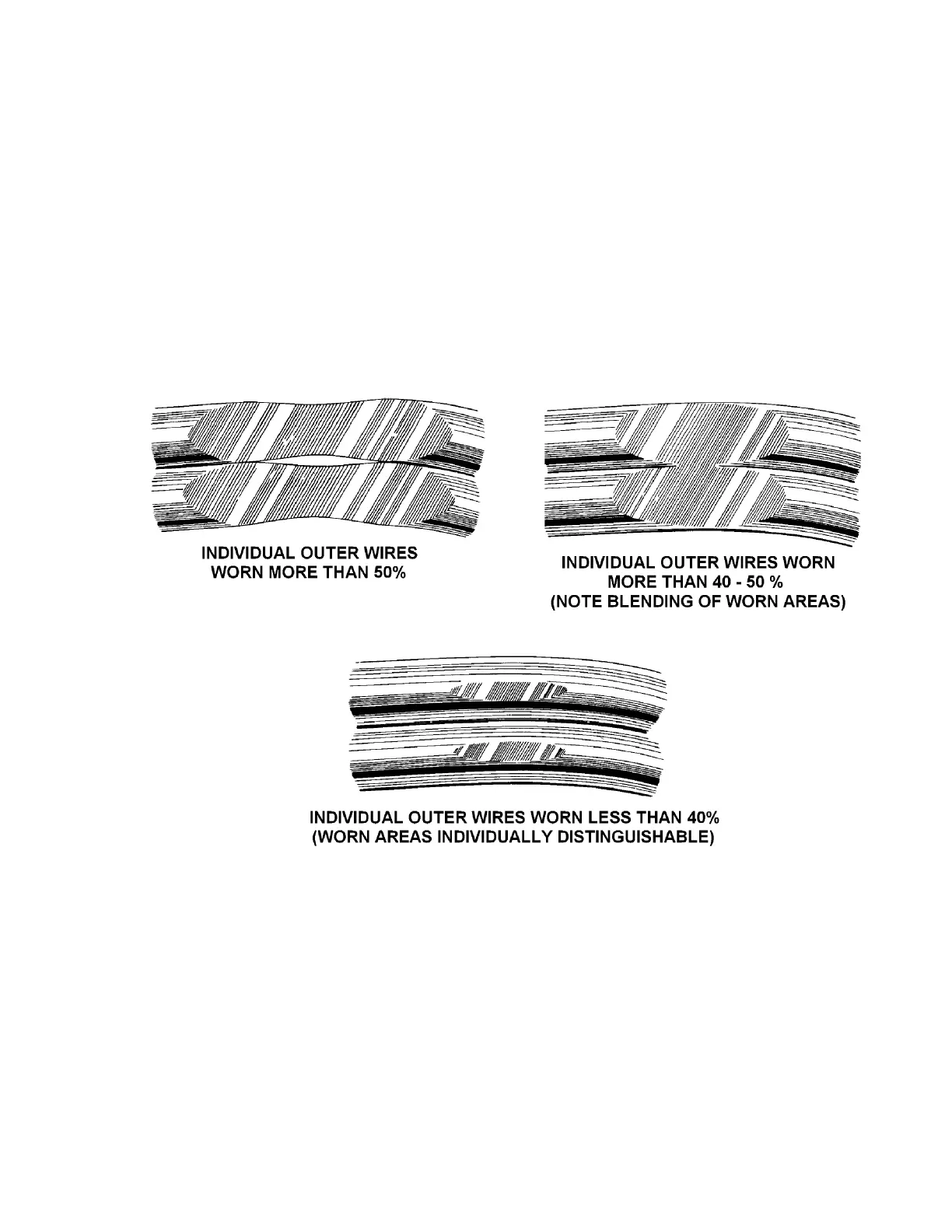

External Cable Wear
Figure 3
