THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 2
Jun 1/03
3D8
28-40-00

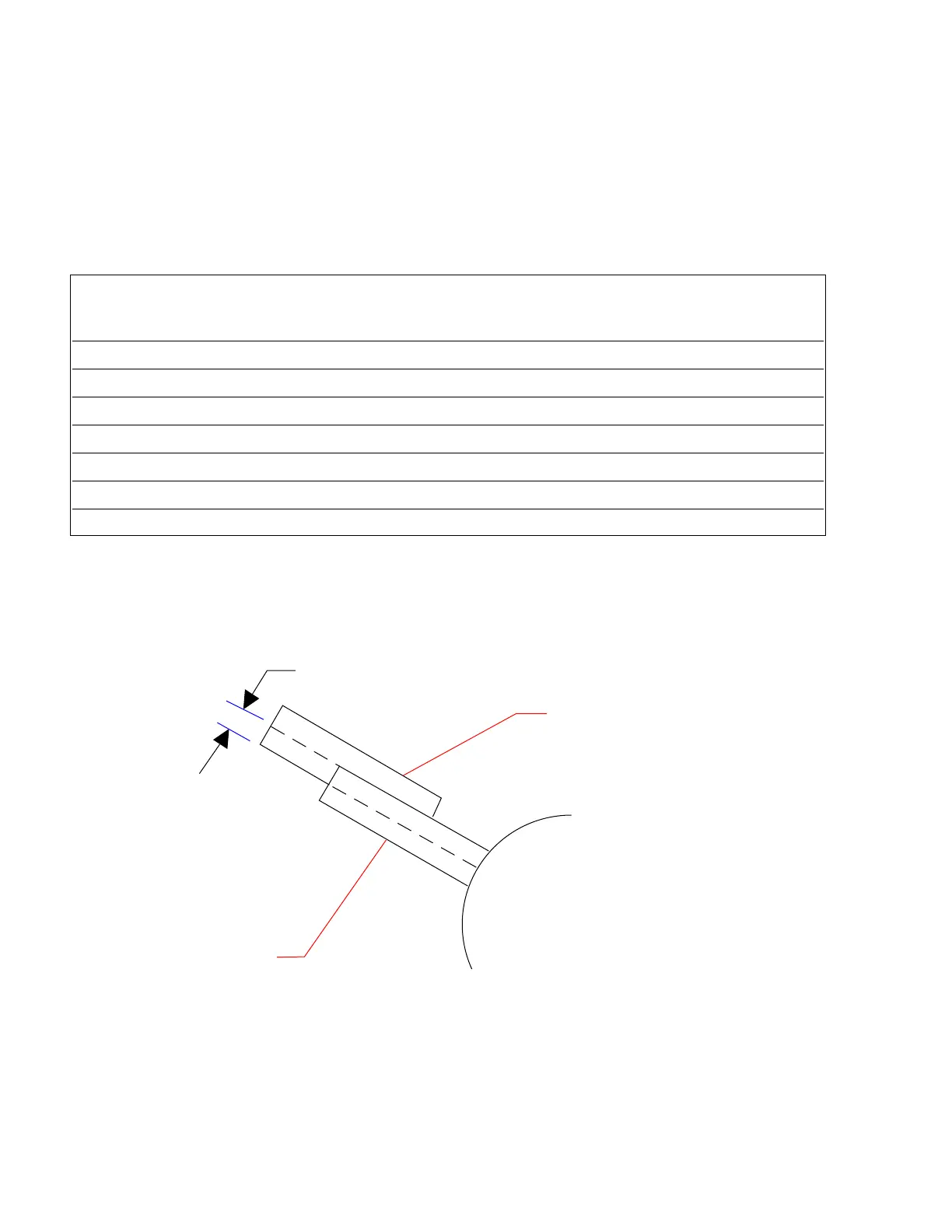

CHART 1
FUEL QUANTITY ANALOG GAUGE / SENDER TOLERANCES
Total Fuel in Tanks Tolerance
[Side Being Tested] Required Gauge (Plus or Minus) Resistance (Ohms)
Gallons Reading Needle Widths* Both Senders
2 1/2 0 +0, -1 5
12 1/2 10 ± 3/4 21
22 1/2 20 ± 1 32
32 1/2 30 ± 1 1/2 46
42 1/2 40 ± 1 1/2 63
53 1/2 F ± 1 1/2 90
* See Figure 2
Needle Deviation
Figure 2
1/2 NEEDLE WIDTH
NEEDLE
RADIAL MARK
(AS APPROPRIATE)
NEEDLE DEVIATION
