THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 4
Jun 1/03
3H4
33-40-00

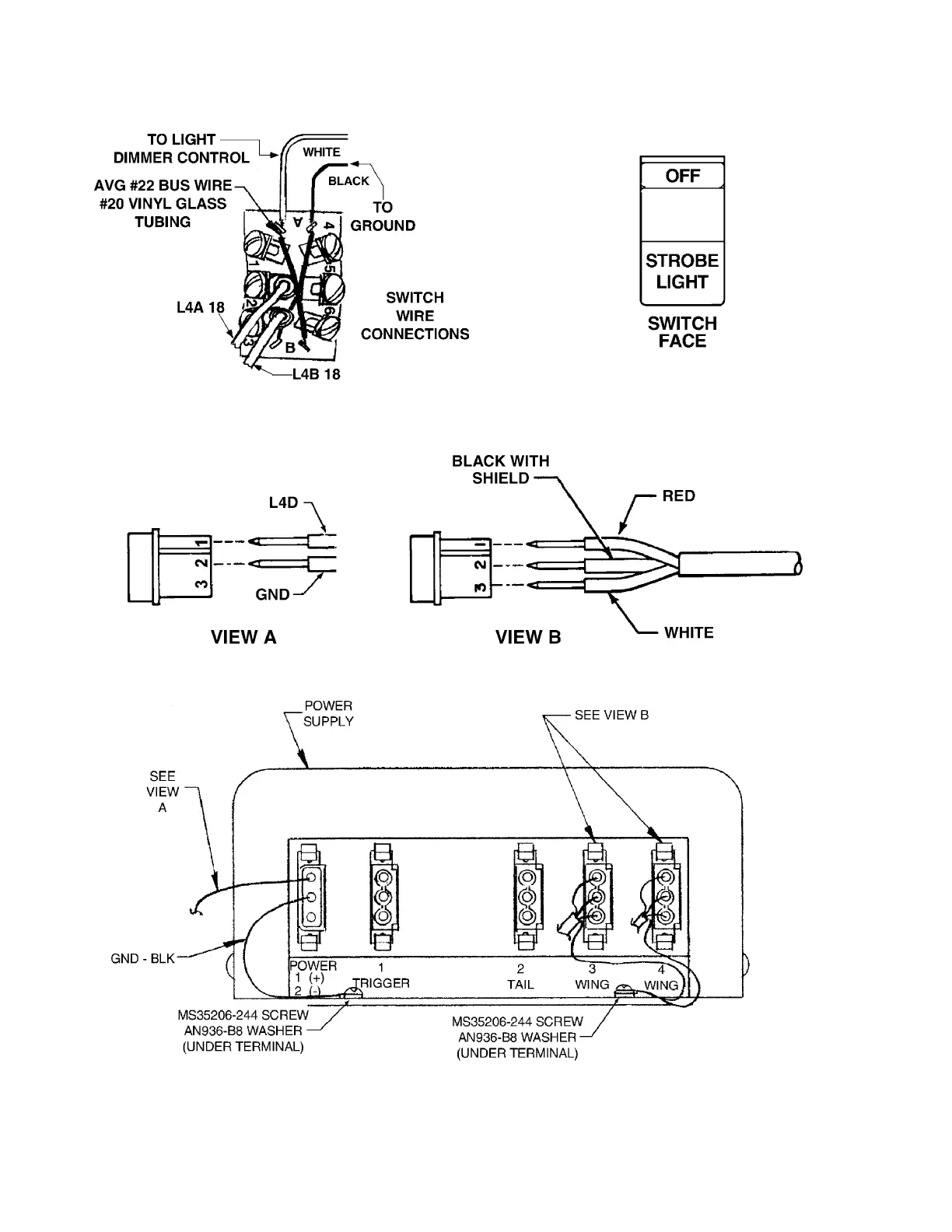

Strobe Light Connections
Figure 4
