THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 3
Feb 19/04
3L11
APPENDIX 2
TORQUE TO 31 - 32 IN.-LBS.
(4 PLACES)
DIODE D1 (REF)
DAU
DC-50 ANTENNA COUPLER (REF)
MFD
PFD
GI-106A CDI (REF)
TURN CO-ORDINATOR (REF)
INSTRUMENT PANEL - LOOKING AFT
RELAY K17 (REF)
INSTRUMENT PANEL - LOOKING FWD
PFD
MFD
ALIGNMENT
PIN AND SLOT

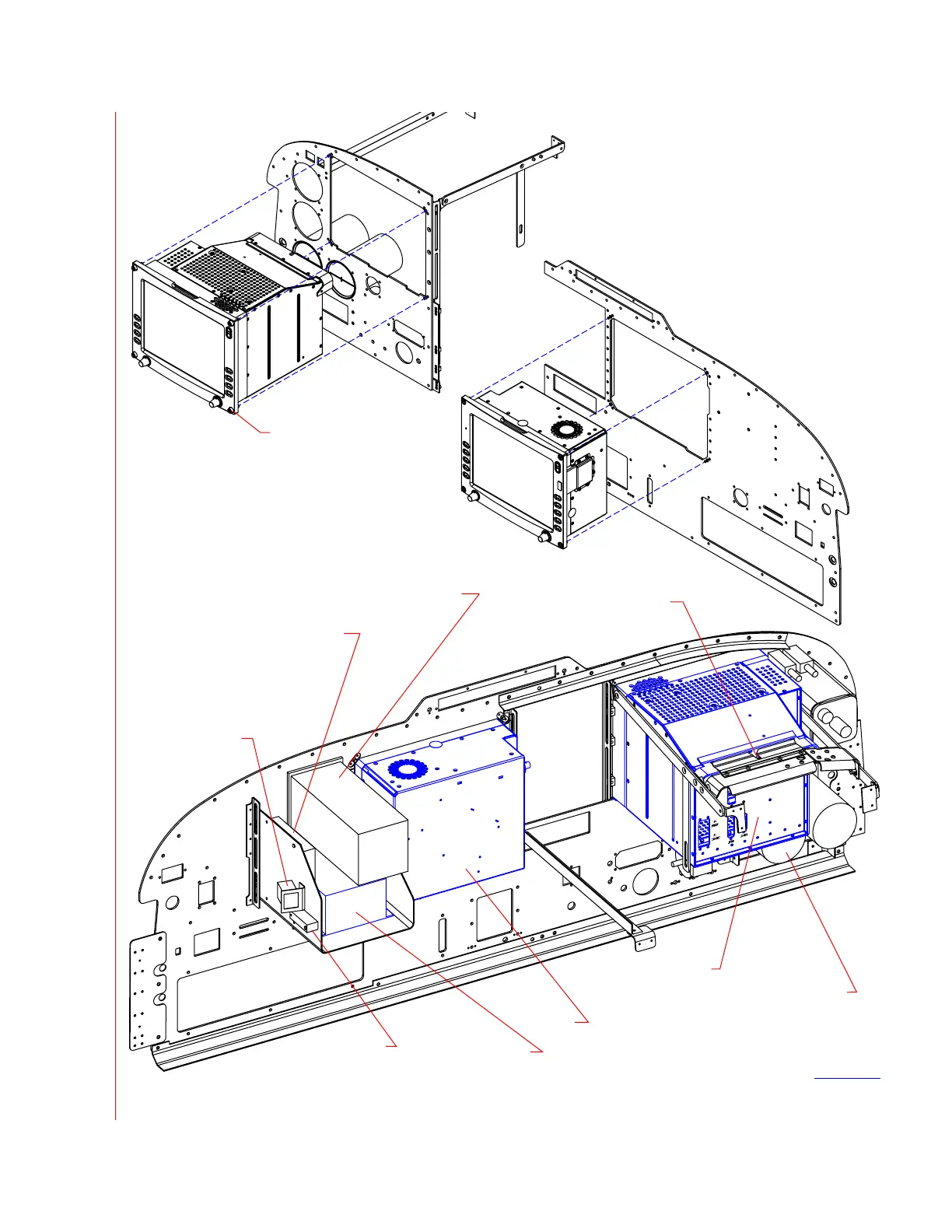

Component Locator
Figure 2 (Sheet 1 of 3)
Effectivity
3232014 & up
3255015 & up
