THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 7
Jun 1/03
4C17
39-20-00

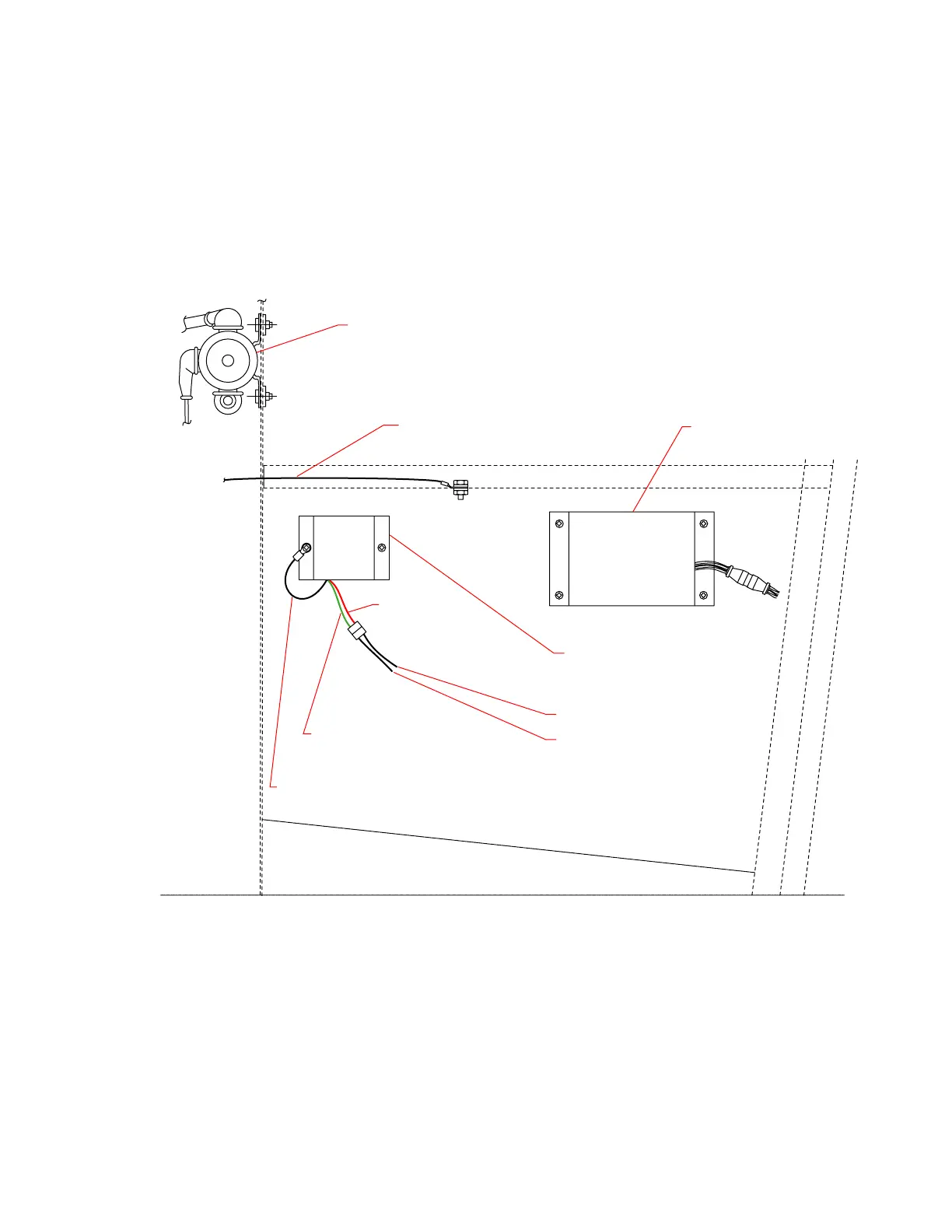

Electrical/Electronic Component Locator
Figure 1 (Sheet 6 of 8)
BLACK
GREEN (PIN 1)
RED (PIN 2)
W2E20 (PIN 1)
W2B20 (PIN 2)
BENEATH FORWARD BAGGAGE COMPARTMENT FLOOR
LEFT SIDE, LOOKING INBOARD
ALTERNATOR
AND
ENGINE / STARTER
GROUNDS
ALTERNATOR OUT SWITCH
ALTERNATOR,
DIMMER,
LOW VOLTAGE MONITOR
CONTROL ASSEMBLY
STARTER SOLENOID (REF)
