THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 2
Jun 1/03
4G18
57-40-00

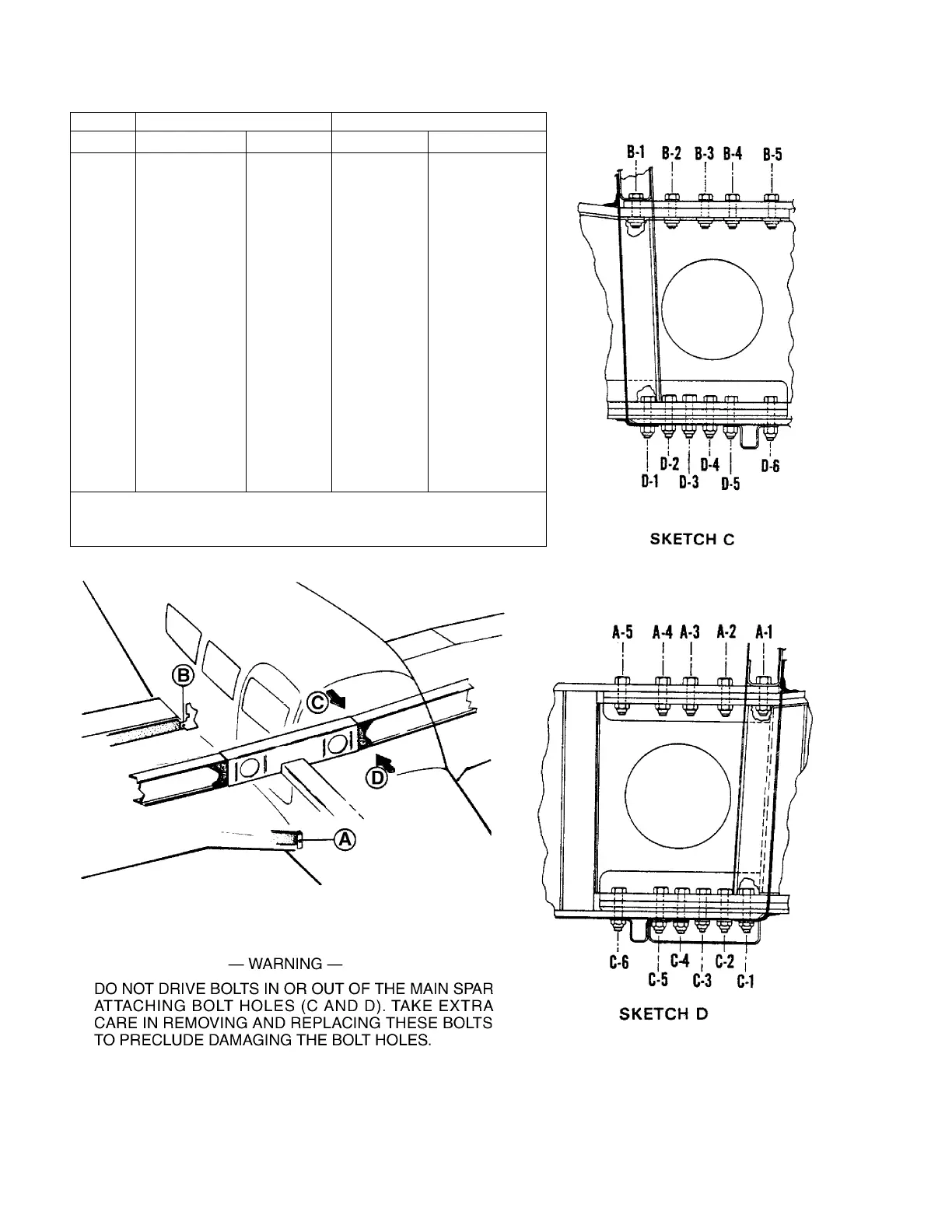

Wing Installation
Figure 1 (Sheet 1 of 2)
BOLT LEGEND WASHER
POSITION BOLT NUT UNDER HEAD UNDER NUT
A1 NAS464P6LA17 MS21042-6 AN960-616 AN960-616 (2 Max)
A2 NAS464P6LA16 MS21042-6 AN960-616 AN960-616 (2 Max)
A3 NAS464P6LA16 MS21042-6 AN960-616 AN960-616 (2 Max)
A4 NAS464P6LA16 MS21042-6 AN960-616 AN960-616 (2 Max)
A5 NAS464P6LA16 MS21042-6 AN960-616 AN960-616 (2 Max)
B1 NAS464P6LA15 H19300-6 AN960-616L K19301-6
B2 NAS464P6LA14 H19300-6 AN960-616 K19301-6
B3 NAS464P6LA14 H19300-6 AN960-616 K19301-6
B4 NAS464P6LA14 H19300-6 AN960-616 K19301-6
B5 NAS464P6LA14 H19300-6 AN960-616 K19301-6
C1 NAS464P5LA20 MS21042-5 AN960-516L AN960-516 (2 Max)
C2 NAS464P6LA20 MS21042-6 AN960-616L AN960-616 (2 Max)
C3 NAS464P6LA20 MS21042-6 AN960-616L AN960-616 (2 Max)
C4 NAS464P6LA20 MS21042-6 AN960-616L AN960-616 (2 Max)
C5 NAS464P6LA21 MS21042-6 AN960-616L 96352-3
C6 NAS464P5LA21 MS21042-5 AN960-516L 96352-2
D1 NAS464P5LA20 MS21042-5 AN960-516L AN960-516 (2 Max)
D2 NAS464P6LA20 MS21042-6 AN960-616L AN960-616 (2 Max)
D3 NAS464P6LA20 MS21042-6 AN960-616L AN960-616 (2 Max)
D4 NAS464P6LA20 MS21042-6 AN960-616L AN960-616 (2 Max)
D5 NAS464P6LA21 MS21042-6 AN960-616L 96352-3
D6 NAS464P5LA21 MS21042-5 AN960-516L 96352-2
TORQUE BOLT HEADS ON UPPER SPAR CAP & NUT ON LOWER SPAR CAP
AS FOLLOWS: 5/16 INCH BOLT = 205-225 IN-LBS
3/8 INCH BOLT = 360-390 IN-LBS
