THE NEW PIPER AIRCRAFT, INC.
PA-32-301FT / 301XTC
MAINTENANCE MANUAL
PAGE 10
Jun 1/03
5C16
74-10-00

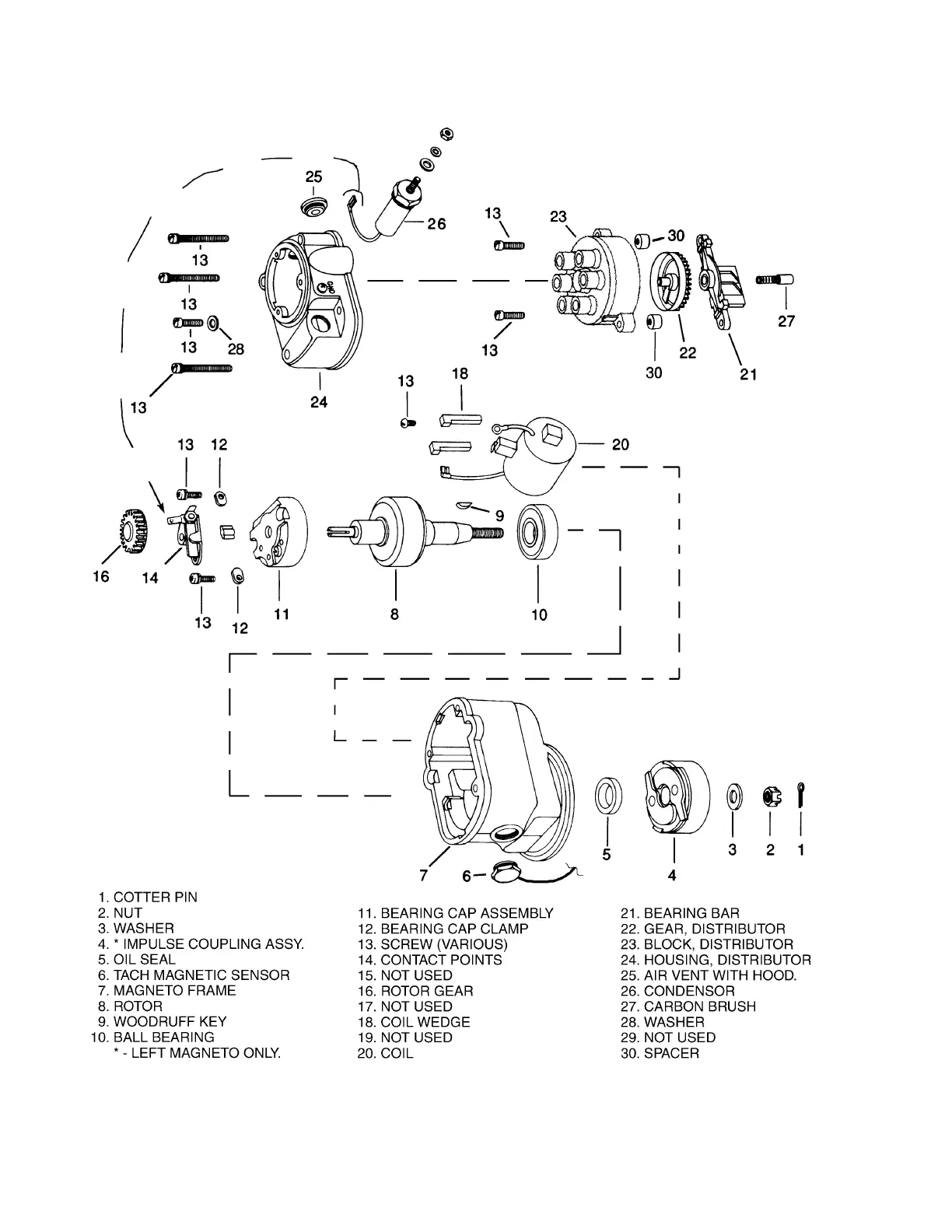

Exploded View of 6300 Series Magneto
Figure 8
