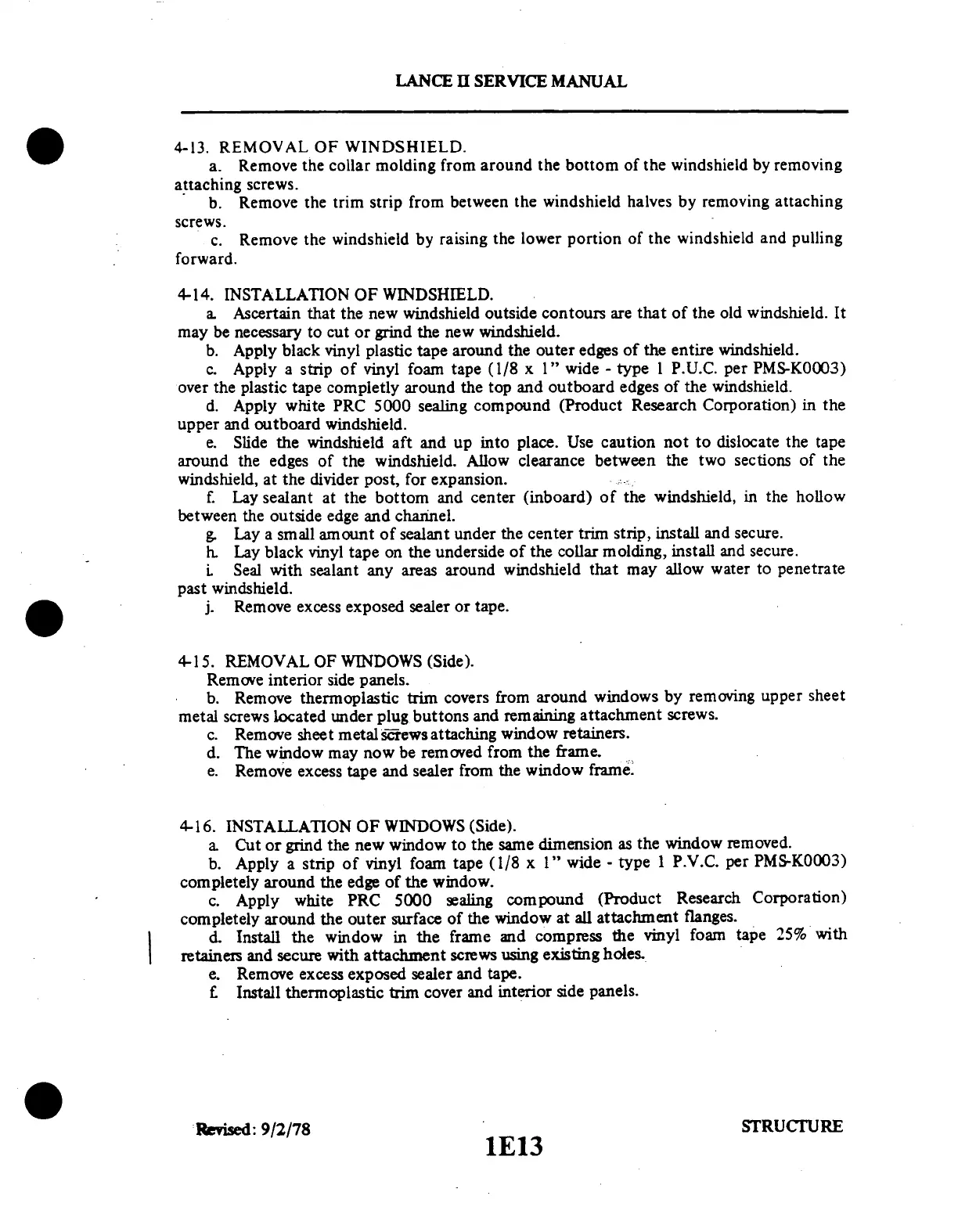

LANCE II SERVICE MANUAL
4-13.
REMOVAL OF
WINDSHIELD.
a.
Remove the
collar molding
from around
the bottom
of the windshield
by
removing
attaching
screws.
b. Remove
the
trim strip
from
between
the windshield
halves
by removing
attaching
screws.
c.
Remove
the windshield
by raising
the lower
portion
of the windshield
and pulling
forward.
4-14. INSTALLATION OF WINDSHIELD.
a.
Ascertain that the
new windshield outside
contours are
that of the old windshield.
It
may be necessary
to cut or grind the new
windshield.
b. Apply black
vinyl plastic
tape around the outer
edges of the
entire windshield.
c. Apply
a strip of
vinyl foam
tape (1/8 x
1" wide - type
1 P.U.C.
per PMS-K0003)
over the plastic
tape completly
around
the top
and outboard
edges of
the windshield.
d. Apply
white PRC 5000
sealing compound
(Product Research
Corporation) in
the
upper
and outboard
windshield.
e. Slide
the windshield
aft and up into
place. Use caution
not to dislocate
the tape
around the
edges of the windshield.
Allow clearance
between
the two sections of
the
windshield,
at the divider
post, for expansion.
f. Lay sealant
at the
bottom and
center (inboard)
of
the windshield,
in the hollow
between
the outside edge
and channel.
g. Lay a small
amount
of sealant
under the
center trim
strip, install
and secure.
h
Lay black
vinyl
tape on
the underside
of
the collar
molding,
install
and secure.
i
Seal with sealant
any areas
around
windshield
that may allow
water to
penetrate
past windshield.
j.
Remove excess
exposed sealer or
tape.
4-15. REMOVAL OF WINDOWS (Side).
Remove
interior
side
panels.
b.
Remove
thermoplastic
trim
covers
from around
windows
by removing
upper sheet
metal screws
located
under plug
buttons
and remaining
attachment
screws.
c.
Remove
sheet
metal screwsattaching
window
retainers.
d. The
window
may
now be
removed
from
the frame.
e. Remove
excess
tape and sealer
from the
window frame.
4-16. INSTALLATION
OF
WINDOWS
(Side).
a Cut
or grind
the new
window
to the
same dimension
as the window
removed.
b. Apply
a
strip of
vinyl
foam tape
(1/8
x 1"
wide -
type 1
P.V.C.
per PMS-K0003)
completely
around
the
edge of
the window.
c. Apply
white
PRC
5000
sealing
compound
(Product
Research
Corporation)
completely
around
the
outer
surface
of the window
at
all attachment
flanges.
d.
Install
the
window
in
the frame
and compress
the
vinyl
foam
tape
25%
with
retainers
and
secure
with
attachment
screws
using
existing
holes.
e. Remove
excess
exposed
sealer and
tape.
f Install
thermoplastic
trim cover
and interior
side
panels.
Revised:
9/2/78
STRUCTURE
1E13
