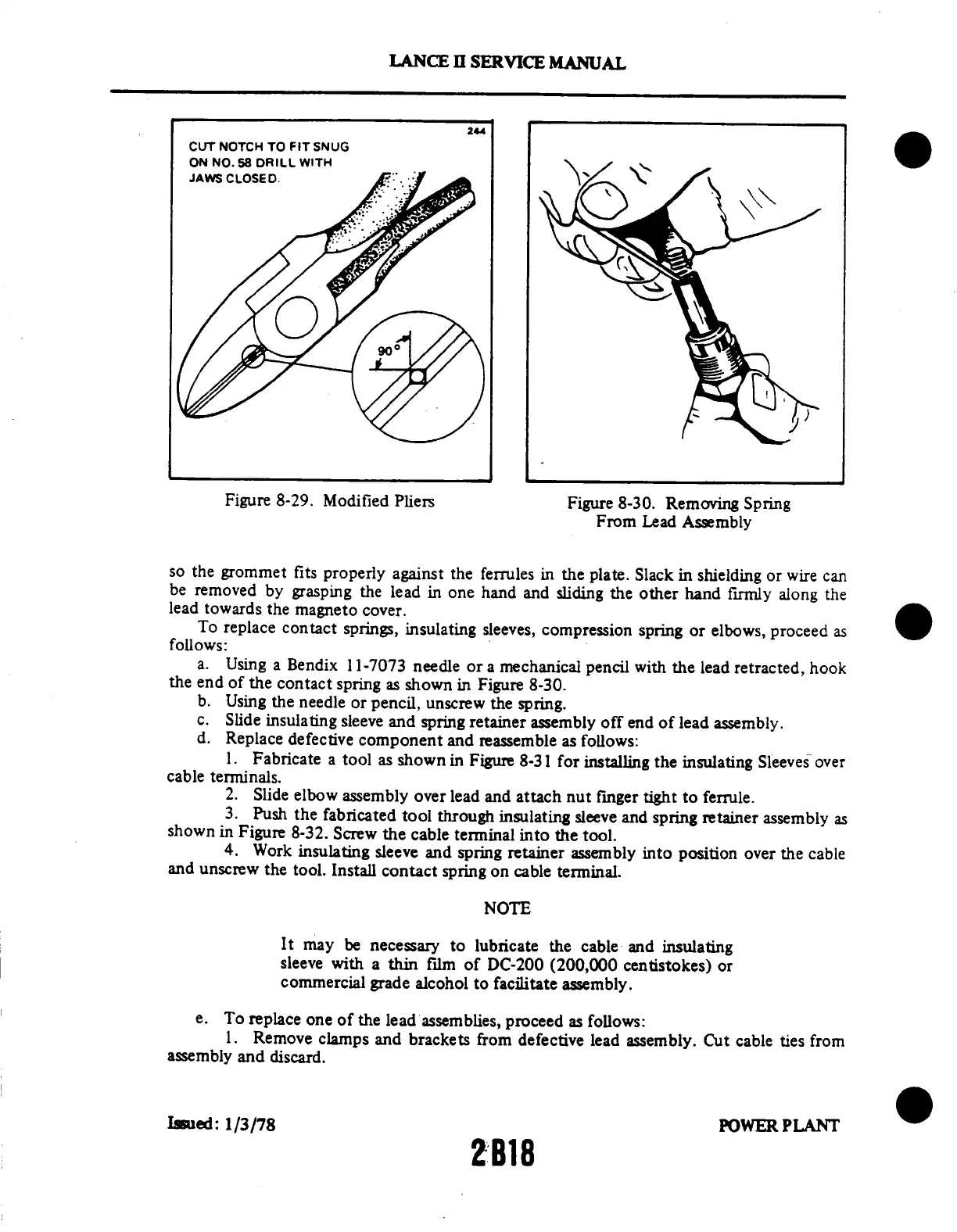

Figure
8-29.
Modified
Pliers
Figure
8-30.
Removing
Spring
From
Lead
Assembly
so
the
grommet
fits
properly
against
the
ferrules
in
the
plate.
Slack
in
shielding
or wire
can
be
removed
by
grasping
the
lead
in
one
hand
and
sliding
the
other
hand
firmly
along
the
lead
towards
the
magneto
cover.
To
replace
contact
springs,
insulating
sleeves,
compression
spring
or
elbows,
proceed
as
follows:
a.
Using
a
Bendix
11-7073
needle
or a
mechanical
pencil
with
the
lead
retracted,
hook
the
end
of
the
contact
spring
as
shown
in
Figure
8-30.
b.
Using
the
needle
or
pencil,
unscrew
the
spring.
c.
Slide
insulating
sleeve
and
spring
retainer
assembly
off
end
of
lead
assembly.
d.
Replace
defective
component
and
reassemble
as
follows:
1.
Fabricate
a tool
as shown
in
Figure
8-31
for
installing
the
insulating
Sleeves
over
cable
terminals.
2.
Slide
elbow
assembly
over
lead
and
attach
nut
finger
tight
to
ferrule.
3.
Push
the
fabricated
tool
through
insulating
sleeve
and
spring
retainer
assembly
as
shown
in
Figure
8-32.
Screw
the
cable
terminal
into
the
tool.
4.
Work
insulating
sleeve
and
spring
retainer
assembly
into
position
over
the
cable
and
unscrew
the
tool.
Install
contact
spring
on
cable
terminal.
NOTE
It
may
be
necessary
to
lubricate
the
cable
and
insulating
sleeve
with
a
thin
film
of
DC-200
(200,000
centistokes)
or
commercial
grade
alcohol
to
facilitate
assembly.
e.
To
replace
one
of
the
lead
assemblies,
proceed
as
follows:
1.
Remove
clamps
and
brackets
from
defective
lead
assembly.
Cut
cable
ties
from
assembly
and
discard.
Issued:
1/3/78
POWER
PLANT
2B18
LANCE
II
SERVICE
MANUAL
