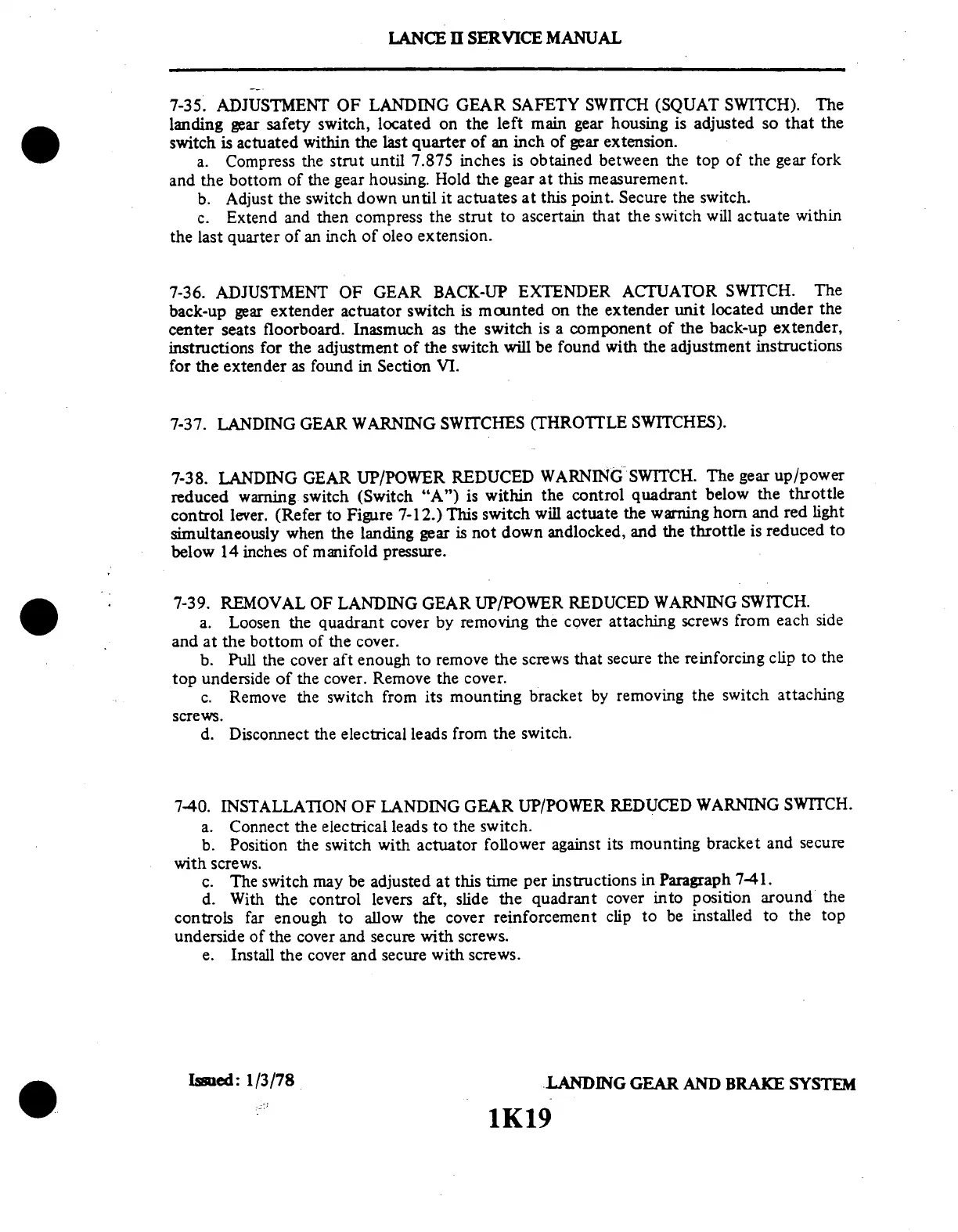

7-35.
ADJUSTMENT
OF LANDING
GEAR
SAFETY
SWITCH (SQUAT
SWITCH).
The
landing gear
safety
switch,
located on
the left
main gear
housing
is adjusted
so that
the
switch is
actuated
within the
last quarter
of an inch
of gear
extension.
a. Compress
the strut
until 7.875
inches
is obtained
between
the top
of the
gear fork
and the
bottom
of the gear
housing.
Hold the
gear at this
measurement.
b.
Adjust
the switch
down
until
it
actuates
at this
point.
Secure
the
switch.
c.
Extend
and then
compress
the
strut
to ascertain
that
the
switch will
actuate
within
the last
quarter
of
an inch
of oleo
extension.
7-36.
ADJUSTMENT
OF
GEAR
BACK-UP
EXTENDER
ACTUATOR
SWITCH.
The
back-up
gear extender
actuator
switch
is mounted
on
the extender
unit
located
under
the
center
seats
floorboard.
Inasmuch
as
the
switch
is a component
of
the back-up
extender,
instructions
for the
adjustment
of
the switch
will
be found
with the
adjustment
instructions
for
the extender as
found in Section
VI.
7-37.
LANDING
GEAR
WARNING
SWITCHES
(THROTTLE
SWITCHES).
7-38.
LANDING
GEAR
UP/POWER
REDUCED
WARNING
SWITCH.
The
gear
up/power
reduced
warning
switch
(Switch
"A") is
within
the control
quadrant
below
the throttle
control
lever. (Refer
to
Figure
7-12.)
This switch
will
actuate
the warning
horn
and
red light
simultaneously
when
the landing
gear is
not down
andlocked,
and the
throttle
is reduced
to
below
14
inches
of manifold
pressure.
7-39.
REMOVAL
OF LANDING
GEAR UP/POWER
REDUCED
WARNING
SWITCH.
a. Loosen
the quadrant
cover
by removing
the
cover
attaching
screws
from
each side
and at the bottom
of the
cover.
b. Pull
the
cover
aft enough
to
remove
the
screws
that
secure
the reinforcing
clip
to
the
top underside
of
the cover.
Remove
the cover.
c.
Remove
the
switch
from
its
mounting
bracket
by removing
the
switch
attaching
screws.
d.
Disconnect
the electrical
leads from
the switch.
7-40. INSTALLATION
OF LANDING
GEAR
UP/POWER
REDUCED
WARNING
SWITCH.
a.
Connect
the electrical
leads
to the switch.
b. Position
the switch
with
actuator
follower
against
its
mounting
bracket
and
secure
with screws.
c.
The switch
may
be
adjusted
at this
time
per instructions
in
Paragraph
741.
d. With
the
control
levers
aft, slide
the
quadrant
cover
into
position
around
the
controls
far
enough
to
allow
the cover
reinforcement
clip
to be
installed
to
the
top
underside
of the cover
and secure
with
screws.
e. Install
the cover and secure
with screws.
Issued:
1/3/78
LANDING
GEAR AND
BRAKE SYSTEM
1K19
