1.
CONTROL
ARM
2. RPM
ADJUSTMENT
SCREW
3. CONTROL WHEEL
LOW PITCH
LOW PITCH
4.
LOCK NUT
1
INSTALL
CABLE END
5.
BOLT
ASSEMBLY
2
STUD
IN
THIS
HOLE
5 PARALLELTOAPPROXIMATE
CENTER
LINE OF GOVERNOR
HIGH PITCH
A 9555

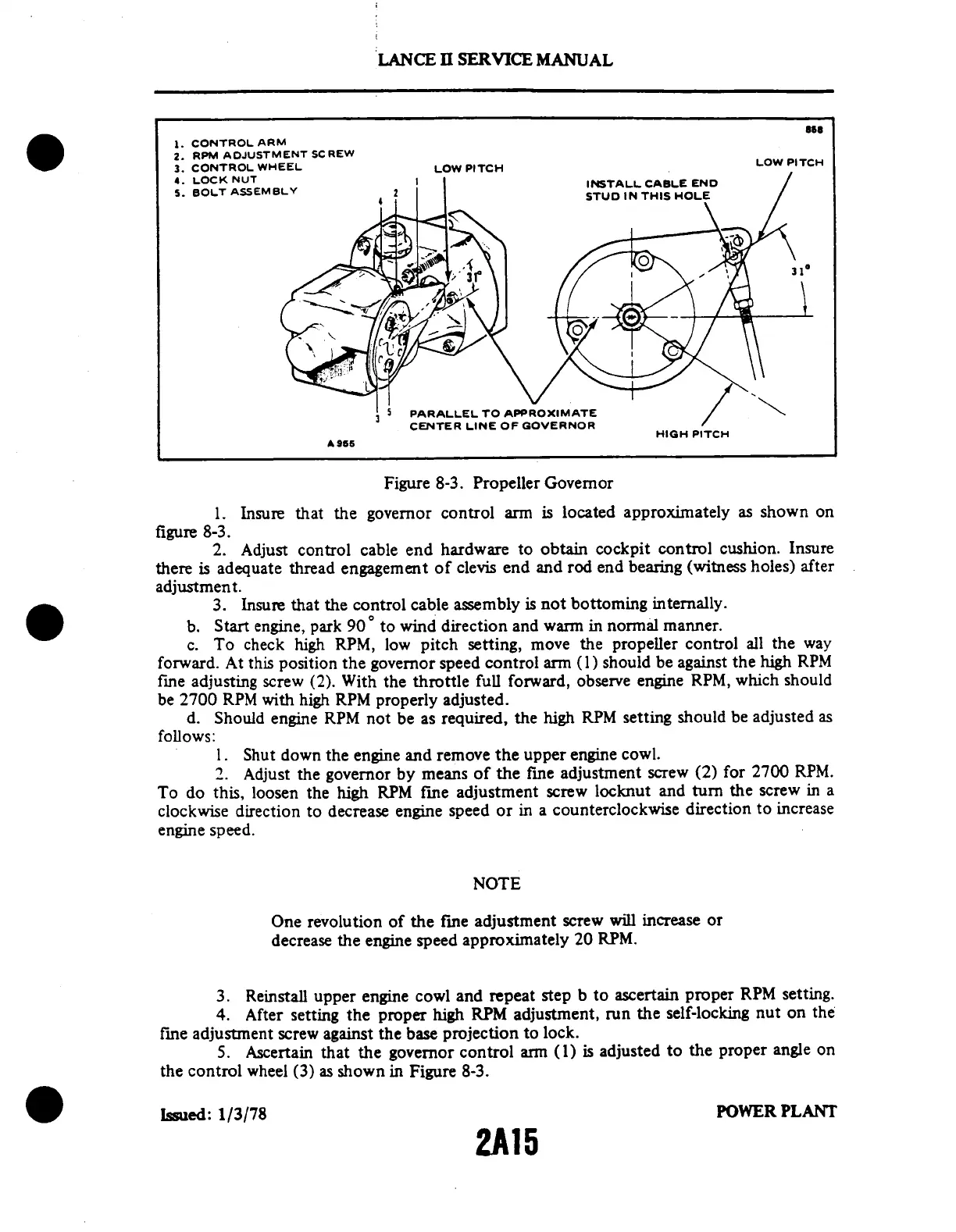

Figure 8-3.
Propeller Governor
1.
Insure that
the
governor
control
arm is
located
approximately
as
shown
on
figure 8-3.
2.
Adjust
control
cable end
hardware
to obtain
cockpit
control
cushion.
Insure
there
is adequate
thread
engagement
of
clevis
end and
rod end
bearing
(witness
holes)
after
adjustment.
3. Insure
that
the control
cable
assembly
is
not bottoming
internally.
b. Start
engine, park
90
°
to
wind direction
and
warm in normal
manner.
c.
To check
high RPM,
low
pitch setting,
move
the
propeller
control
all the way
forward.
At this position
the
governor
speed control
arm
(1) should
be against
the high
RPM
fine
adjusting
screw (2). With
the throttle
full forward,
observe
engine RPM,
which should
be
2700 RPM with high
RPM properly adjusted.
d.
Should engine
RPM not
be as required,
the high
RPM setting
should be
adjusted as
follows:
1. Shut down
the engine and remove
the upper engine cowl.
2.
Adjust
the governor
by means
of
the fine
adjustment
screw
(2) for
2700 RPM.
To do
this,
loosen
the high
RPM
fine
adjustment
screw
locknut
and
turn
the screw
in
a
clockwise
direction
to decrease
engine
speed
or in
a counterclockwise
direction
to
increase
engine speed.
NOTE
One
revolution
of
the
fine adjustment
screw
will
increase
or
decrease
the engine
speed
approximately
20 RPM.
3.
Reinstall
upper
engine
cowl
and
repeat
step
b to
ascertain
proper
RPM
setting.
4. After
setting
the proper
high
RPM adjustment,
run the
self-locking
nut
on the
fine
adjustment
screw
against
the
base projection
to lock.
5. Ascertain
that
the governor
control
arm (1)
is adjusted
to the
proper
angle on
the control wheel
(3) as shown in
Figure 8-3.
Issued:
1/3/78
POWER
PLANT
2A15
LANCE
II SERVICE MANUAL
