BARREL
7
WRAPS
COUNT
14
CABLE
WRAPS
RIGHT
CABLE
7
WRAPS
CENTER
OF
CABLE

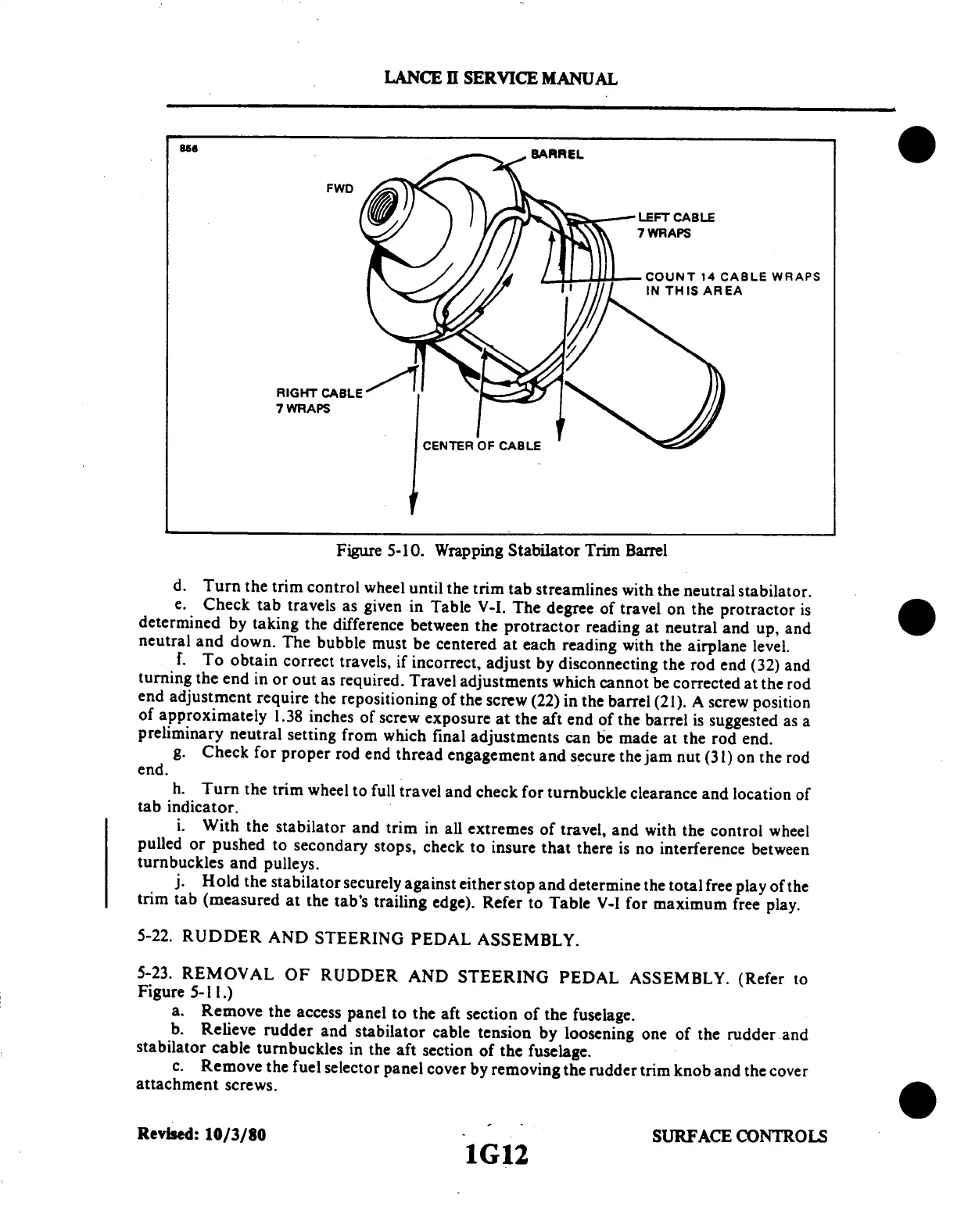

Figure
5-10.
Wrapping
Stabilator
Trim
Barrel
d.
Turn
the
trim
control
wheel
until
the
trim
tab
streamlines
with
the
neutral
stabilator.
e.
Check
tab
travels
as
given
in
Table
V-I.
The
degree
of
travel
on
the
protractor
is
determined
by
taking
the
difference
between
the
protractor
reading
at
neutral
and
up,
and
neutral
and
down.
The
bubble
must
be
centered
at
each
reading
with
the
airplane
level.
f.
To
obtain
correct
travels,
if
incorrect,
adjust
by
disconnecting
the
rod
end
(32)
and
turning
the
end
in
or
out
as
required.
Travel
adjustments
which
cannot
be
corrected
at
the
rod
end
adjustment
require
the
repositioning
of
the
screw
(22)
in
the
barrel
(21).
A
screw
position
of
approximately
1.38
inches
of
screw
exposure
at
the
aft
end
of
the
barrel
is
suggested
as
a
preliminary
neutral
setting
from
which
final
adjustments
can
be
made
at
the
rod
end.
g.
Check
for
proper
rod
end
thread
engagement
and
secure
the
jam
nut
(31)
on
the
rod
end.
h.
Turn
the
trim
wheel
to
full
travel
and
check
for
turnbuckle
clearance
and
location
of
tab
indicator.
i.
With
the
stabilator
and
trim
in
all
extremes
of
travel,
and
with
the
control
wheel
pulled
or
pushed
to
secondary
stops,
check
to
insure
that
there
is
no
interference
between
turnbuckles
and
pulleys.
j.
Hold
the
stabilator
securely
against
either
stop
and
determine
the
total
free
play
of
the
trim
tab
(measured
at
the
tab's
trailing
edge).
Refer
to
Table
V-I
for
maximum
free
play.
5-22.
RUDDER
AND
STEERING
PEDAL
ASSEMBLY.
5-23.
REMOVAL
OF
RUDDER
AND
STEERING
PEDAL
ASSEMBLY.
(Refer
to
Figure
5-11.)
a.
Remove
the
access
panel
to
the
aft
section
of
the
fuselage.
b.
Relieve
rudder
and
stabilator
cable
tension
by
loosening
one
of
the
rudder
and
stabilator
cable
turnbuckles
in
the
aft
section
of
the
fuselage.
c.
Remove
the
fuel
selector
panel
cover
by
removing
the
rudder
trim
knob
and
the
cover
attachment
screws.
Revised:
10/3/80
SURFACE
CONTROLS
LANCE
II SERVICE
MANUAL
1G12
