Piper PA-32RT-300T User Manual

LANCE
II SERVICE
MANUAL
2051
1. CONTROL
WHEEL,
TRIM
16. BOLT,
BUSHINGS,
WASHER
& NUT
2. INDICATOR,
TRIM
POSITION
17. BOLT&
WASHERS
3. DRUM,
TRIM
CABLE
18.
GUARD,
CABLE
4.
MOUNTING
BRACKET
19. GUARD,
CABLE
5. CLEVIS
PIN, WASHER
& COTTER
PIN
20.
BOLT
& WASHER
6. PULLEY
CLUSTER
21. BARREL
7. BOLT,
BUSHING,
WASHER
&
NUT
22.
SCREW
8.
CABLE,
RIGHT
FORWARD
23.
GUIDE,
SCREW
9. CABLE,
LEFT
FORWARD
24.
BEARING
10. TURNBUCKLE,
RIGHT
25.
BEARING
11.
TURNBUCKLE,
LEFT
26.
BEARING
12. CABLE,
AFT
27.
WASHER
13. PULLEY
CLUSTER
28. SNAP
RING
14.
BOLT,
BUSHING,
WASHERS
& NUT
29.
BOLT,
BUSHING,
WASHERS
&
NUT
15.
GUARD,
CABLE
30. PUSH
ROD
31. RETAINER
NUT
32. ROD END
33.
GUARD
CABLE
PLATE
34. PULLEY
CLUSTER
35.
PULLEY
CLUSTER
36. PULLEY
CLUSTER
37.
BOLT,
WASHER
& NUT
38. GUARD,
CABLE
39.
RUB
BLOCK
40. RETAINER
41. PULLEY
CLUSTER
42. WASHER,
SPACER
43.
WASHERS
44.
BUSHING
45.
COTTER
PIN
46.
SAFETY
WIRE
47.
BOLT &
WASHER

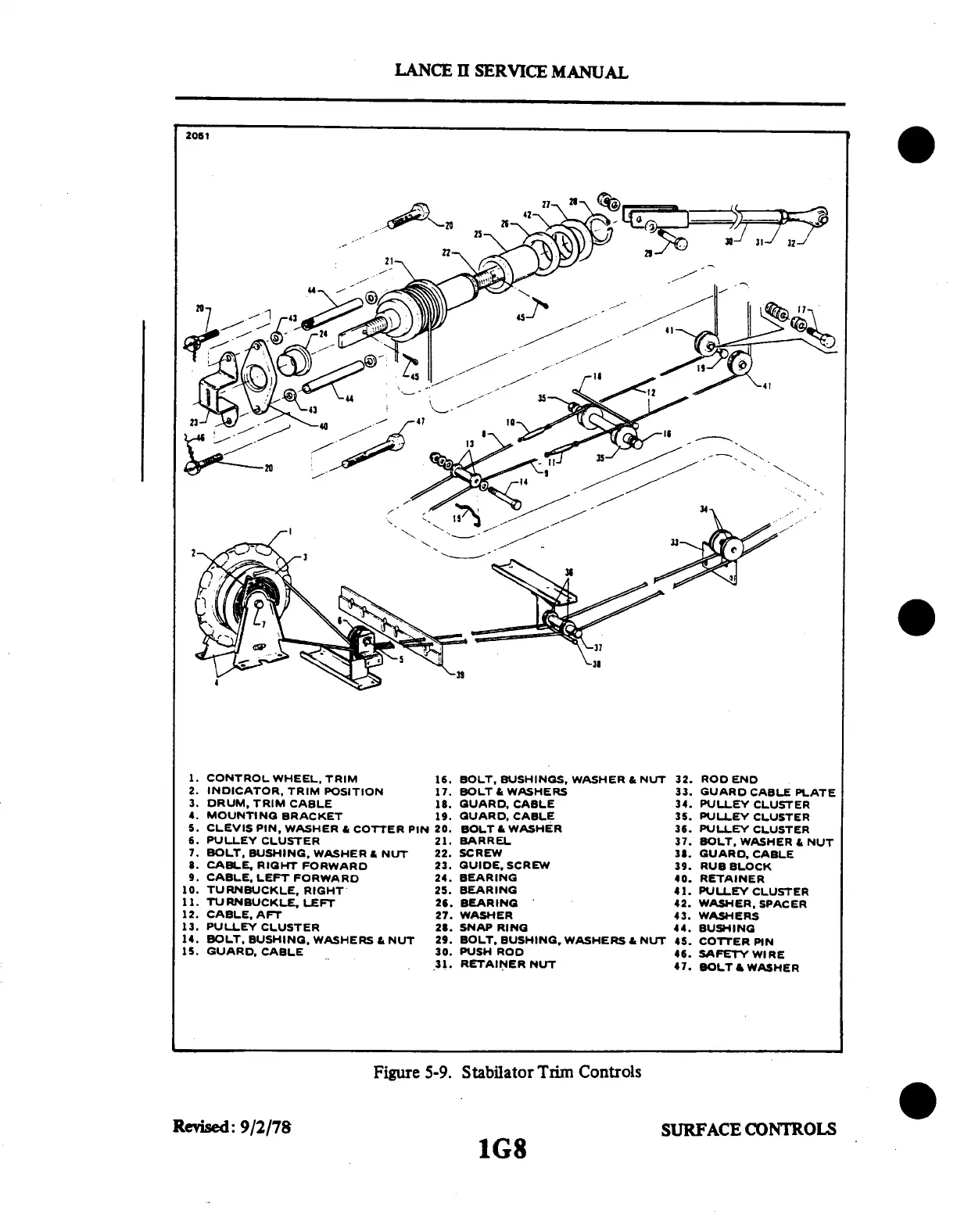

Figure
5-9. Stabilator
Trim Controls
Revised:
9/2/78
1G8
SURFACE
CONTROLS
