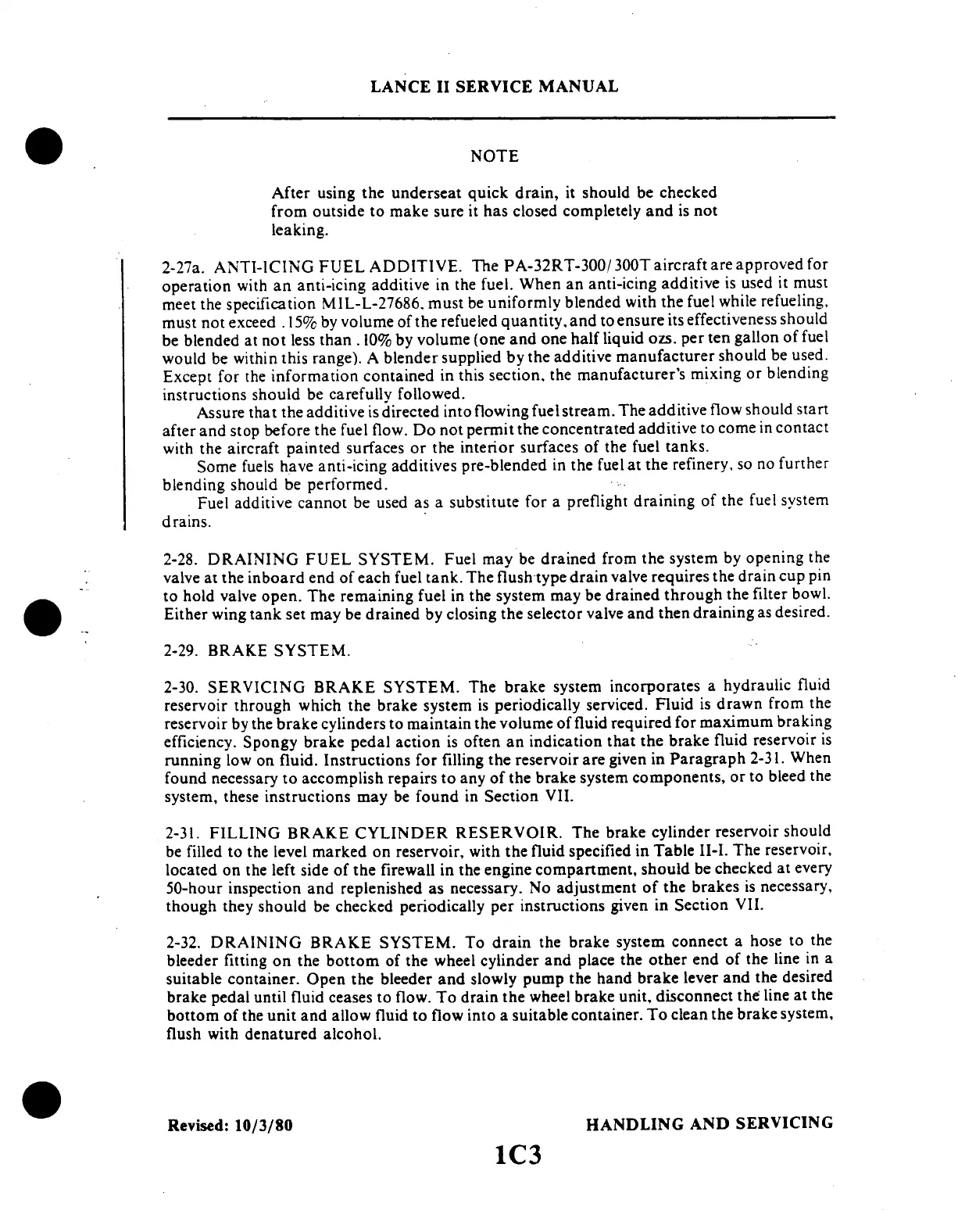

LANCE
II SERVICE
MANUAL
NOTE
After using
the
underseat
quick
drain, it
should
be checked
from
outside
to make
sure it has
closed
completely
and
is not
leaking.
2-27a.
ANTI-ICING
FUEL
ADDITIVE.
The PA-32RT-300/300Taircraftareapproved
for
operation
with an
anti-icing
additive
in
the fuel.
When
an anti-icing
additive
is used
it must
meet
the
specification
MIL-L-27686.
must
be uniformly
blended
with
the
fuel while
refueling,
must
not
exceed
. 15%
by
volume
of
the refueled
quantity,
and to
ensure
its effectiveness
should
be
blended
at
not
less than
. 10%
by
volume
(one
and
one
half
liquid
ozs.
per ten
gallon
of
fuel
would
be within
this range).
A blender
supplied
by
the additive
manufacturer
should
be
used.
Except
for the
information
contained
in
this section,
the
manufacturer's
mixing
or blending
instructions
should
be
carefully
followed.
Assure
that
the additive
is directed
into
flowing
fuel
stream.
The
additive
flow
should
start
after
and
stop
before
the
fuel flow.
Do not
permit
the concentrated
additive
to come
in contact
with
the aircraft
painted
surfaces
or
the interior
surfaces
of the
fuel
tanks.
Some
fuels
have anti-icing
additives
pre-blended
in the
fuel at
the refinery,
so
no further
blending
should
be performed.
Fuel additive
cannot
be
used
as a substitute
for
a preflight
draining
of
the fuel
system
drains.
2-28. DRAINING
FUEL
SYSTEM.
Fuel may
be drained
from the
system
by opening
the
valve
at the
inboard
end of
each fuel
tank. The
flush
type drain
valve
requires
the drain
cup
pin
to
hold
valve
open.
The remaining
fuel
in the
system
may
be drained
through
the filter
bowl.
Either
wing tank
set may
be drained
by closing
the selector
valve
and
then draining
as desired.
2-29.
BRAKE
SYSTEM.
2-30.
SERVICING
BRAKE
SYSTEM.
The
brake
system
incorporates
a hydraulic
fluid
reservoir
through
which
the
brake
system
is periodically
serviced.
Fluid
is drawn
from
the
reservoir
by
the brake
cylinders
to maintain
the
volume
of
fluid required
for maximum
braking
efficiency.
Spongy
brake
pedal
action
is
often
an indication
that the
brake
fluid
reservoir
is
running
low
on fluid.
Instructions
for
filling
the reservoir
are given
in
Paragraph
2-31.
When
found
necessary
to accomplish
repairs
to
any of
the brake
system
components,
or to bleed
the
system,
these
instructions
may
be found
in Section
VII.
2-31.
FILLING
BRAKE
CYLINDER
RESERVOIR.
The
brake
cylinder
reservoir
should
be
filled
to the
level
marked
on reservoir,
with
the fluid
specified
in Table
II-I.
The reservoir,
located
on
the left
side of
the firewall
in the
engine
compartment,
should
be
checked
at every
50-hour
inspection
and replenished
as
necessary.
No
adjustment
of the
brakes
is necessary,
though
they
should
be checked
periodically
per instructions
given
in Section
VII.
2-32.
DRAINING
BRAKE
SYSTEM.
To drain
the brake
system
connect
a hose
to the
bleeder
fitting
on
the bottom
of the
wheel
cylinder
and
place
the other
end
of
the line
in a
suitable
container.
Open
the bleeder
and slowly
pump
the hand
brake
lever
and
the desired
brake
pedal
until
fluid
ceases
to flow.
To
drain the
wheel
brake
unit,
disconnect
the line
at the
bottom
of the
unit
and
allow
fluid
to flow
into
a suitable
container.
To clean
the
brake
system,
flush
with denatured
alcohol.
Revised:
10/3/80
HANDLING
AND
SERVICING
1C3
