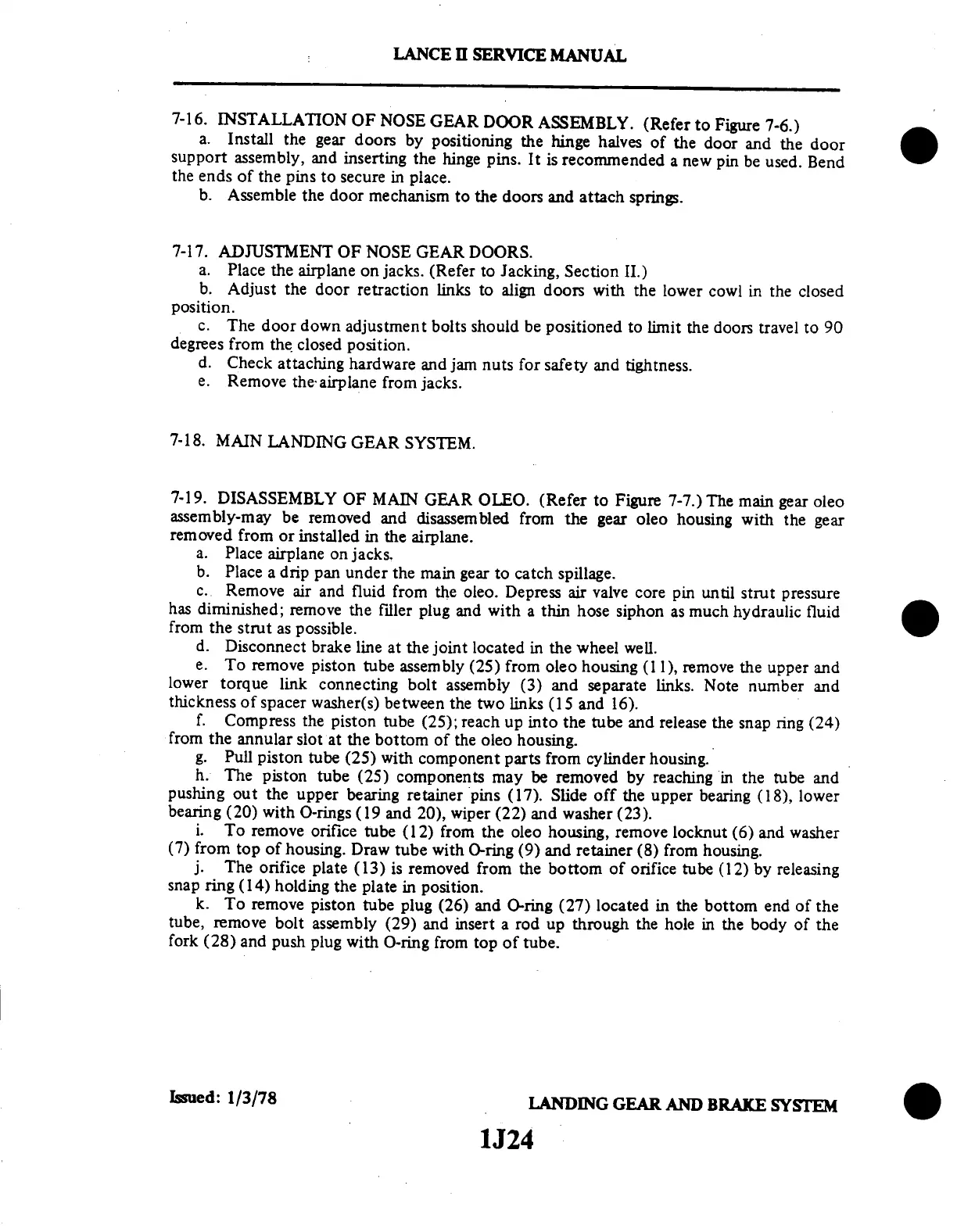

LANCE
II SERVICE
MANUAL
7-16.
INSTALLATION
OF
NOSE
GEAR
DOOR
ASSEMBLY.
(Refer
to Figure
7-6.)
a.
Install
the
gear
doors
by
positioning
the
hinge
halves
of
the
door
and
the
door
support
assembly,
and
inserting
the
hinge
pins.
It is
recommended
a new
pin
be
used.
Bend
the
ends
of
the
pins
to
secure
in place.
b.
Assemble
the
door
mechanism
to
the doors
and
attach
springs.
7-17.
ADJUSTMENT
OF NOSE
GEAR
DOORS.
a.
Place
the
airplane
on
jacks.
(Refer
to Jacking,
Section
II.)
b.
Adjust
the door
retraction
links
to
align
doors
with
the
lower
cowl
in
the
closed
position.
c.
The
door
down
adjustment
bolts
should
be
positioned
to
limit
the
doors
travel
to
90
degrees
from
the
closed
position.
d.
Check
attaching
hardware
and
jam
nuts
for
safety
and
tightness.
e.
Remove
the
airplane
from
jacks.
7-18.
MAIN
LANDING
GEAR
SYSTEM.
7-19.
DISASSEMBLY
OF
MAIN
GEAR
OLEO.
(Refer
to
Figure
7-7.)
The
main
gear
oleo
assembly-may
be
removed
and
disassembled
from
the
gear
oleo
housing
with
the
gear
removed
from
or
installed
in
the
airplane.
a.
Place
airplane
on
jacks.
b. Place
a drip
pan
under
the
main
gear
to
catch
spillage.
c.
Remove
air
and
fluid
from
the
oleo.
Depress
air
valve
core
pin
until
strut
pressure
has
diminished;
remove
the
filler
plug
and
with
a
thin
hose
siphon
as
much
hydraulic
fluid
from
the
strut
as possible.
d.
Disconnect
brake
line
at
the joint
located
in
the
wheel
well.
e.
To
remove
piston
tube
assembly
(25)
from
oleo
housing
(11),
remove
the upper
and
lower
torque
link
connecting
bolt
assembly
(3)
and
separate
links.
Note
number
and
thickness
of
spacer
washer(s)
between
the two
links
(15
and
16).
f.
Compress
the
piston
tube
(25);
reach
up
into
the
tube
and
release
the
snap
ring
(24)
from
the
annular
slot
at
the
bottom
of
the
oleo
housing.
g.
Pull
piston
tube
(25)
with
component
parts
from
cylinder
housing.
h.
The
piston
tube
(25)
components
may
be
removed
by
reaching
in the
tube
and
pushing
out
the
upper
bearing
retainer
pins
(17).
Slide
off the
upper
bearing
(18),
lower
bearing
(20)
with
O-rings
(19
and
20),
wiper
(22)
and
washer
(23).
i.
To remove
orifice
tube
(12)
from
the
oleo
housing,
remove
locknut
(6)
and washer
(7) from
top
of housing.
Draw
tube
with
O-ring
(9)
and
retainer
(8)
from
housing.
j.
The
orifice
plate
(13)
is
removed
from
the
bottom
of
orifice
tube
(12)
by
releasing
snap
ring
(14)
holding
the
plate
in position.
k.
To remove
piston
tube
plug
(26)
and
O-ring
(27)
located
in the
bottom
end
of the
tube,
remove
bolt
assembly
(29)
and
insert
a rod
up
through
the
hole
in the
body
of
the
fork
(28)
and
push
plug
with
O-ring
from
top
of
tube.
Issued:
1/3/78
LANDING
GEAR
AND
BRAKE
SYSTEM
1J24
