Piper PA-32RT-300T User Manual

LANCE
II
SERVICE
MANUAL
1.
BRACKET,
SWITCH
ACTUATOR
2.
BOLT,
WASHERS,
NUT
AND
COTTER
PIN
3.
BOLT,
WASHERS,
NUT
AND
COTTER
PIN
4.
BOLT,
WASHERS.
NUT
AND
COTTER
PIN
5.
AXLE
NUT
6.
NUT
7. WASHER
8.
RETAINER
9.
O-RING
10.
VALVE
ASSEMBLY
11.
HOUSING,
OLEO
STRUT
12.
ORIFICE
TUBE
13.
PLATE,
ORIFICE
14.
SNAP
RING
15.
LINK
ASSEMBLY,
UPPER
16.
UNK
ASSEMBLY,
LOWER
17.
RETAINER
PIN,
BEARING
18.
BEARING,
UPPER
19.
O-RING,
OUTER
20.
BEARING,
LOWER
21.
O-RING,
INNER
22.
WIPER
STRIP
23.
WASHER
24.
SNAP
RING
25.
PISTON
TUBE
26.
PLUG
27.
O-RING
28.
FORK
ASSEMBLY
29.
BOLT
ASSEMBLY
30.
BRACKET
- SQUAT
SWITCH
31.
PLATE,
SPRING
ATTACHMENT
32.
PISTON
RING

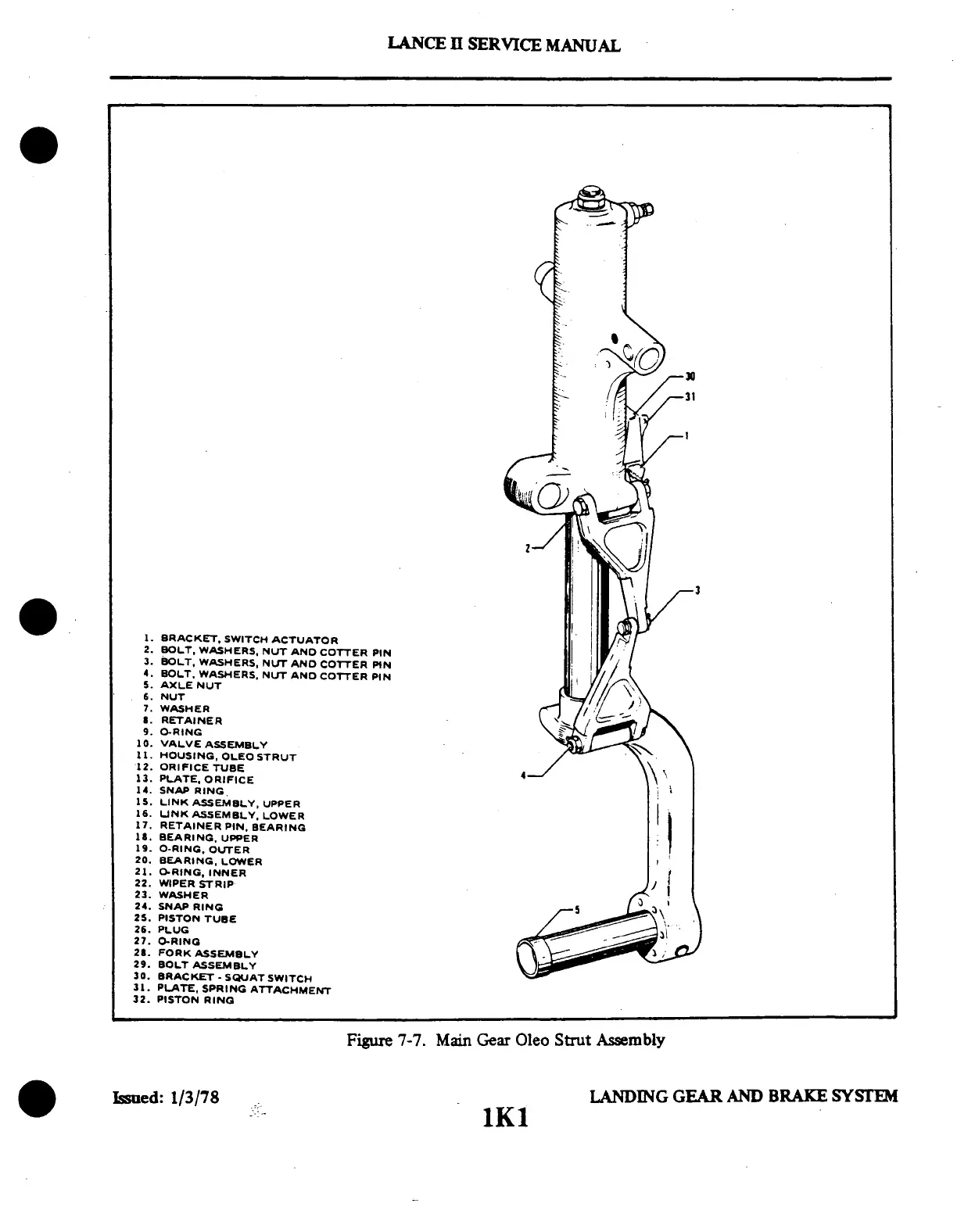

Figure
7-7.
Main
Gear
Oleo
Strut
Assembly
Issued:
1/3/78
LANDING
GEAR
AND
BRAKE
SYSTEM
1K1
