DATA
PLATE
(TOP OF
MAGNETO)
LANCE
II
SERVICE
MANUAL
280
RIGHT
MAIN
BREAKER
CONTACT
ASSEMBLY
RIGHT
MAGNETO
HIGH
TENSION
OUTLETS
1.
RIGHT
MAIN
CONTACT
ASSEMBLY
2.
LEFT
MAIN
CONTACT
ASSEMBLY
3. SCREW
4. LOCK
WASHER
5.
FLAT
WASHER
6. MAIN CAM
281
VIEW
A-A
3
4
-5
(TORQUE
SCREW
TO
21-25
INCH-POUNDS.)

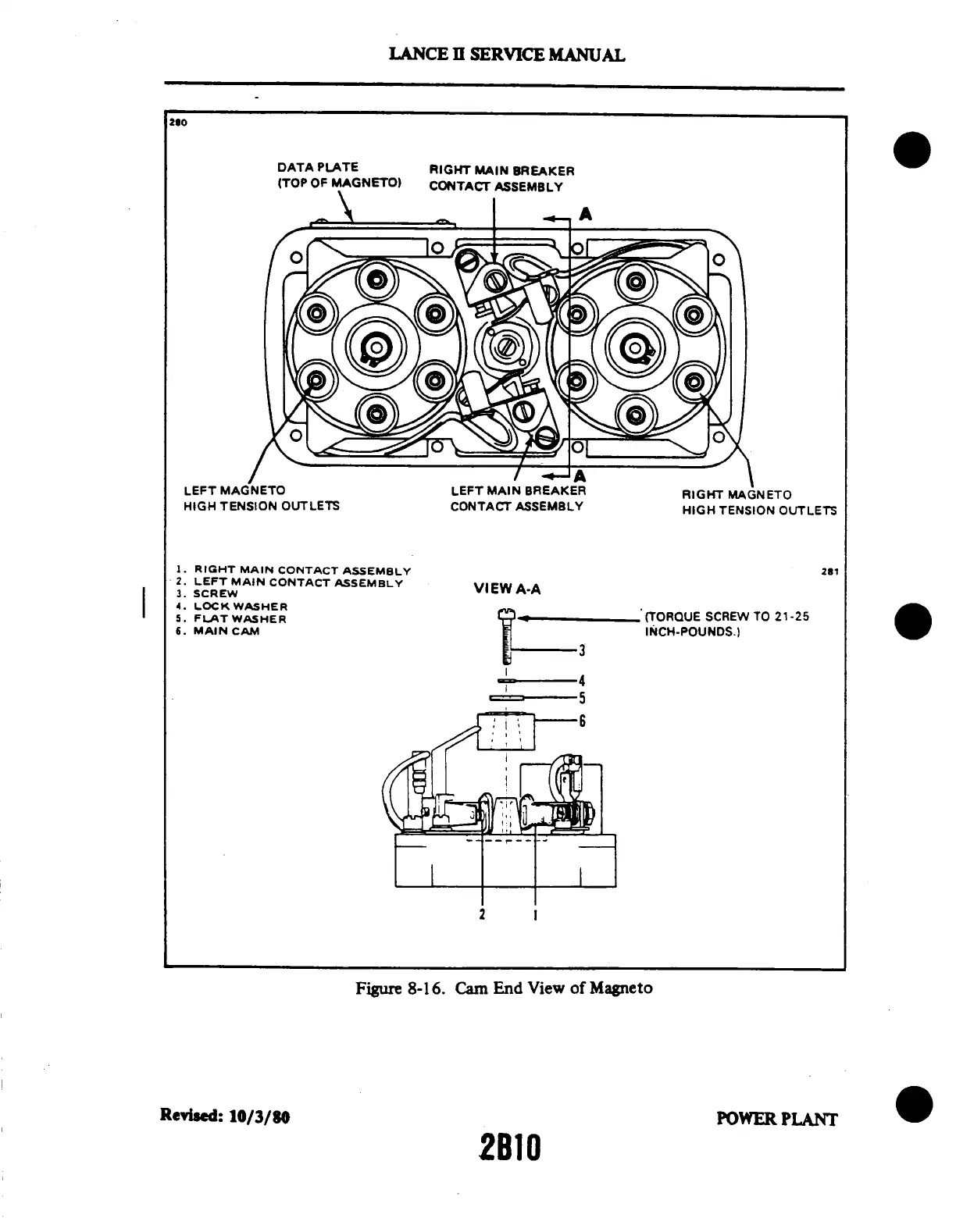

Figure
8-16.
Cam
End View
of
Magneto
Revised:
10/3/80
POWER
PLANT
2B10
