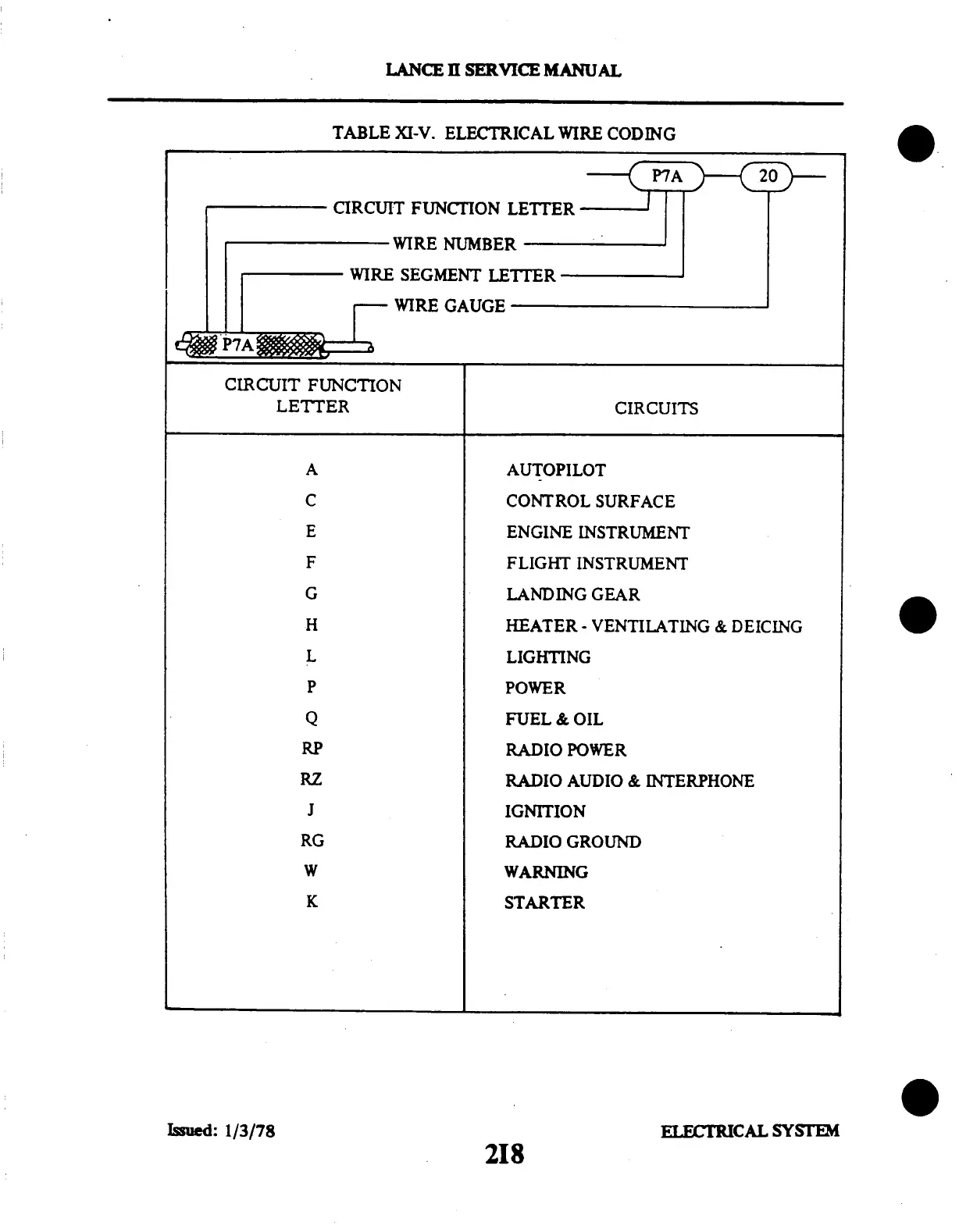

Piper PA-32RT-300T - Electrical Wire Coding

LANCE
II SERVICE
MANUAL
TABLE
XI-V.
ELECTRICAL
WIRE
CODING
CIRCUIT
FUNCTION
LETTER
WIRE
NUMBER
WIRE
SEGMENT
LETTER
WIRE
GAUGE
CIRCUIT
FUNCTION
LETTER
CIRCUITS
A
AUTOPILOT
C
CONTROL
SURFACE
E
ENGINE
INSTRUMENT
F
FLIGHT
INSTRUMENT
G
LANDING
GEAR
H
HEATER
- VENTILATING
&
DEICING
L
LIGHTING
P
POWER
Q
FUEL
&
OIL
RP
RADIO
POWER
RZ
RADIO
AUDIO
& INTERPHONE
J
IGNITION
RG
RADIO
GROUND
W
WARNING
K
STARTER
Issued:
1/3/78
ELECTRICAL
SYSTEM
218
