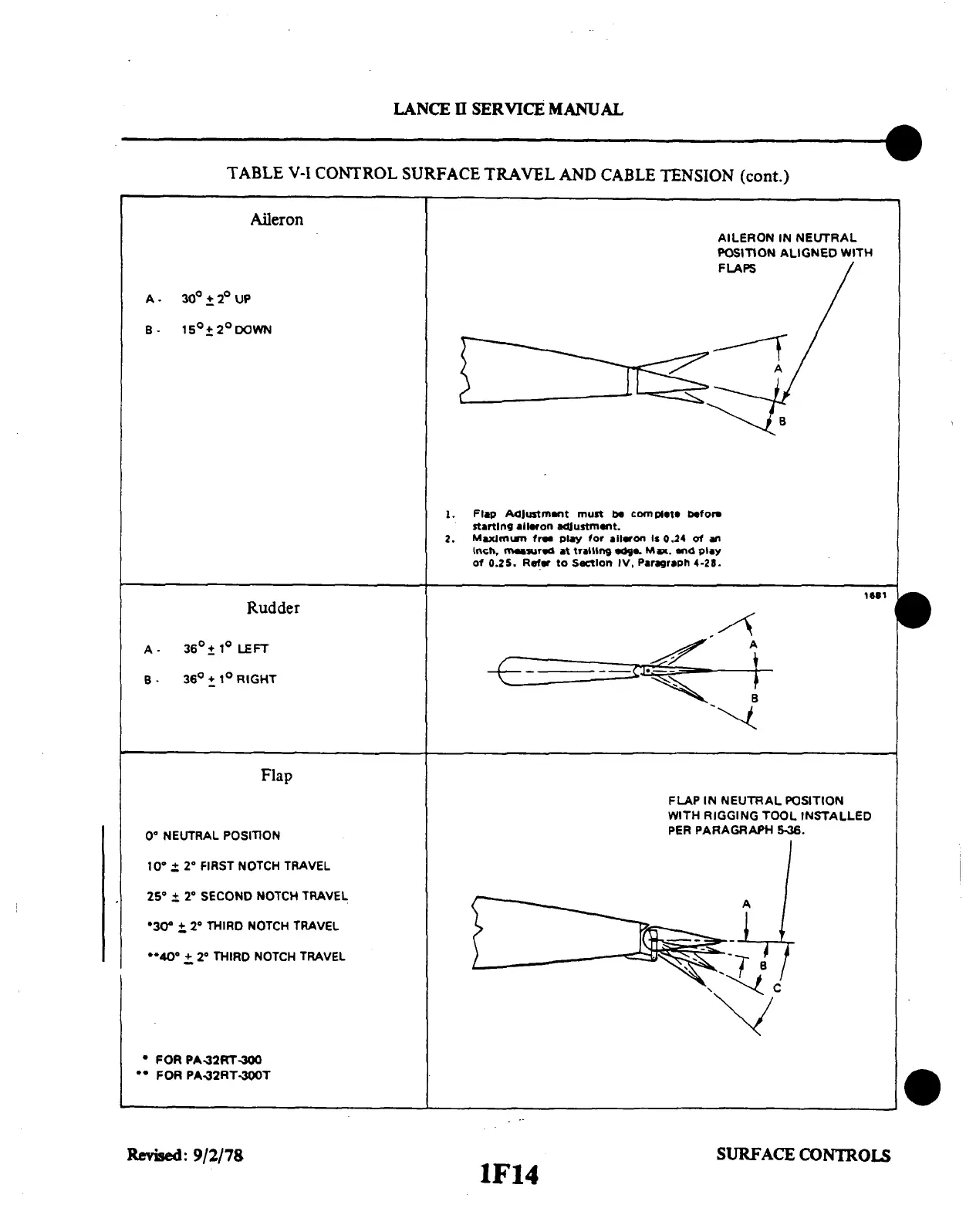

LANCE II SERVICE MANUAL
TABLE
V-I CONTROL
SURFACE
TRAVEL
AND
CABLE
TENSION
(cont.)
Aileron
AILERON IN NEUTRAL
POSITION ALIGNED WITH
FLAPS
A 30
°
2
°
UP
B-
15+2°
DOWN
1. Flap Adjustment
must be complete
before
starting aileron adjustment.
2.
Maximum free play
for aileron Is 0.24
of an
inch, measurd at trailing edge. Max. and play
of 0.25. Refer to Section IV. Paragraph 4-28.
Rudder
A- 36°+
1
°
LEFT
B-
36
+1
°
RIGHT
B
Flap
FLAP IN NEUTRAL POSITION
WITH RIGGING TOOL INSTALLED
0° NEUTRAL POSITION PER PARAGRAPH 5-36.
10
°
+ 2
°
FIRST NOTCH
TRAVEL
25° + 2° SECOND NOTCH TRAVEL
*30
+ 2
°
THIRD
NOTCH TRAVEL
**40
°
+ 2
°
THIRD NOTCH TRAVEL
* FOR PA-32RT-300
**
FOR PA-32RT-300T
Revised:
9/2/78
SURFACE CONTROLS
1F14
