Piper PA-32RT-300T - Page 174

LANCE II SERVICE MANUAL

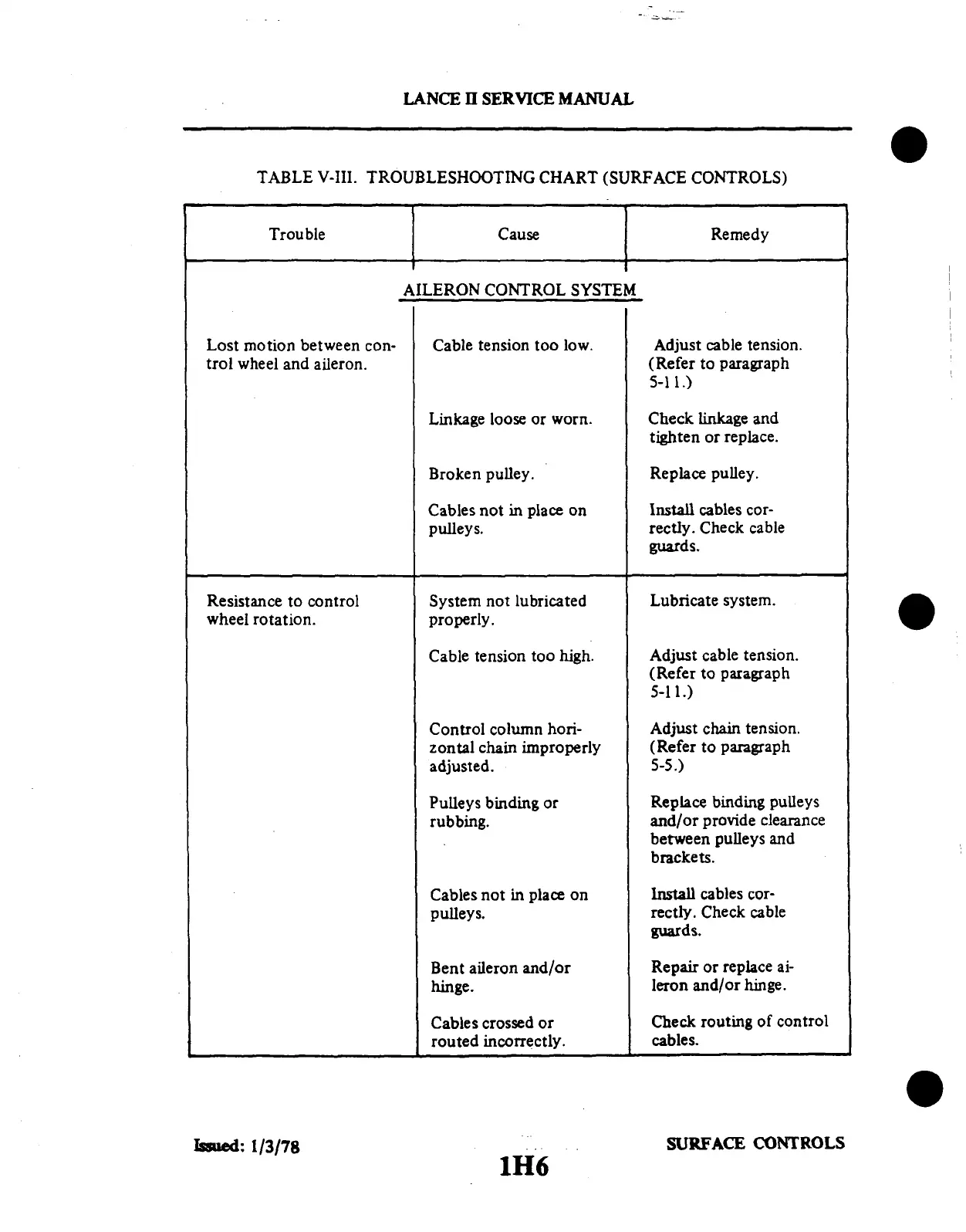

TABLE V-III. TROUBLESHOOTING CHART (SURFACE CONTROLS)
Trouble Cause Remedy
AILERON CONTROL SYSTEM
Lost motion between con- Cable tension too low. Adjust cable tension.
trol wheel and aileron. (Refer to paragraph
5-11.)
Linkage loose
or worn.
Check linkage
and
tighten or replace.
Broken pulley.
Replace
pulley.
Cables
not in place on
Install cables cor-
pulleys.
rectly. Check
cable
guards.
Resistance to control
System not lubricated Lubricate
system.
wheel rotation.
properly.
Cable
tension
too
high.
Adjust
cable
tension.
(Refer to paragraph
5-11.)
Control
column hori-
Adjust chain tension.
zontal
chain improperly
(Refer
to paragraph
adjusted.
5-5.)
Pulleys binding
or Replace
binding pulleys
rubbing.
and/or
provide
clearance
between pulleys and
brackets.
Cables
not in place on
Install cables
cor-
pulleys.
rectly.
Check
cable
guards.
Bent aileron
and/or
Repair or replace
ai-
hinge.
leron
and/or hinge.
Cables
crossed
or
Check
routing
of
control
routed incorrectly. cables.
Issued: 1/3/78
SURFACE
CONTROLS
1H6
