HIGH
PRESSURE
PORT -1
LANCE
II SERVICE MANUAL
GROUND-BLACK
HIGH
PRESS.-BLUE
LOW PRESS.-GREEN
+14
V.D.C.
(ONE
ONLY)
-14 V.D.C.

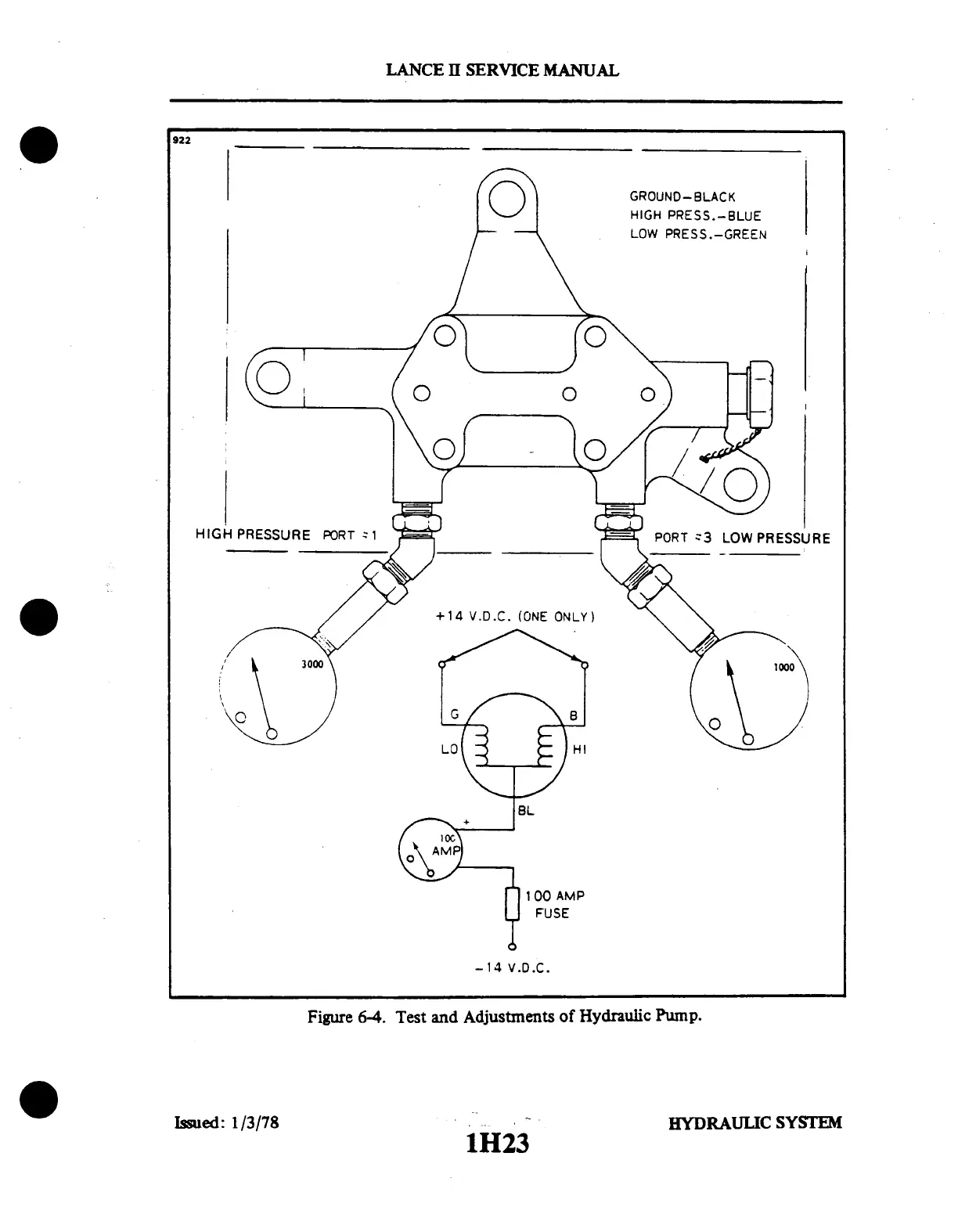

Figure 6-4.
Test and Adjustments
of Hydraulic Pump.
Issued:
1/3/78
1H23
HYDRAULIC
SYSTEM
