11-8625
PLUNGER
ASSEMBLY
GUIDE
-8626
DISTRIBUTOR
BLOCK

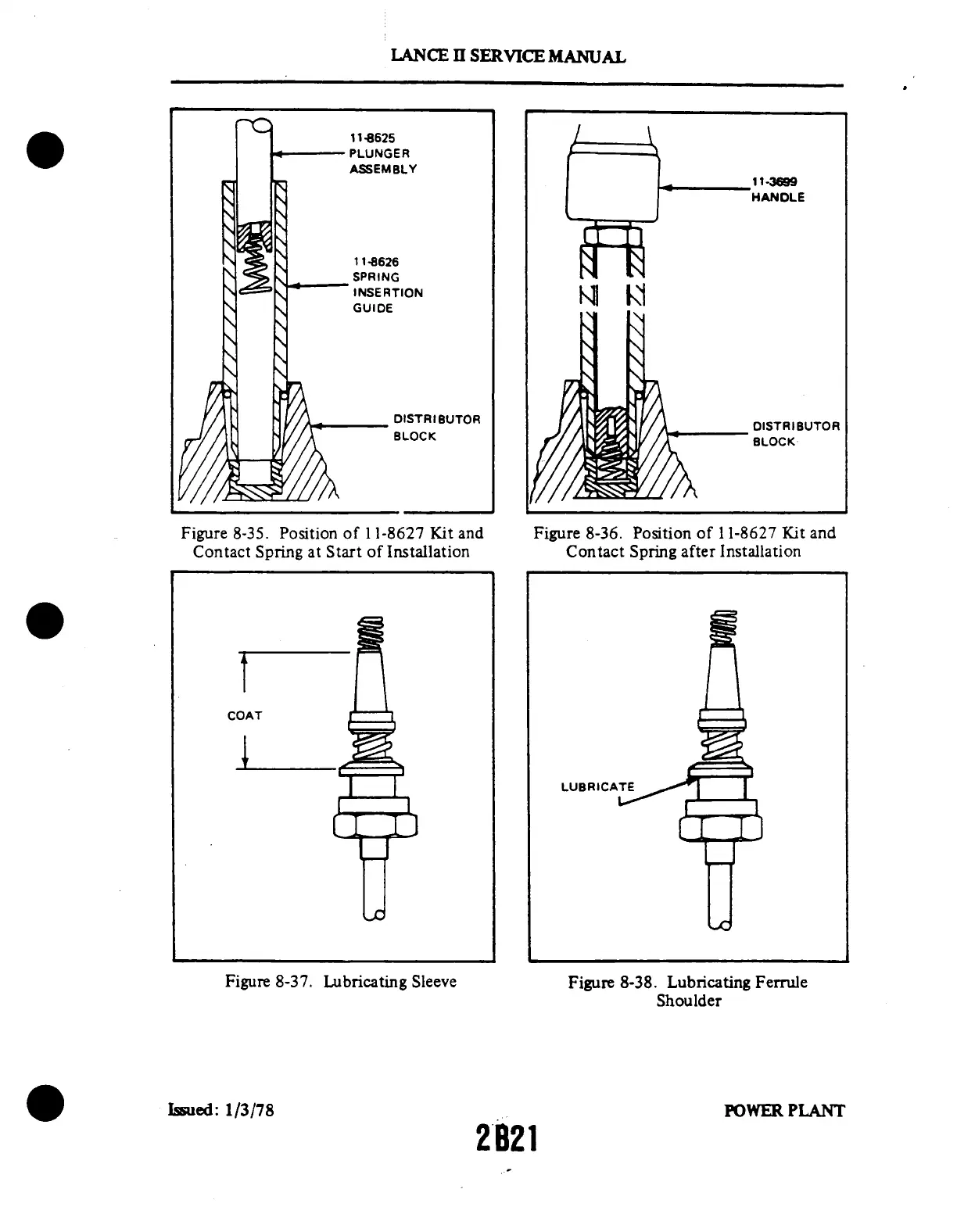

Figure 8-35. Position of 1 1-8627 Kit and
Contact Spring at Start of Installation
COAT
DISTRIBUTOR
BLOCK
Figure
8-36. Position
of 11-8627 Kit
and
Contact Spring after Installation
LUBRICATE
LANCE
IISERVICE
MANUAL
11-3699
HANDLE
Figure
8-37. Lubricating
Sleeve
Issued: 1/3/78
Figure 8-38. Lubricating Ferrule
Shoulder
POWER
PLANT
2B21
