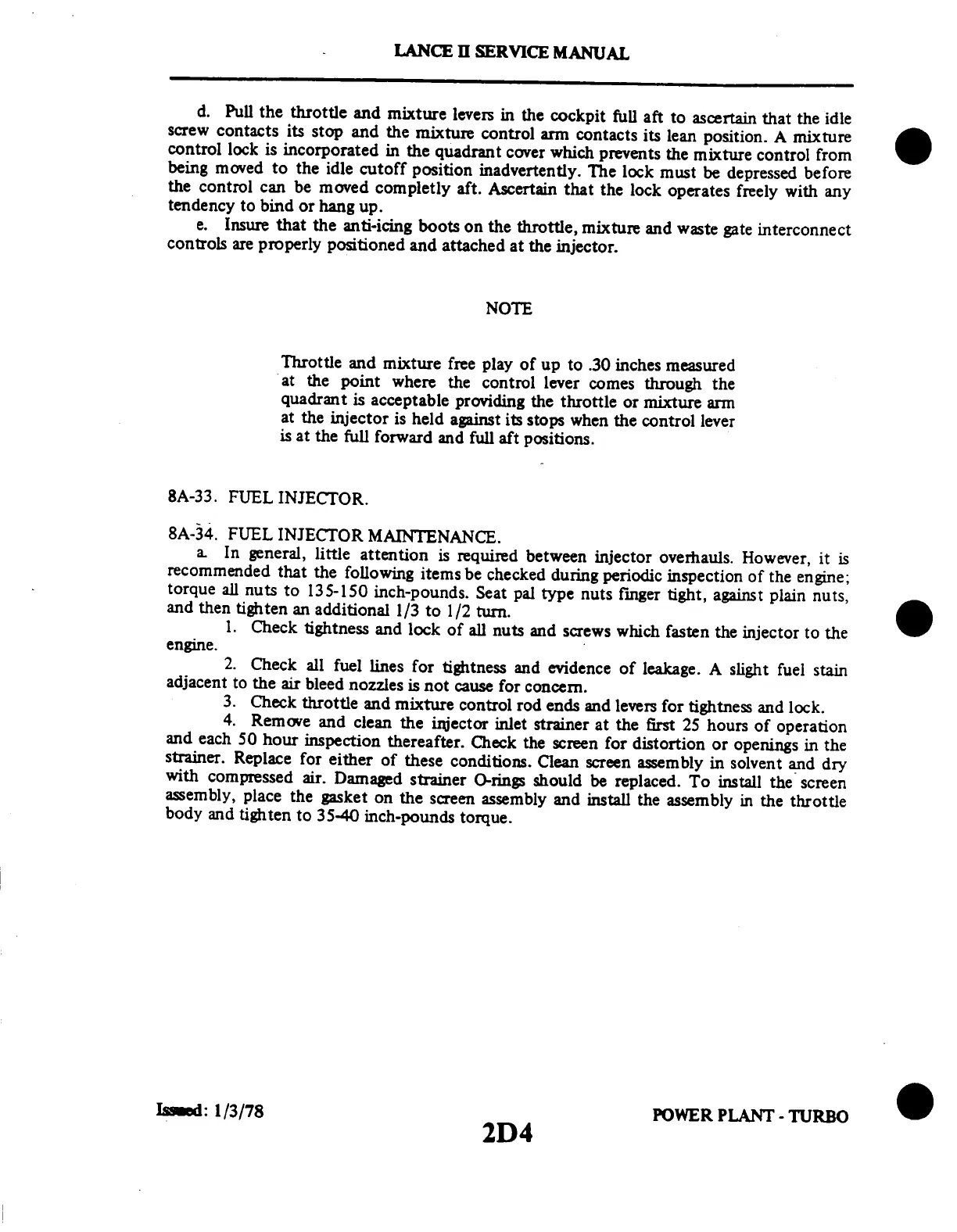

LANCE
II
SERVICE
MANUAL
d.
Pull
the
throttle
and
mixture
levers
in
the
cockpit
full
aft
to
ascertain
that
the
idle
screw
contacts
its
stop
and
the
mixture
control
arm
contacts
its
lean
position.
A
mixture
control
lock
is
incorporated
in
the
quadrant
cover
which
prevents
the
mixture
control
from
being
moved
to
the
idle
cutoff
position
inadvertently.
The
lock
must
be
depressed
before
the
control
can
be
moved
completly
aft.
Ascertain
that
the
lock
operates
freely
with
any
tendency
to
bind
or
hang
up.
e.
Insure
that
the
anti-icing
boots
on
the
throttle,
mixture
and
waste
gate
interconnect
controls
are
properly
positioned
and
attached
at
the
injector.
NOTE
Throttle
and
mixture
free
play
of
up
to
.30
inches
measured
at
the
point
where
the
control
lever
comes
through
the
quadrant
is
acceptable
providing
the
throttle
or
mixture
arm
at
the
injector
is
held
against
its
stops
when
the
control
lever
is
at
the
full
forward
and
full
aft
positions.
8A-33.
FUEL
INJECTOR.
8A-34.
FUEL
INJECTOR
MAINTENANCE.
a.
In
general,
little
attention
is
required
between
injector
overhauls.
However,
it
is
recommended
that
the
following
items
be
checked
during
periodic
inspection
of
the
engine;
torque
all
nuts
to
135-150
inch-pounds.
Seat
pal
type
nuts
finger
tight,
against
plain
nuts,
and
then
tighten
an
additional
1/3
to
1/2
turn.
1.
Check
tightness
and
lock
of
all
nuts
and
screws
which
fasten
the
injector
to
the
engine.
2.
Check
all
fuel
lines
for
tightness
and
evidence
of
leakage.
A
slight
fuel
stain
adjacent
to
the
air
bleed
nozzles
is
not
cause
for
concern.
3.
Check
throttle
and
mixture
control
rod
ends
and
levers
for
tightness
and
lock.
4.
Remove
and
clean
the
injector
inlet
strainer
at
the
first
25
hours
of
operation
and
each
50
hour
inspection
thereafter.
Check
the
screen
for
distortion
or
openings
in
the
strainer.
Replace
for
either
of
these
conditions.
Clean
screen
assembly
in
solvent
and
dry
with
compressed
air.
Damaged
strainer
O-rings
should
be
replaced.
To
install
the
screen
assembly,
place
the
gasket
on
the
screen
assembly
and
install
the
assembly
in
the
throttle
body
and
tighten
to
35-40
inch-pounds
torque.
Issued:
1/3/78
POWER
PLANT
- TURBO
2D4
