Piper PA-32RT-300T User Manual

LANCE
II
SERVICE
MANUAL
in
reverse
polarity.
If
the
battery
is
installed
proper-
ly
and
the
rectifiers
are
open,
test
the
capacitor
with
a
condenser
tester.
11-11.
REMOVING
AND
INSTALLING
RECTIFIERS.
The
use
of
proper
tools
for
the
removal
and
installation
of
rectifiers
cannot
be
over
emphasized.
A
spe-
cial
tool
kit
has
been
developed
to
remove
and
replace
new
rectifiers
without
damage.
NOTE
Only
new
rectifiers
should
be
installed.
It is
not
rec-
ommended
to
reinstall
rectifiers
once
they
have
been
removed.
The
new
tool
kit
can
be
used
on
all
Chrysler
built
alternators.
A
press
is
not
required
when
using
the
new
C-3928
tool
kit
for
removing
or
installing
rectifiers.
Three
diode
rectifiers
are
pressed
into
the
heat
sink
and
three
in
the
end
shields.
The
new
tool
consists
of
a clamp
type
fixture
with
special
adapters.
This
tool
makes
it unnecessary
to
use
a
press.
The
tool
assembly
consists
of
the
following
components:
C-3928
-
Fixutre
and
Adapters
SP-3821
- Removing
Adapter
SP-3818
- Installing
Adapter
SP-3820
-
Installing
Support

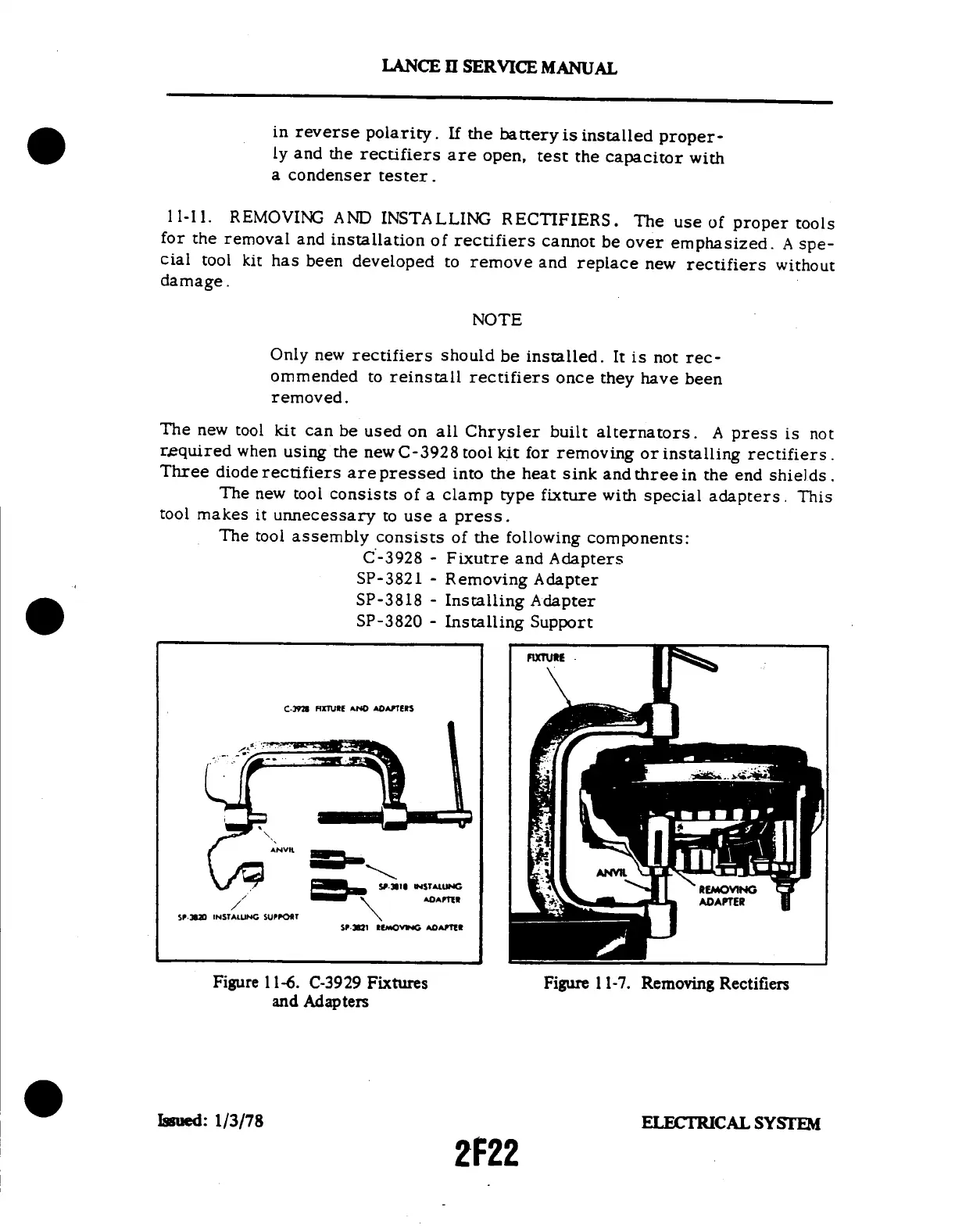

Figure
11-6.
C-3929
Fixtures
and
Adapters
Figure
1 1-7.
Removing
Rectifiers
ELECTRICAL
SYSTEM
Issued:
1/3/78
2F22
