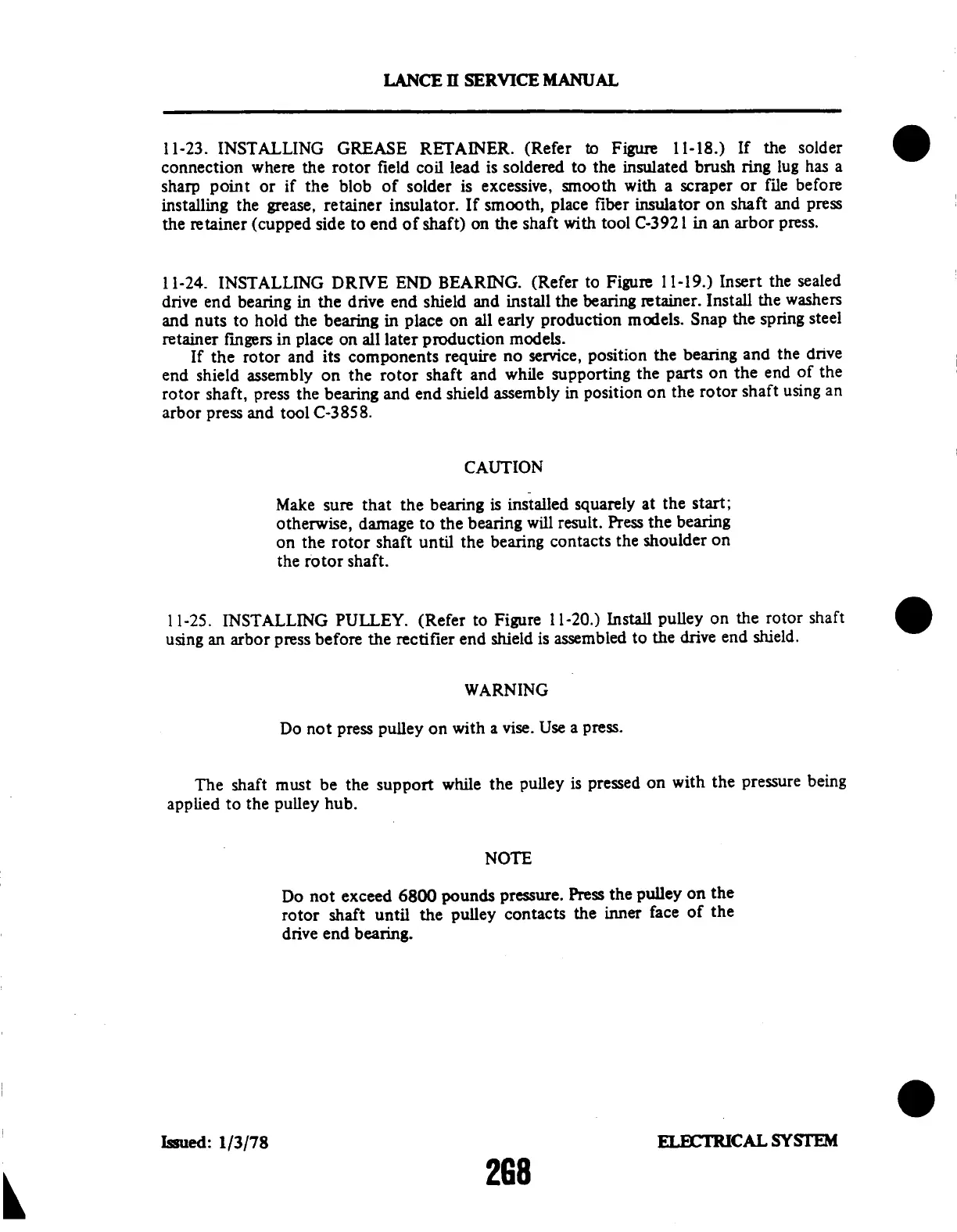

11-23.
INSTALLING
GREASE
RETAINER.
(Refer to
Figure
11-18.)
If the solder
connection
where the
rotor field
coil lead
is soldered
to the
insulated
brush
ring lug has
a
sharp
point
or if the
blob
of solder
is excessive,
smooth
with
a scraper
or file before
installing
the grease,
retainer
insulator.
If
smooth,
place
fiber
insulator
on shaft
and
press
the
retainer
(cupped
side
to end
of shaft)
on the
shaft
with tool
C-3921
in an
arbor
press.
11-24.
INSTALLING
DRIVE
END
BEARING.
(Refer
to
Figure
11-19.)
Insert
the
sealed
drive end
bearing
in
the
drive end
shield
and
install
the
bearing
retainer.
Install
the
washers
and nuts
to hold
the bearing
in place
on all
early production
models.
Snap
the spring
steel
retainer
fingers in
place on all
later production
models.
If the
rotor
and
its components
require
no service,
position
the
bearing
and
the drive
end shield
assembly
on
the rotor
shaft
and
while supporting
the
parts on
the end
of the
rotor
shaft,
press the
bearing
and
end
shield
assembly
in
position
on the
rotor
shaft
using
an
arbor press
and tool C-3858.
CAUTION
Make
sure
that
the bearing
is installed
squarely
at the
start;
otherwise,
damage
to
the bearing
will
result.
Press
the
bearing
on the
rotor
shaft
until
the bearing
contacts
the shoulder
on
the rotor
shaft.
11-25.
INSTALLING
PULLEY.
(Refer
to
Figure
11-20.)
Install
pulley
on
the
rotor
shaft
using
an arbor
press
before
the rectifier
end shield
is assembled
to the
drive
end shield.
WARNING
Do
not press
pulley
on
with
a vise.
Use
a press.
The
shaft
must
be the
support
while
the
pulley
is
pressed
on with
the
pressure
being
applied
to the pulley
hub.
NOTE
Do
not
exceed
6800
pounds
pressure.
Press
the
pulley
on
the
rotor
shaft
until
the
pulley
contacts
the inner
face
of the
drive
end
bearing.
Isued:
1/3/78
ELECTRICAL
SYSTEM
268
