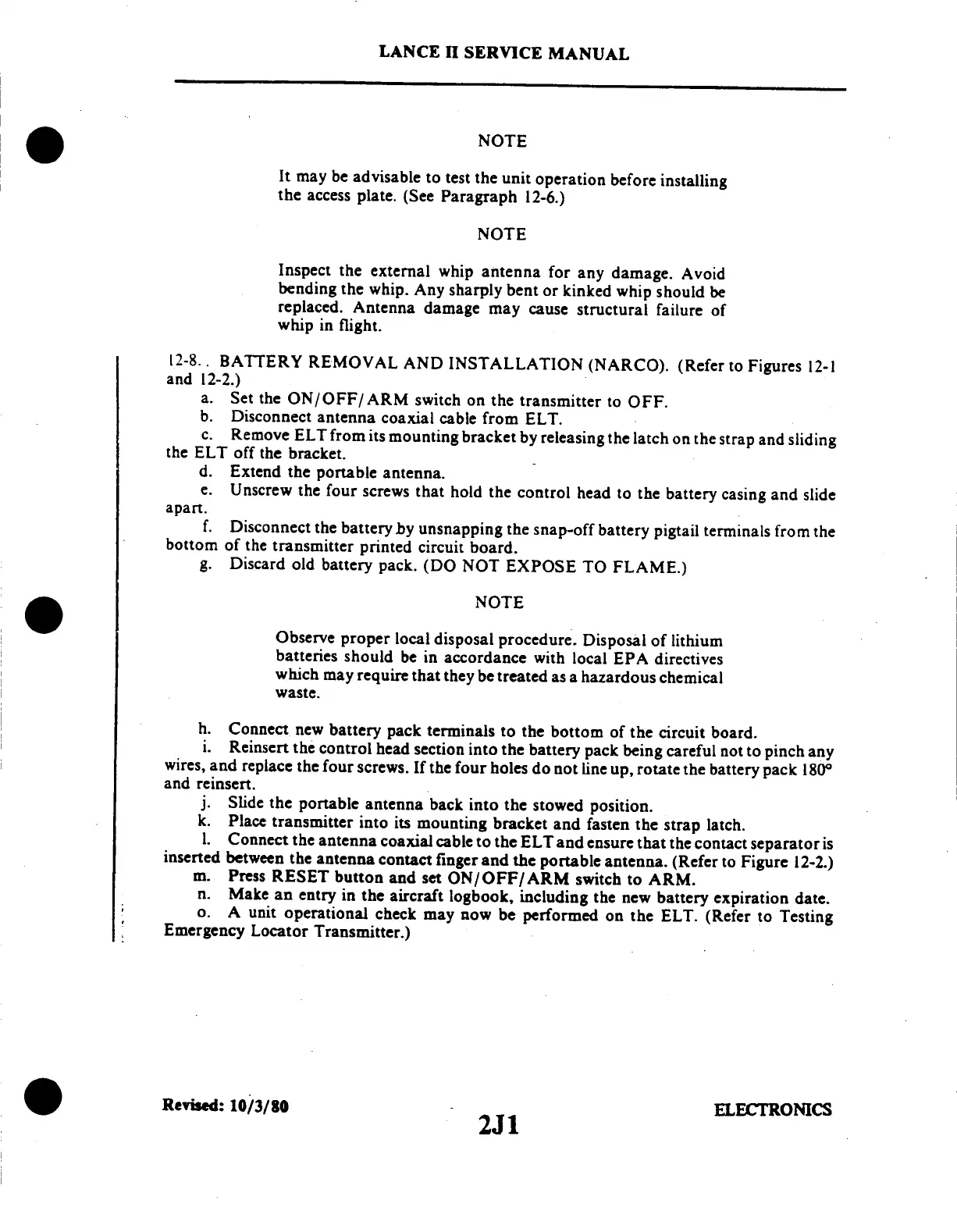

LANCE
IISERVICE
MANUAL
NOTE
It
may
be
advisable
to
test
the
unit
operation
before
installing
the
access
plate.
(See
Paragraph
12-6.)
NOTE
Inspect
the
external
whip
antenna
for
any
damage.
Avoid
bending
the
whip.
Any
sharply
bent
or
kinked
whip
should
be
replaced.
Antenna
damage
may
cause
structural
failure
of
whip
in flight.
12-8..
BATTERY
REMOVAL
AND
INSTALLATION
(NARCO).
(Refer
to
Figures
12-1
and
12-2.)
a.
Set
the
ON/OFF/ARM
switch
on
the
transmitter
to
OFF.
b.
Disconnect
antenna
coaxial
cable
from
ELT.
c.
Remove
ELT
from
its
mounting
bracket
by
releasing
the
latch
on
the
strap
and
sliding
the
ELT
off
the
bracket.
d.
Extend
the
portable
antenna.
e.
Unscrew
the
four
screws
that
hold
the
control
head
to
the
battery
casing
and
slide
apart.
f.
Disconnect
the
battery
by
unsnapping
the
snap-off
battery
pigtail
terminals
from
the
bottom
of
the
transmitter
printed
circuit
board.
g.
Discard
old
battery
pack.
(DO
NOT
EXPOSE
TO
FLAME.)
NOTE
Observe
proper
local
disposal
procedure.
Disposal
of
lithium
batteries
should
be
in
accordance
with
local
EPA
directives
which
may
require
that
they
be
treated
as
a
hazardous
chemical
waste.
h.
Connect
new
battery
pack
terminals
to
the
bottom
of
the
circuit
board.
i.
Reinsert
the
control
head
section
into
the
battery
pack
being
careful
not
to
pinch
any
wires,
and
replace
the
four
screws.
If
the
four
holes
do
not
line
up,
rotate
the
battery
pack
180
°
and
reinsert.
j.
Slide
the
portable
antenna
back
into
the
stowed
position.
k.
Place
transmitter
into
its
mounting
bracket
and
fasten
the
strap
latch.
1.
Connect
the
antenna
coaxial
cable
to
the
ELT
and
ensure
that
the
contact
separator
is
inserted
between
the
antenna
contact
finger
and
the
portable
antenna.
(Refer
to
Figure
12-2.)
m.
Press
RESET
button
and
set
ON/OFF/ARM
switch
to
ARM.
n.
Make
an
entry
in
the
aircraft
logbook,
including
the
new
battery
expiration
date.
o.
A
unit
operational
check
may
now
be
performed
on
the
ELT.
(Refer
to
Testing
Emergency
Locator
Transmitter.)
Revised:
10/3/80
ELECTRONICS
2J1
