FUEL INPUT
RATING:
1.1 KG/H
(2.4 LB/H)
INDEX
W : WHITE
Y : YELLOW
P : PURPLE
R : RED
K : BLACK
S : SILVER
P
P
R
Y
Y
YP
K
K
W
G
W
W
W
R R
WW
W
W
YY
K
W
IGNITER ASSEMBLY /
HD CARTRIDGE HEATER
200W, 120V, 1.6 AMP
0.375” X 5.000”
BURN POT
DRAFT FAN
120V, 60HZ,
0.45 AMP, 1 PHASE
GROUNDED
POWER CORD
VW-1, 105°C/221°F,
18-3 STANDARD CSA
AUGER MOTOR
& FEED SYSTEM
120V, 60HZ, 0.45 AMP,
2 RPM MOTOR
GROUND
TEMPERATURE
PROBE
TEMPERATURE PROBE
SPADE CONNECTORS
FAST-BLOW FUSE
5 AMP

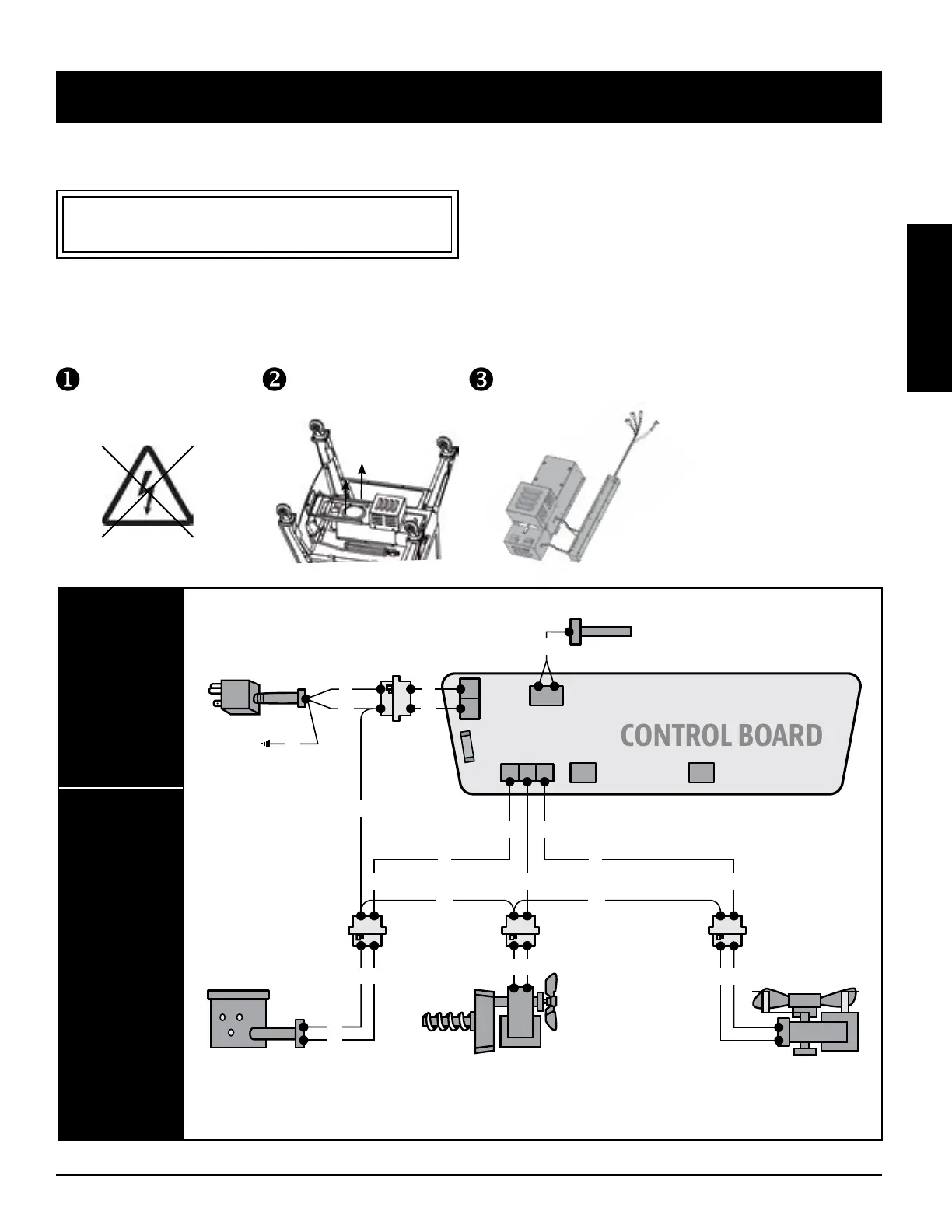

CONTROL BOARD
  
The Control Board system is an intricate and valuable piece of technology. For protection from power surges and electrical shorts,
consult the wire diagram below to ensure your power source is sufficient for the operation of the unit.
PB – ELECTRIC REQUIREMENTS
120V, 2.1AMP, 60HZ, 250W, 3-PRONG GROUNDED PLUG
: Electrical components, passed by product safety testing and
certification services, comply with a testing tolerance of ± 5-10 percent.
REMOVE TWO GREASE
TRAY BRACKETS FROM
UNDERSIDE OF UNIT.
ACCESS WIRING
COMPONENTS.
DISCONNECT POWER
SUPPLY BEFORE SERVICE
OR MAINTENANCE.
