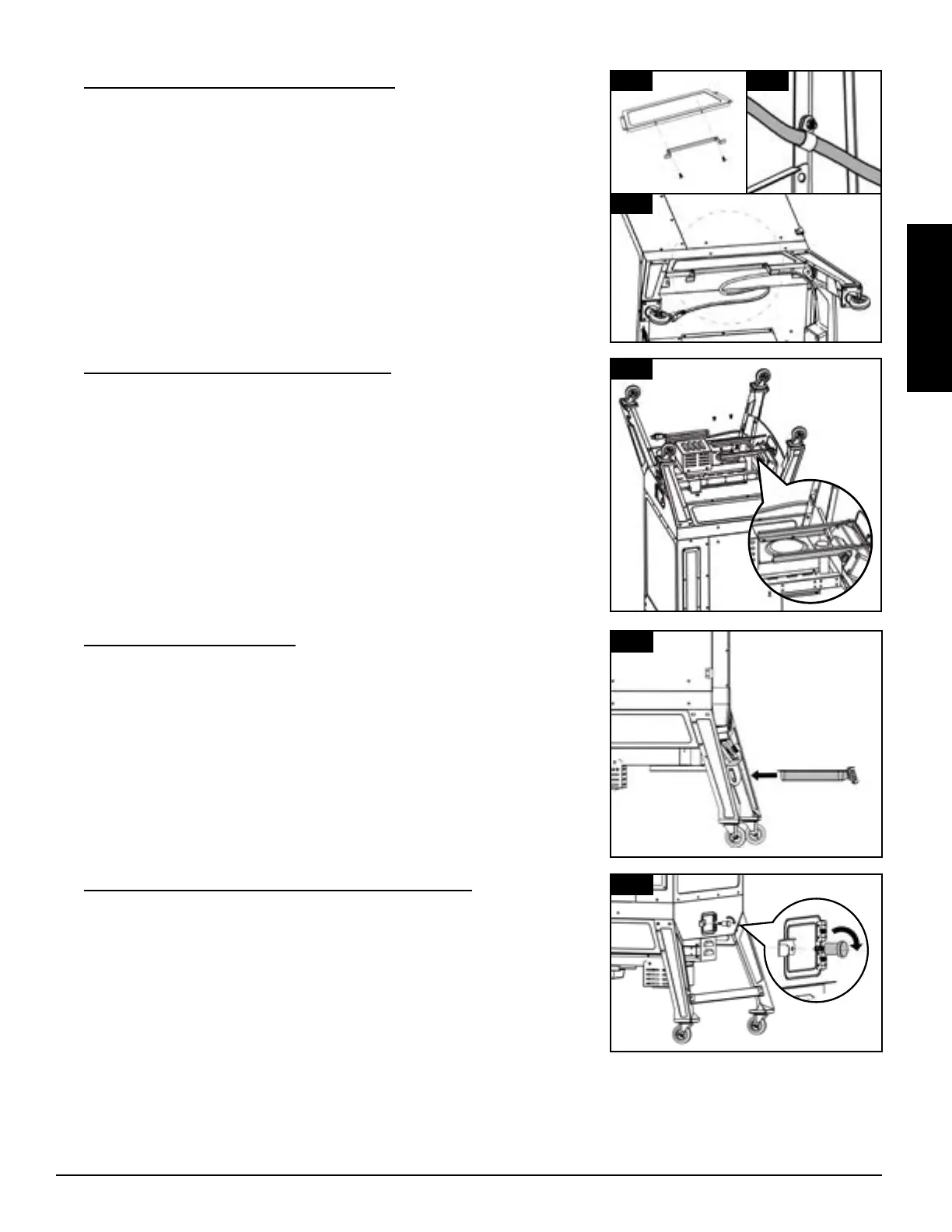

Parts Required:
1 x Power Cord Bracket
(#9)
2 x #10–24x½" Screw (
#D)
Installation:
• Locate the two holes on the bottom of the (left side) support bracket.
Mount the power cord bracket to the support bracket using two
screws as shown in 7.
• Next, loosen the nut on the pre-mounted clip bracket and guide the
power cord through the clip bracket. Once through, tighten the nut,
and wrap the power cord on the bracket until unit is in use. Note 7, 7.
8.
Parts Required:
2 x Grease Tray Brackets
(#17)
4 x #10–24x½" Screw (
#D)
Installation:
• Secure the grease tray brackets onto the base of the auger housing using
two screws in each bracket. Note illustration for proper placement.
NOTE: The diveted end of the brackets should face the control board.
• Fully-tighten all screws on the cart base. Next, carefully turn the unit
into an upright position, with the wheels are on the bottom.
9.
Parts Required:
1 x Grease Tray
(#15)
Installation:
• Slide the grease tray into the grease tray brackets on the front
underside of the main cabinet, under the control board.
NOTE: The grease tray is completely inserted once the front of the
tray is pushed in as far as it can go, with no gap between the grease
tray and the front panel.
10.
Parts Required:
1 x Door Knob
(#A)
Installation:
• Attach the door knob to the hopper clean-out door by rotating the
part into the hole on the door. Rotate until completely fastened and
clean-out door latch is secured.
NOTE: To use the hopper clean-out feature, simply loosen the door knob,
raise the clean-out door latch and open the door.
