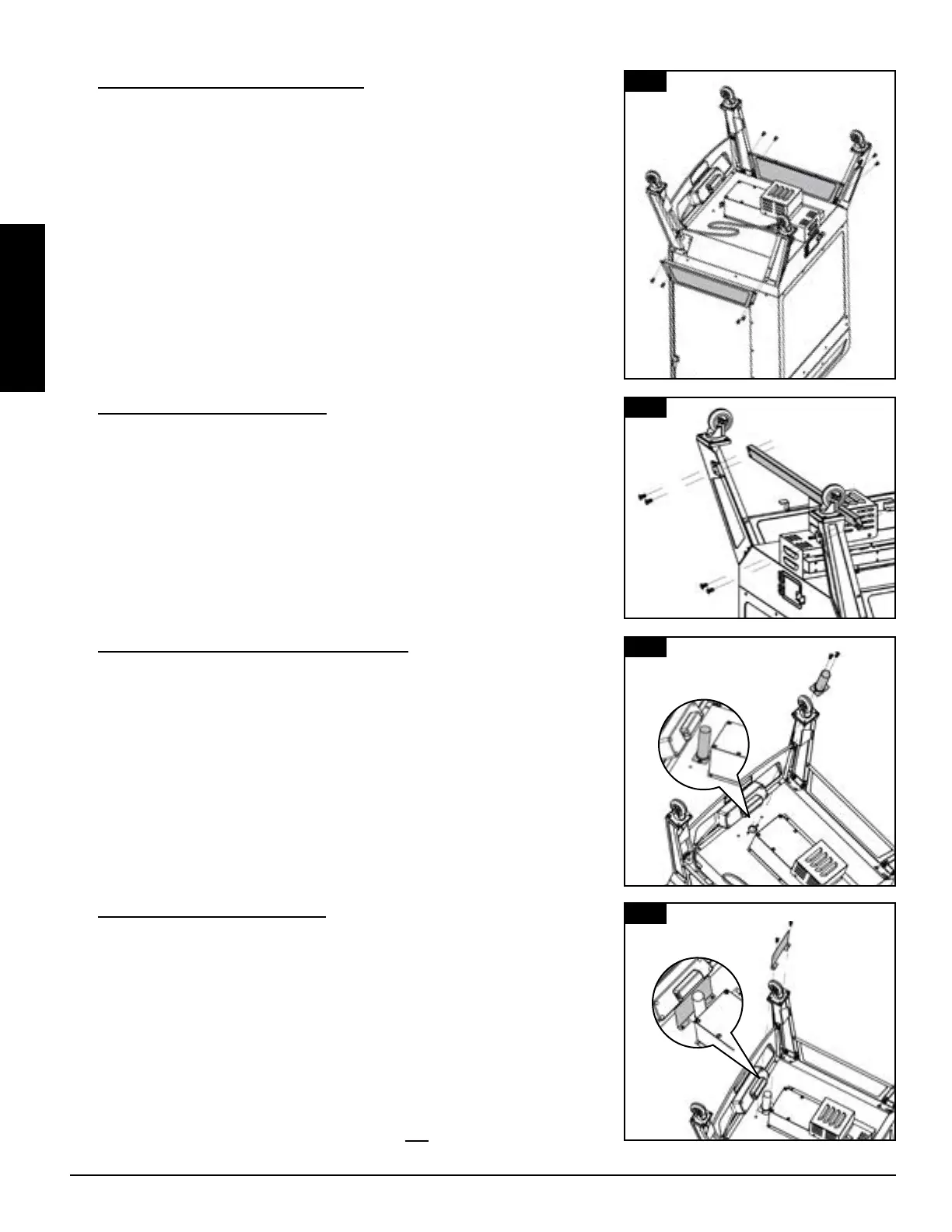

3.
Parts Required:
2 x Support Panel
(#10)
8 x #10–24x½" Screw (
#D)
Installation:
• Install one support panel to the side of the unit between a front and
back support leg. Secure using two screws on each side. Ensure the
flat side of the support plate is facing outwards. Repeat the same
installation to mount the other support panel. Note illustration for
support panel arrangement.
NOTE: The support panel with two holes along the bottom should
be on the same side of the unit as the power cord exits the control
board (left side). This is important for later steps.
4.
Parts Required:
1 x Support Bar
(#11)
4 x #10–24x½" Screw (
#D)
Installation:
• Install the support bar to the rear of the unit between the two rear
support legs. Secure using two screws on each side. Ensure the support
bar is placed on the underside of the main cabinet, facing inwards.
Note illustration for support bar arrangement.
5.
Parts Required:
1 x Grease Exhaust Tube
(#16)
2 x #10–24x⅓" Screw (
#E)
Installation:
• Mount the grease exhaust tube to the underside of the main cabinet
using two screws.
IMPORTANT: Ensure there is a good seal to the main cabinet, as grease
will come from the main cabinet, flow through the exhaust tube, and
exit into the grease tray.
6.
Parts Required:
1 x Heat Shield
(#18)
2 x #10–24x½" Screw (
#D)
Installation:
• Position the heat shield between the control board and the grease
exhaust tube. Secure using a screw on each side.
IMPORTANT: If this part is not installed correctly, the heat and/or splatter
from the grease exhaust tube may cause damage to the control board.
Grease damage to the rear of control board is not covered by warranty.
5
6
4
3
10
10
11
16
18
To Next Page
