Pixsys ATR 142 User Manual

8 - ATR142 - User manual
Supply
Power supply
24..230 Vac/Vdc +/-15%
50/60Hz
Power consumption
4.6VA
3.3 Software Features
Regulation
algorithms
ON-OFF with hysteresis.
P, PI, PID, PD with proportional time
Proportional
band
0...9999°C or °F
Integral time 0,0...999,9 sec (0 excluded)
Derivative time 0,0...999,9 sec (0 excluded)
Controller
functions
Manual or automatic Tuning, confi gurable
alarms, protection of command and alarm
setpoints, activation of functions via
digital input, preset cycle with Start/Stop.

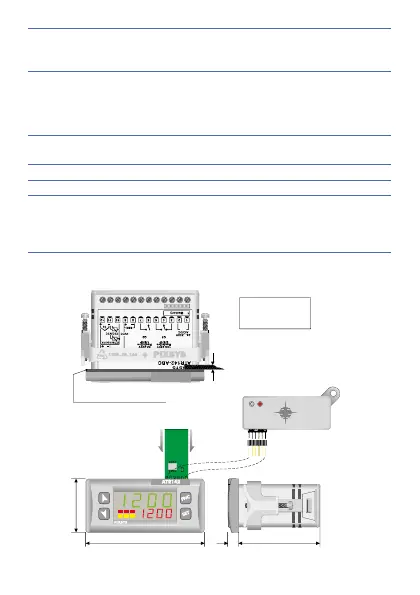

4 Dimensions and Installation
U1
C1
CN1
1 6
123
Dima di foratura
28.5 x 70.5 mm
Frontal panel cut-out
Spessore suggerito
2 ÷ 8 mm
Suggested thickness
77 mm
35 mm
53 mm
7
42mm
inserimento
Memory Card
42mm
insert
Memory Card
PIXSYS
Memory Card (optional)
with battery
Memory Card (optional)
Cod. MEMORY 2100.30.005
Cod. MEMORY 2100.30.003
Guarnizione per 32x74
Cod. 1600.00.082 (optional)
Gasket for 32x74

Pixsys ATR 142 Specifications

General

Brand	Pixsys
Model	ATR 142
Category	Controller
Language	English
