User manual - ATR142- 13
6 Configuration EASYUP
To simplify the setting of parameters and the integration of
the different components involved in the control system,

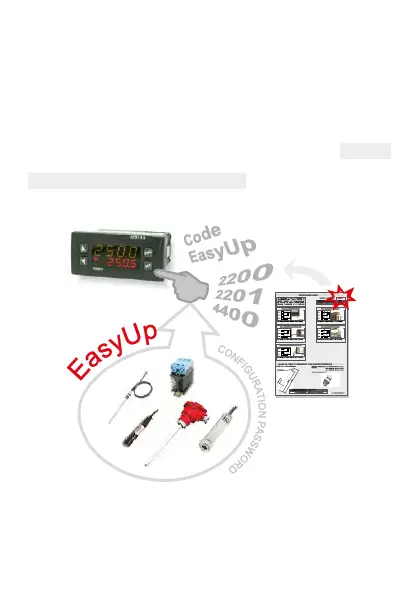

Pixsys introduces the EASY-UP coding which allows to set
sensors and/or command outputs in a single step.
By means of the code listed in the data sheet enclosed
to the sensor or actuator (SSR, motorized valve etc..) the
EASY-UP coding will set the relevant main parameters on
the controllers (ex. selection of PT100 on parameter “Sensor”
and the corresponding measuring range on parameters
“Lower and Upper limits of setpoint”).
Different codes may be entered on the controllers in sequence
to configure inputs, control output or retransmission of signal.
