12 - ATR142 - User manual

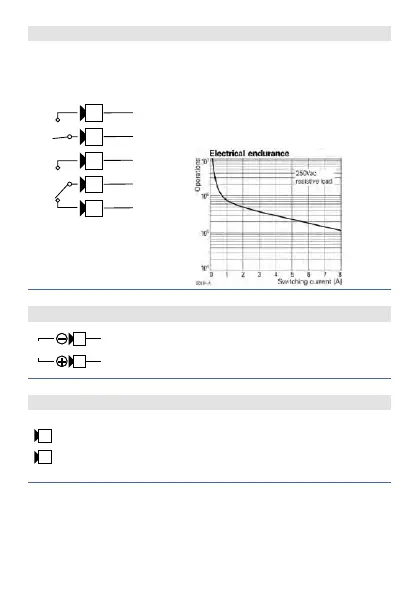

5.1.e Relay Q1 Output
7 6 5 4
Q1
Q2
3
Capacity:
• Q1: 8A, 250Vac,resistive loads,10
5
operations. 30/3A, 250Vac, cosφ=0.3,
10
5
operations.
• Q2: 5A, 250Vac, resistive loads, 105
operations. 20/2A, 250Vac, cosφ=0.3,
10
5
operations.
5.1.f SSR output
SSR
8 9
SSR command output 12V/30mA
5.1.g Digital Input
10 11
Digital input according to parameter
DGT.i .
The use of digital input in this version is
possible only with TC sensors or 0..10V,
0/4..20mA and 0...40mV signals

Pixsys ATR 142 Specifications

General

Brand	Pixsys
Model	ATR 142
Category	Controller
Language	English
