26 - ATR227 - User manual

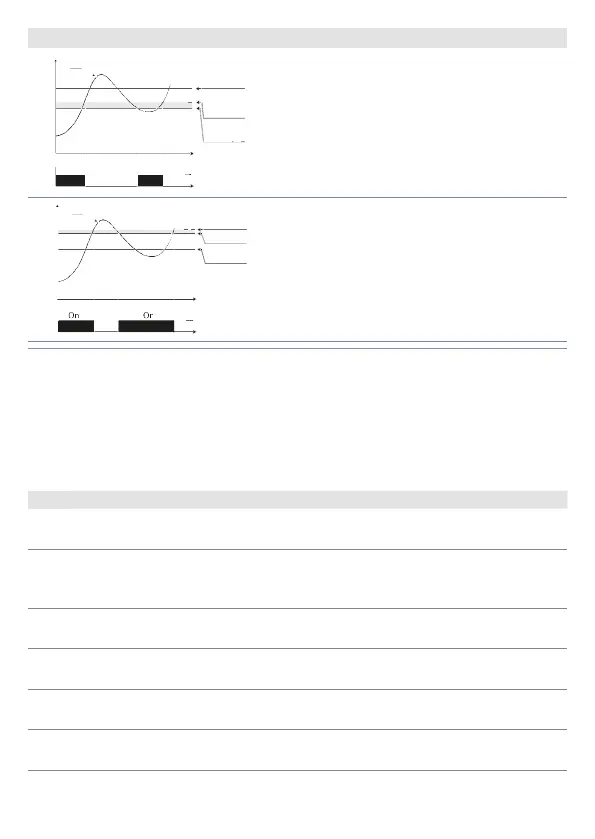

Lower Deviation Alarm (L. d . a L. selection)
1
Pv
Comand Spv
Alarm Spv
O O
On On
Hysteresis
parameter
> 0
Time
Alarm
output
Lower deviation alarm value of alarm
setpoint greater than “0” and hysteresis
value greater than “0” (Par.29
A.1.HY.
> 0).**
2
Pv
Comand Spv
Alarm Spv
O O
Hysteresis
parameter
> 0
Time
Alarm
output
Lower deviation alarm value of alarm
setpoint less than “0” and hysteresis
value greater than “0” (Par.29
A.1.HY.
> 0).**
** a) The example refers to alarm 1; the function can also be enabled for alarm 2 .b) With hysteresis value less
than “0” (
A.1.HY.
< 0) the dotted line moves over the alarm setpoint.
11 Table of Anomaly Signals
If installation malfunctions, controller will switch o regulation output and report
the anomaly. For example, controller will report failure of a connected thermocouple
visualizing
e-05
( ashing) on display 1 and
prb.
(sensor) on display 2. For other signals,
see table below.
Cause What to do
E-01
EEP.E
Error in EEPROM cell programming. Call Assistance.
E-02
SYS.E
Cold junction sensor fault or room
temperature outside of allowed
limits.
Call Assistance.
E-03
MEM.E
Error in Memory card programming. Repeat Memory card programming.
E-04
EEP.E
Incorrect con guration data.
Possible loss of calibration values.
Check if the con guration parame-
ters are correct.
E-05
prb.
Thermocouple open or temperature
outside of limits.
Check the connection with the
sensors and their integrity.
E-08
SYS.E
Missing calibration data. Call Assistance.
