Pixsys ATR227 Series - Dimensions and Installation; Electrical Wirings

User manual - ATR227 - 7

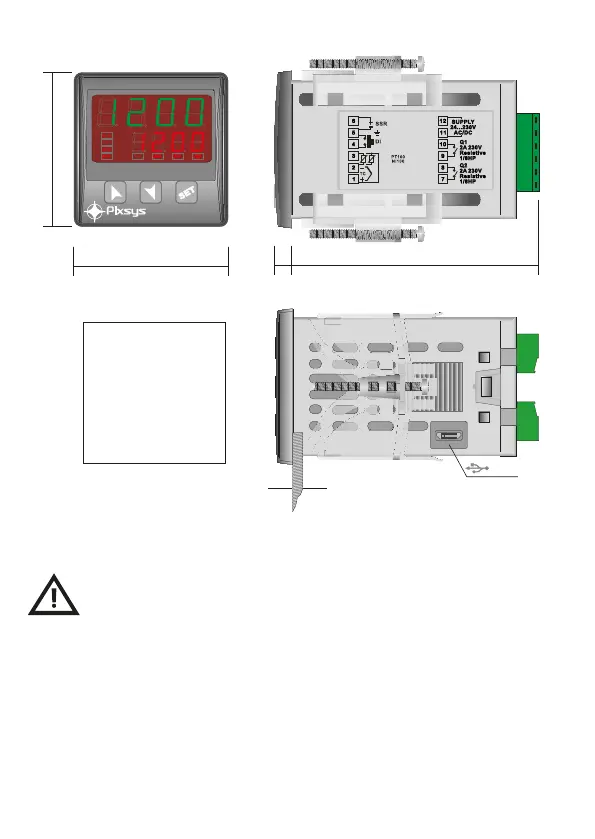

4 Dimensions and Installation
51 mm
51 mm
90 mm
7
MAN TUN REM
C 1
A 1
A 2
PTC
NTC
Dima di foratura
46 x 46 mm
Frontal panel
cut-out
T
rou de panneau
Spessore suggerito 2 ÷ 6 mm
Suggested thickness 2 ÷ 6 mm
USB
ATR227
5 Electrical wirings
Although this controller was designed to resist electromagnetic interferences
in industrial environments, please observe following safety guidelines:
• Separatethecontrollinefromthepowerwires.
• Avoidproximityofremotecontrolswitches,electromagneticcontactors,powerful
engines and in all instances use specic lters.
• Avoidproximityofpowergroups,especiallythosewithphasecontrol.
